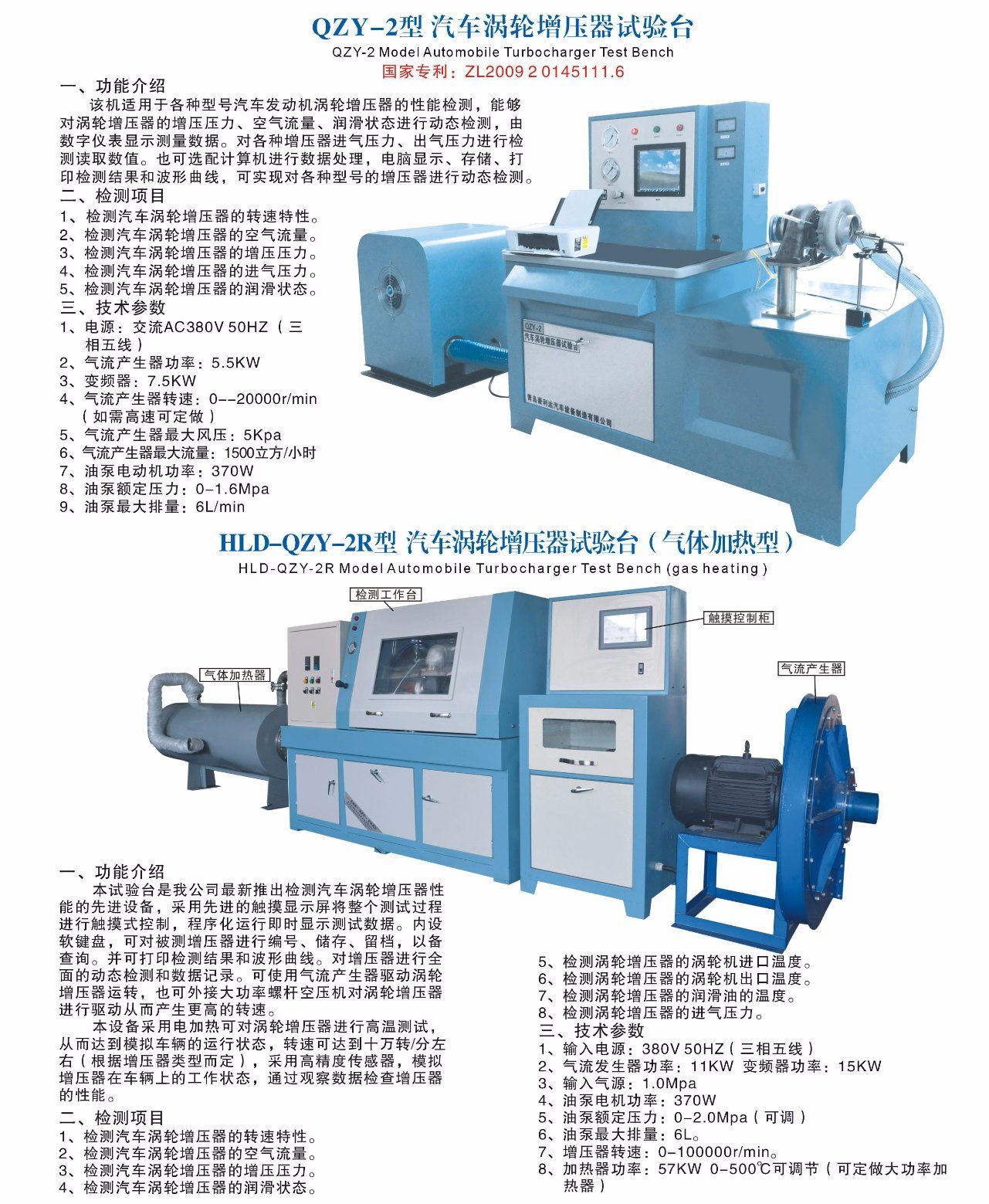

QZY-2C Model Computer Control Automobile Turbocharger Test Bench

Character:
This test bench is applicable for testing the performance of turbochargers on various models of vehicles and can carry out dynamic test of boost pressure, air flow and lubrication state of turbocharger.
It can also carry out contrast test of inlet & outlet air pressure difference of various turbochargers.
QZY-2C model turbocharger test bench is matched with advanced touch screen computer to process the test data, store and print test results and graphs.

Test items:

Test the speed of turbocharger
Test the air flow of turbocharger
Test the boost pressure of turbocharger
Test inlet pressure of turbocharger
Test the lubrication state of turbocharger

Technical Parameter:
Power source: AC380V 50HZ
Power of airflow generator: 5.5KW
Frequency converter power: 7.5KW
RPM of airflow generator: 0--20000r/min
Maximum air pressure of airflow generator: 5KPa
Maximum flow rate of airflow generator: 1500m³/h
Power of oil pump motor: 370W
Rated pressure of oil pump: 0-1.6MPa
Maximum displacement of oil pump: 6L/min

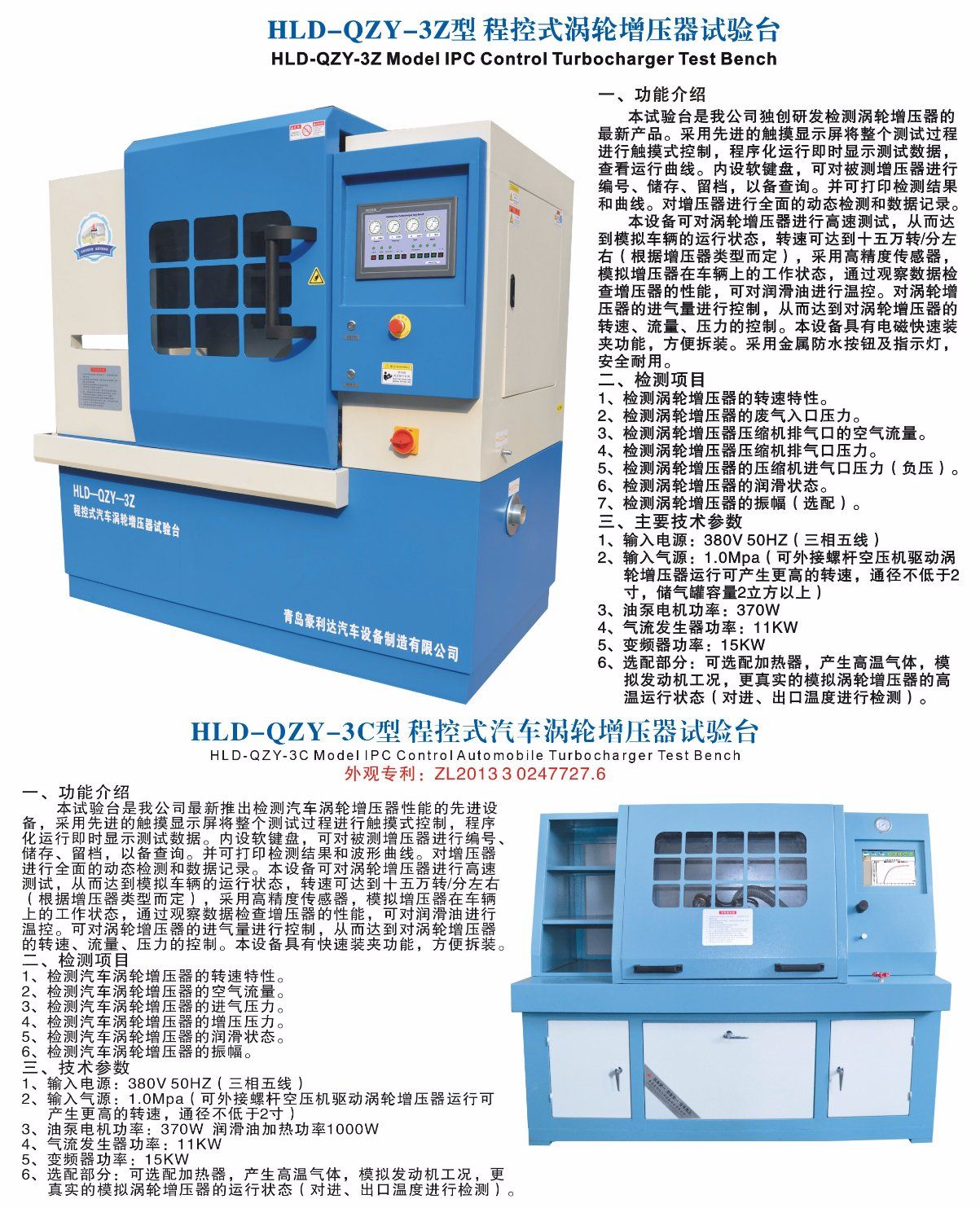

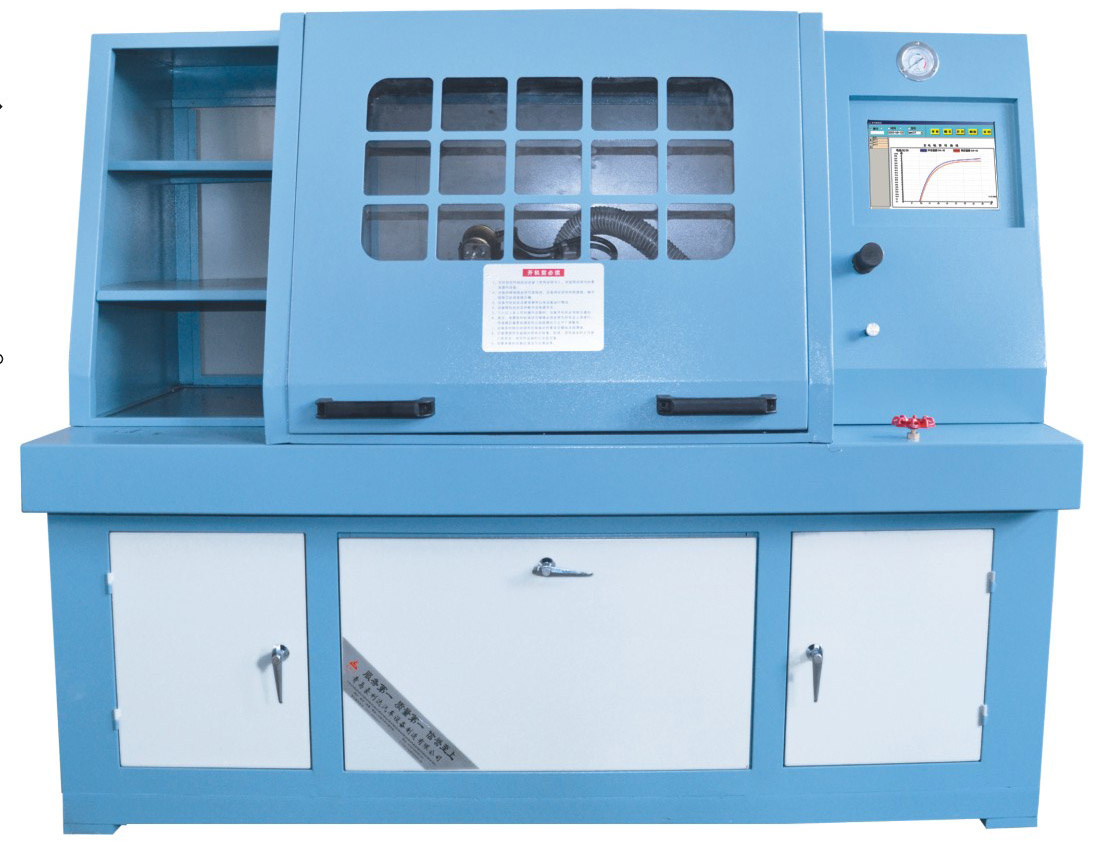

QZY-3Z Model Turbocharger Test Bench

Character:
1.It is a the newest test bench we design to test the performance of the turobchargers, it adopts advanced PLC touch screen computer to control the test process, and display the test results and curves timely. Soft keyboard inside, it can number, store and follow up the test results, and print the test results and curves with a printer. It can make a comprehensive dynamic test and data record to the turbochargers.
2.This test bench can use air flow generator to drive the turbocharger run, or use bigger power screw compressor to drive the turbocharger and reach higher speed.
3.This test bench can do high speed test to the turbocharger, and make it simulate the running state on the vehicle, the speed can reach one hundred fifty thousand RPM ( it depends on the types of the turbocharger), it uses high-precision sensors, simulate the turbocharger working state on the vehicle, and observe the performance of the turbocharger by reading the datas, it can control the lubrication oil temperature.
4.It can control the air inflow of the turbocharger to control the speed, flow and pressure of the turbochargers.
5.This test bench is with electromagnetism quick clamping, it is convenient to install and dismounting from the test bench.
6.It adopts metal water-proof buttons, indicators, it is safe and durable.
Test items:

Test the speed of the turbocharger
Test the turbine inlet pressure of the turbocharger
Test the compressor discharge flow of the turbocharger
Test the compressor discharge pressure of the turbocharger
Test the compressor inlet pressure of the turbocharger (negative pressure)
Test the lubrication state of the turbocharger
Test the vibration of the turbocharger (optional)

Technical parameter:

Input power: 380V 50Hz
Input air source: 1.0Mpa ( the test bench can be connected with a screw air compressor to drive the turbocharger to make it run at a higher speed, the diameter is not less than 2inches, the air tank capacity is more than 2M3)
The oil pump motor power: 370W
Airflow generator power: 11KW
Frequency converter power: 15KW
Optional parts: heater is optional, to generate high temperature gas, simulate the working state of the engine, to simulate in actual the high temperature running state of the turbocharger (test the inlet and outlet temperature).

Prod Model:	QZY-2C
Certification:	ISO
Update Method:	by Hard Disk
