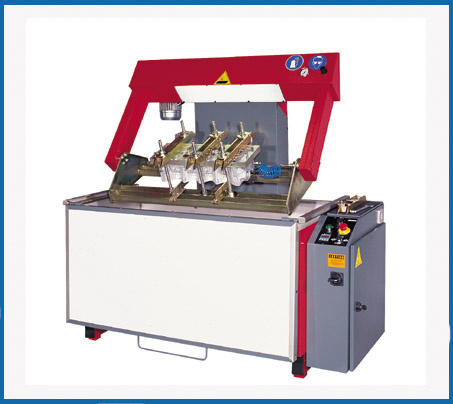

Cylinder Head Pressure Tester

Cylinder Head Pressure Tester
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Contact Supplier
Showroom Product Company Profile

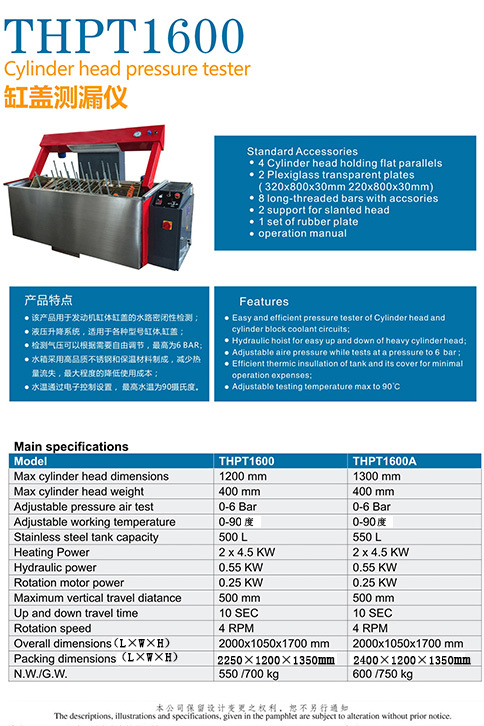

Pressure Tester:
Model:TPT1600

Easy and efficient pressure test of cylinder head and cylinder block coolant circuits. Quick and easy clamping system allowing tests at a pressure of 4 to 5bar.

* 360° Electric powered roll-over fixture.
* Hydraulic cradle lift for easy positioning of heavy cylinder heads.
* Stainless steel tank with heat barrier.
* Heating elements: two changeover 4500 Watts elements.
* Water level control.
* Low voltage: 24V operating control.
* Electronic adjustable thermostat.
* Heating programmer: daily or weekly.

Characteristics

CharacteristicsTPT 1600TPT 1600L
Maximum length (mm/inch)1250 mm / 49"1350 mm / 53.15"
Maximum width (mm/inch)400 mm / 15.74"425 mm / 16.73"
Maximum height (mm/inch)300 mm / 11.81''300 mm / 11.81''
Capacity of stainless steel tank500liters / 132 USngal550liters / 132 USngal
Heating elements (kw)2x4.5 kw2x4.5 kw
Hydraulic hoist (kw)0.55 kw0.55 kw
Gear-motor (kw)0.25 kw0.25 kw
Rotational speed (tr/min)4 tr/min4 tr/min
Up and down travel time (mm/inch in 10sec)600mm/23.62 inch600mm/23.62 inch
Thermostat ( °C )0-90 °C0-90 °C
Power supply3x220V-AC-60Hz or 3x380V-AC-50Hz3x220V-AC-60Hz or 3x380V-AC-50Hz
Net weight approx (kg/lbs)480/1058480/1058
Overalldimension:
Length(mm/inch)2000 mm / 78.75"2100 mm / 82.68"
Width (mm/inch)1050 mm / 41.34"1050 mm / 41.34"
Height (mm/inch)1700 mm / 66.93"1700 mm / 66.93"


Prod Model: THP1600, TPT1200, TPT-1600
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification: ISO
Type: Pressure Tester
We mainly export automobile maintenance and repair equipments and engine rebuilding machines, such as following:

I. GARAGE EQUIPMNETS
1. Tire changer/ wheel balancer;
2. Nitrogen producing& inflator for tires
3. Car lifts
4. Spray booth/ infrared varnish-baking light series
5. Fuel injection pump test bench
6. Universal collision repair system
7. Four-wheel alignment
8. Auto air-conditioner service machnes
9. Spot welding machine /CO2 protection welding machine
10. Auto parts cleaners series
11. Other equiments

II. ENGINE REBUILDING MACHINES
1. Brake lathe or brake drum/disc cutting machines
2. Valve seats boring machine
3. Cylinder block grinding & milling machine
4. Cylinder fine boring machines
5. Cylinder line boring machines
6. Cylinder body bush boring machine
7. Vertical cylinder honing machine
8. Con-rod boring and grinding machine
9. Crankshaft grinding machines
10. Flywheel & Clutch Plate Grinding Machine
11. Valve grinding machines
12. Brake shoe riveting machines

III. OTHER MACHINES
1. Hydraulic press brake
2. Shearing machines
3. Lathe machines

Welcome to your inquiries, and we're expecting to work with you
