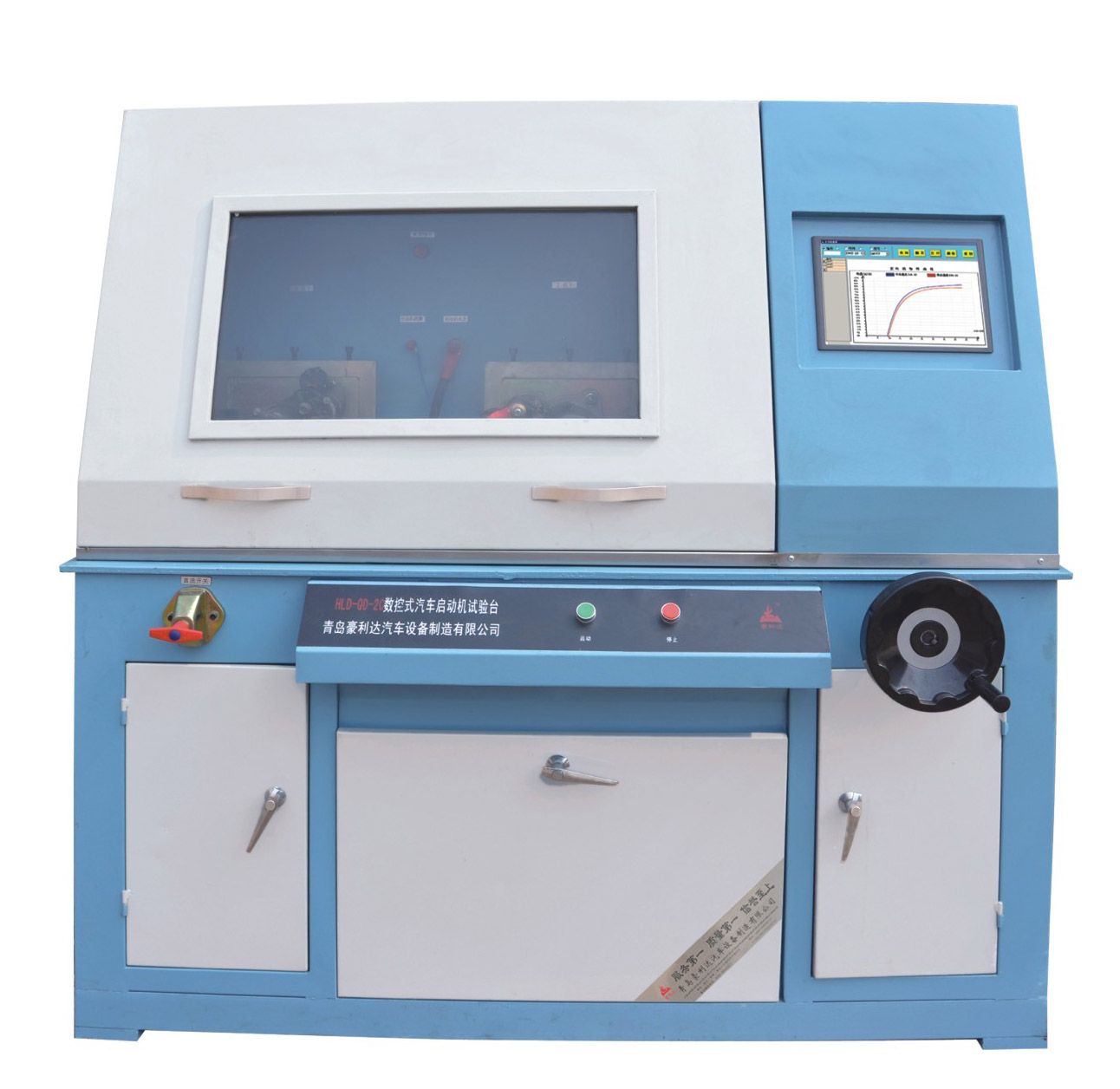

Ipc Control Automobile Starter Test Bench

Name: Ipc Control Automobile Starter Test Bench
Brand: ibuyautoparts.com
SKU: 835823275
Availability: InStock
Rating: 4.5 (65 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

haracter:
This test bench adopts advanced touch screen computer to control the test process, and display the test results and curves timely. Soft keyboard inside, it can number, store and follow up the test results, and print the test results and curves with a printer. It can make a comprehensive dynamic test and data record to the alternator.
There are four different modular fluted disc and clamps on the test bench, covering almost all kinds of the fluted disc moudle of starter, can switch the moudle with one key, it solves the trouble to change the fluted disc, the whole test process can be finisehd with one key operation, relieve the labour intensity and improve the working efficiency.
This test bench can test the voltage, current, speed, power and torque of the starter.
Built-in high precision DC constant voltage power supply, the voltage can be adjsuted randomly from 0-30V, simulate the capacity and voltage classes of different storage battery.
The test bench can automatically make rated power test and stall braking test, built-in servo control device, can test the power and torque of the starter precisely.
Test items:

Test no-load performance of the starter: no-load current, voltage and speed
Test load performance of the starter: load voltage, current, troque and speed
Test braking performance of the starter: braking voltage, current and torque
Test electromagnetic coil of the starter: absorb-pull voltage and current

Technical parameter:

Input power source: 380V 50Hz two phase
Working power supply of the starter: 0-30V (adjustable randomly, constant voltage and current)
Working power capacity of the starter: 15KVA
Max working current of the starter: DC 2000A (braking)
Torque test of the starter: 0-200N.m
Air pressure set: 0-1.0Mpa
Starting time of the starter: 0-9.9S (set randomly)
Starter braking: serve motor control device (automatically)
Power range of the starter: 0-15KW
Speed range of the starter: 0-12000r/min

Prod Model:	QDS-3Z
Certification:	ISO
Update Method:	by Hard Disk

We mainly export automobile maintenance and repair equipments and engine rebuilding machines, such as following:

I. GARAGE EQUIPMNETS
1. Tire changer/ wheel balancer;
2. Nitrogen producing& inflator for tires
3. Car lifts
4. Spray booth/ infrared varnish-baking light series
5. Fuel injection pump test bench
6. Universal collision repair system
7. Four-wheel alignment
8. Auto air-conditioner service machnes
9. Spot welding machine /CO2 protection welding machine
10. Auto parts cleaners series
11. Other equiments

II. ENGINE REBUILDING MACHINES
1. Brake lathe or brake drum/disc cutting machines
2. Valve seats boring machine
3. Cylinder block grinding & milling machine
4. Cylinder fine boring machines
5. Cylinder line boring machines
6. Cylinder body bush boring machine
7. Vertical cylinder honing machine
8. Con-rod boring and grinding machine
9. Crankshaft grinding machines
10. Flywheel & Clutch Plate Grinding Machine
11. Valve grinding machines
12. Brake shoe riveting machines

III. OTHER MACHINES
1. Hydraulic press brake
2. Shearing machines
3. Lathe machines

Welcome to your inquiries, and we're expecting to work with you
