Stainless Steel House Pipe Inspection Camer

Name: Stainless Steel House Pipe Inspection Camer
Brand: ibuyautoparts.com
SKU: 727573935
Availability: InStock
Rating: 4.8 (34 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	2/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

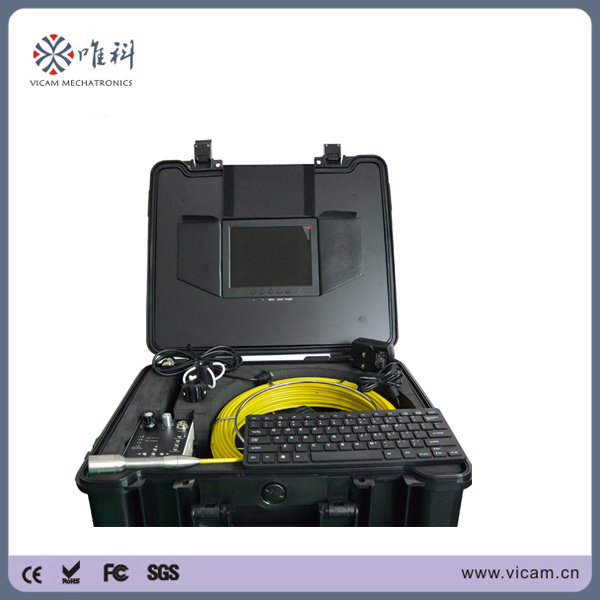

Stainless Steel House Pipe Inspection Camer

Camera Head
* Camera head size Φ 23 x 45mm for pipe Φ 25 to 200mm
* Camera head housing material stainless steel
* Camera lens cover material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576 NTSC 720X 480
* Waterproof IP68
* Field of view 120°
* Camera lighting 12 white LEDS

Monitor
*8 inch TFT LCD color monitor
* Power supply DC 12V
* OSD language: English, Up, down left, right adjustable.
* 16: 9 4: 3 model
* Sunshade included

DVR Control Box
* DVR power supply 12V DVR work current 200mA
* Storage medium SD card (8G SD card included)
* Li-ion Battery power supply (18650 x 6 pcs)
* Charging time 5 hours, working time 6 hours
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)

Cable Reel
* Stainless steel Cable Reel size Φ 320 x 110mm
* 20m Φ 5.2mm fiberglass rod push cable (30m, 40m optional)

Carrying case
* ABS Carrying case size: 520 x 435 x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Monitor Size:	8" Screen Monitor
Field Of View:	120°
Waterproof:	IP68
Camera Lighting:	12 White LEDs
ABS Carrying Case Size:	520 X 435 X 200mm
Certification:	RoHS

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
