Professional Chimney Camera and Underwater CameraChimney camera listing description1) 7 inch TFT LCD monitor
2) ø23mm stainless steel camera head

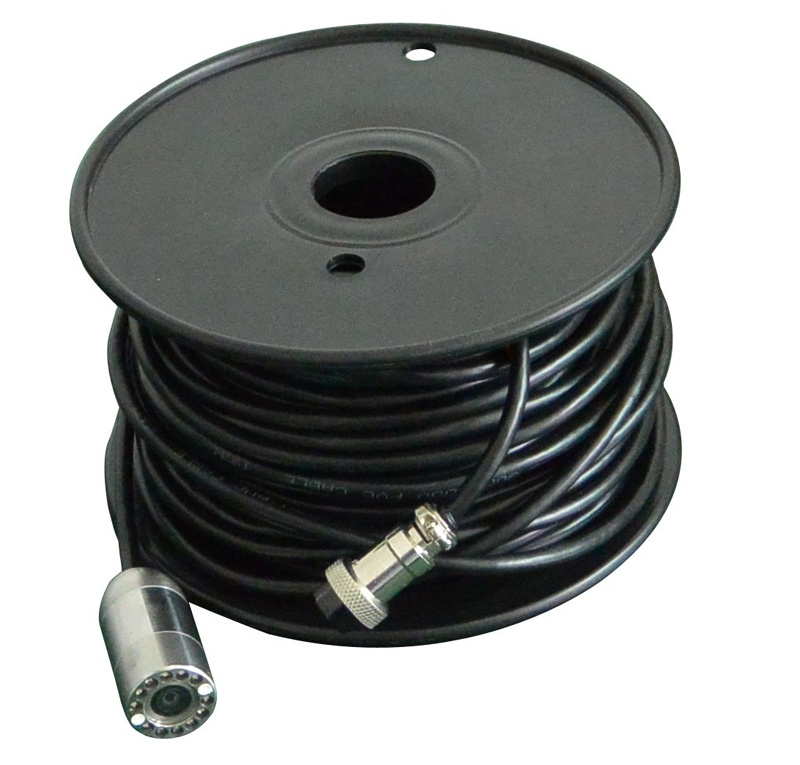

3) 30m soft cable with plastic reel
4) control box
Chimney camera detailed descriptionCamera Head

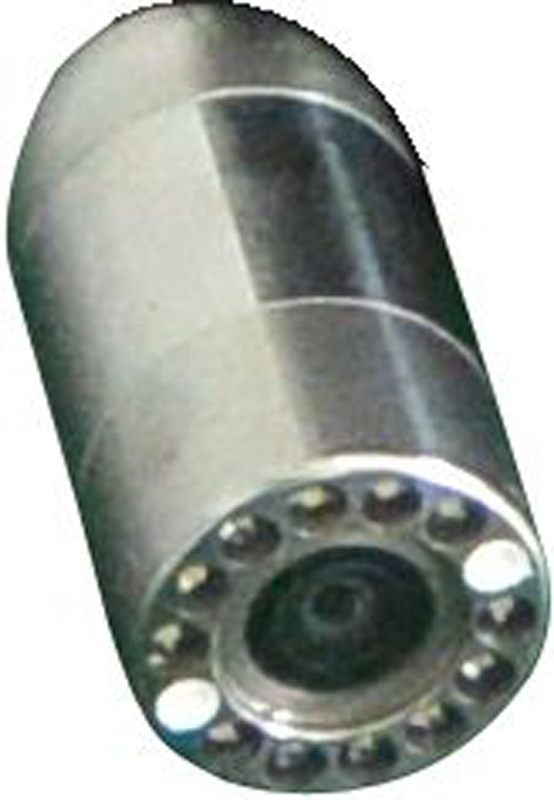

* Camera head size Φ 23 X 45mm for underwater or chimney ect. Inspection
* Camera head housing material stainless steel
* Camera lens cover material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120°
* Camera lighting 12 white LEDs
Monitor

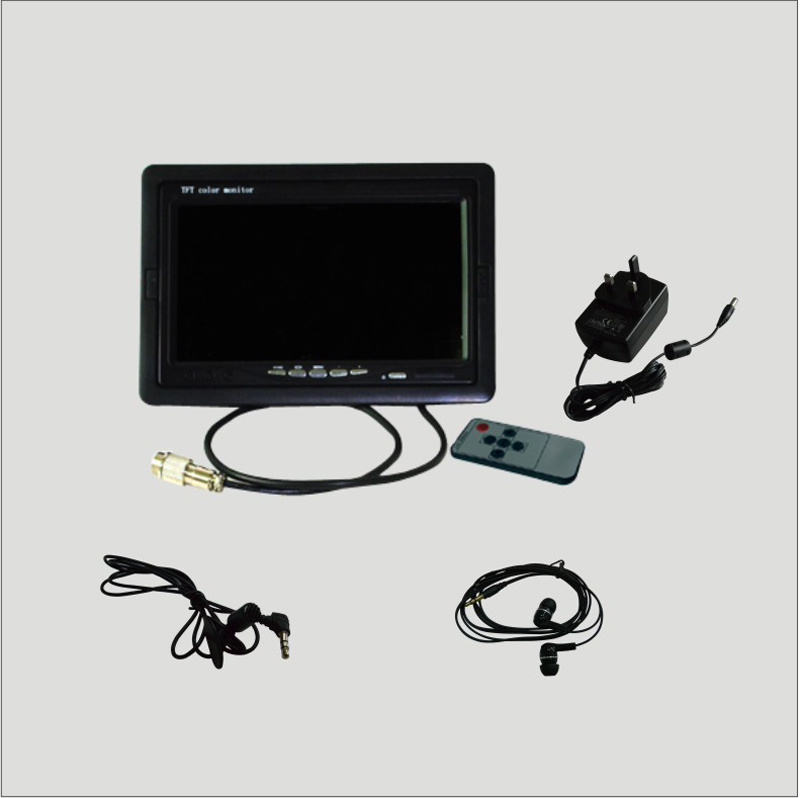

*7 inch TFT LCD monitor
* Power supply DC 12V
Cable Reel
*30m soft cable with plastic reel
Carrying case* Aluminum carrying case size: 350 X 330 X 140mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Our Service:1. Your any inquiries will be replied in 24hours.2. Well-trained and experienced staffs to answer all your enquires in fluent English3. Distributoership are offered for your unique design and some our current models.4. Best Quality & Best Service with competitive price.5. All regular products can give 2 years warranty. Our Company:1. We are China leading and professional pipe inspection camera Manufacturer.2. Our product quality policy is that each shipment with 2 years guarantee and 7 days unconditional returns.3. Positive team with full experiences in product specification and producing.Application:1. WATER SUPPLY 2. WASTE WATER 3. ELECTRICAL AIR CONDITIONER4. CABLE DUCTING5. DUCTED VACCUM SYSTEMS6. PLUMBING7. IN BUILDING Thanks for scanning our product, your inquiry or feedback will be highly appreciated.Looking forward to supporting you!If you want to know more detail information about us, welcome to visit our company website: http://wwwvicam.cn/
|
Stainless steel cmos camera head data |
|
camera size |
Φ23mm×118mm (camera head 23 X 45mm) |
|
camera housing material |
stainless steel #304L |
|
camera window |
sapphire glass |
|
connecting type |
golden pins slip-ring connection |
|
sensor |
1/4" color CMOS |
|
field of view |
120° |
|
resolution |
PAL:720H×576V NTSC: 720H×480V; |
|
horizontal definition |
420TVL |
|
S/N rate |
>48dB(AOC on) |
|
electronic shutter |
1s_1/10000s |
|
sensitivity |
0.1Lux |
|
video output |
1.0 Vp-p / 75Ω |
|
lighting |
12 high intensity white LED, brightness adjustable |
|
waterproof |
yes, class IP68 |
|
working voltage |
DC 12V |
|
working current |
51mA Max (LED Max: 100mA) |
|
operating temperature |
-10ºC~60ºC |
Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
