Portable Rod Push Inspection Camera

Name: Portable Rod Push Inspection Camera
Brand: ibuyautoparts.com
SKU: 739254225
Availability: InStock
Rating: 4.5 (22 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

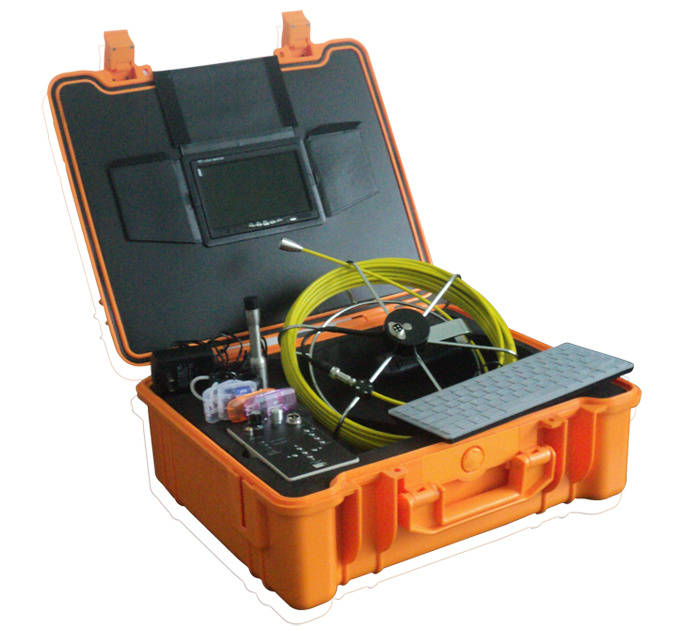

Portable rod push inspection camera

1. Pipe Inspection Camera Head
* Camera head size Φ 23 X 45mm for pipe Φ 25 to 200mm
* Camera head housing material stainless steel
* Camera lens cover material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120°
* Camera lighting 12 white LEDs

2. Monitor
*8 inch TFT LCD monitor
* Power supply DC 12V

3. DVR Control Box
* DVR power supply 12V DVR work current 200mA
* Storage medium SD card jack with 8G SD card
* Li-ion Battery power supply (18650 X 6 PCS)
* Charging time 5 hours, working time 6 hours
* Keyboard output

4. Cable Reel
* Stainless steel Cable Reel size Φ 320 X 110mm
* 20m Φ 5.2mm fiberglass rod push cable (30m, 40m optional)

5. Carrying case
* ABS Carrying case size: 520 X 435 X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Delivery time 1 week

Camera Head	* Camera head size Φ23 x 45mm for pipe Φ25 to 200mm * Camera head casing material stainless steel * Camera lens window material sapphire glass * Sensor size 1/4 inch * Total Pixels PAL 720X576 NTSC 720X 480 * Field of view 120° * Camera lighting 12 pcs high intensity white LED
Monitor	* 8 inch TFT LCD monitor * Power supply DC 12V
DVR Control Box	* 12V DVR work current 200mA * Storage medium SD card jack * USB Keyboard jack
Battery pack & Charger	* 1.5A power supply * AC110-240V to DC12V charger * Charging time 5 hours, working time 6 hours
Cable Reel	* Stainless steel Cable Reel size Φ 320 x 110mm * 20m Φ5.2mm fiberglass rod push cable (30m, 40m optional)
Carrying case	ABS carrying case: 520 x 435 x 200mm Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum * Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Features and Benefits	* Waterproof Camera with 12 pcs high brightness LEDs lighting can easily check all pipes problem inside * DVR control box easy to record and replay video, photo,and sound. USB jack for keyboard support to typewrite real time any information you need * 6600 mAh Li-on battery support the unit working more than 5 hours

Prod Model:	V7-3188dk
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	8" Screen Pipe Inspection System with DVR & Keyboa
Camera View Field:	120
Memorize Medium:	Sdcard (Max64G)
Waterproof:	IP68
Fiberglass Cable Diameter:	5.2mm
Fiberglass Cable Length:	20-50m
Charger Mode:	Us,EU,UK
Carrying Case:	524420cm
Illumination:	12PCS High Intensity LED
Certification:	RoHS

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
