Plumbing Inspection Tools Pipe Video Camera V7-3188dk

Name: Plumbing Inspection Tools Pipe Video Camera V7-3188dk
Brand: ibuyautoparts.com
SKU: 716526665
Availability: InStock
Rating: 4.5 (33 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	2/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

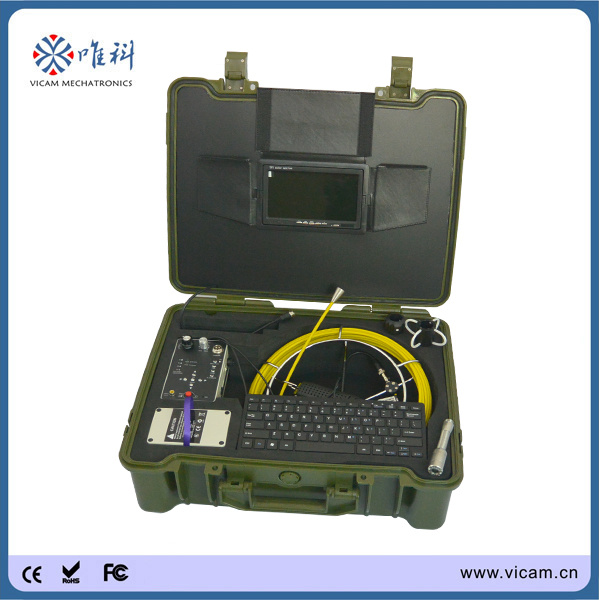

Plumbing inspection tools pipe video camera V7-3188DK

Pipe camera Camera Head
* Camera head size Φ23 x 45mm for pipe Φ25 to 200mm
* Camera head casing material stainless steel
* Camera lens window material sapphire glass
* Sensor size 1/4 inch CMOS camera
* Total Pixels PAL 720X576   NTSC 720X 480
* Field of view 120°,IP68 waterproof
* 12 pcs high intensity white LED

Pipe inspection camera system Monitor
* 7 inch TFT LCD monitor
* 4:3/16:9 display model optional
* Brightness:400cd/m2

DVR Control Box

* DVR control buttons
* SD card (max 64G) jack,keyboard jack
* LED brightness adjusting knob
* A / V & photo selection available
* On/off microphone control button
* Battery level indicator lights

Battery pack & Charger

* 4400mA li-ion battery
* AC110V-240V 1A power charger
* Charging time 5 hours, working time 6 hours

Cable Reel

* Fibreglass push rod cable
* Cable diameter Φ5.2mm
* Cable length from 20m to 50 optional
* Reel size Φ 320 x 110mm

Prod Model:	V7-3188DK
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screen Size:	7 Inch Color Screen
Camera Diameter:	23mm
Video Recording:	Yes
Battery Capacity:	4400mA
Camera Lights:	12PCS LED
Camera View Angle:	120 Degree
Cable:	20m Optic Fiber
Cable Diameter:	5.2mm
Certification:	RoHS

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
