Pipeline Inspection Camera with 10' HD LED Monitor

Name: Pipeline Inspection Camera with 10' HD LED Monitor
Brand: ibuyautoparts.com
SKU: 716625625
Availability: InStock
Rating: 4.3 (86 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

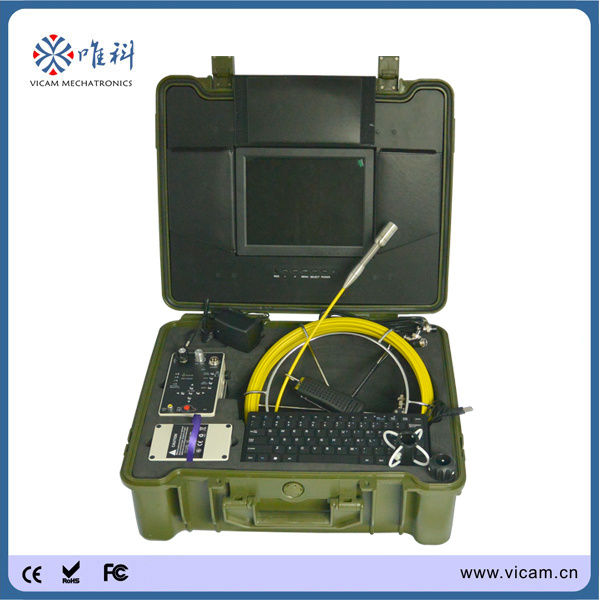

Pipeline Inspection Camera with 10 inch HD LED Monitor

Pipeline Inspection Camera Head
* Camera head size Φ 23 X 45mm for pipe Φ 25 to 200mm
* Camera head housing material stainless steel
* Camera lens cover material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576; NTSC 720X 480
* Field of view 120°
* Camera lighting 12 white LEDs

Pipeline Inspection Monitor
*10 inch HD LED monitor
* Power supply DC 12V

DVR Control Box
* DVR power supply 12V DVR work current 200mA
* Storage medium SD card (8G SD card included)
* Li-ion Battery power supply (18650 X 9 PCS 6600 mAh)
* Charging time 5 hours, working time 6 hours
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)

Cable Reel
* Stainless steel Cable Reel size Φ 320 X 110mm
* 20m Φ 5.2mm fiberglass rod push cable (30m, 40m optional)

Carrying case
* ABS engineering carrying case size: 520 X 435 X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Delivery time 1 week

Prod Model:	V10-3188DK
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waterproof CCTV Inspection Camera:	Fixed Focus Lens Camera
Skids Size:	4cm and 8.5cm
Charger Adaptor:	12V 1.5A
Li-ion Battery Capacity:	6600mAh
USB Port:	Yes
Storage Medium:	2g SD to 32g SD
Field Of View:	120 Degree
Camera Lights:	12 PCS LED Lights
Certification:	UL, FCC

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
