Pipeline Inspection Camera for Plumping (V7-3188)

Name: Pipeline Inspection Camera for Plumping (V7-3188)
Brand: ibuyautoparts.com
SKU: 716530925
Availability: InStock
Rating: 5 (33 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

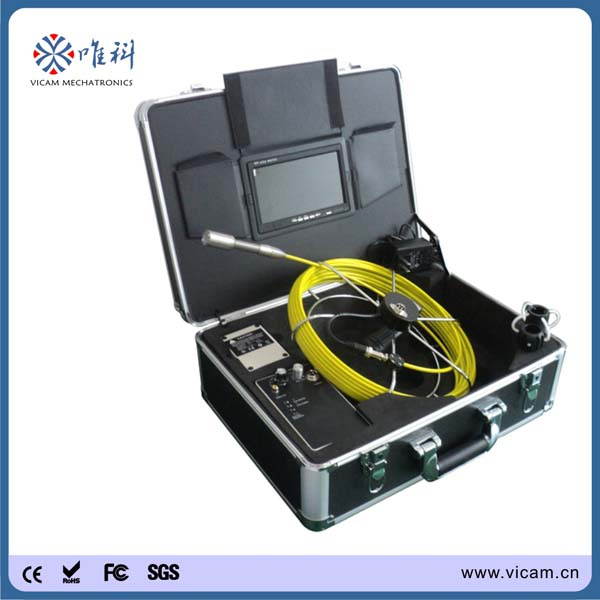

Man-pack Pipeline Inspection Camera Kit

Pipeline Inspection Camera Head
* Camera head size Φ 23 X 45mm for pipe Φ 25 to 200mm
* Camera head housing material stainless steel
* Camera lens cover material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120°
* Camera lighting 12 white LEDs

Pipeline Inspection Monitor
*7 inch TFT LCD monitor
* Power supply DC 12V

Control Box
* Power supply 12V DVR work current 200mA
* Li-ion Battery power supply (18650 X 6 PCS)
* Charging time 5 hours, working time 6 hours

Cable Reel
* Stainless steel Cable Reel size Φ 320 X 110mm
* 20m Φ 5.2mm fiberglass rod push cable (30m, 40m optional)

Carrying case
* Aluminum carrying case size: 460 X 340 X 190mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Delivery time 1 week

S/S Camera data
1	camera size: Φ23mm×118mm (camera head 23 X 45mm)
2	camera housing material:stainless steel #304L
3	camera window: sapphire glass
4	connecting type: golden pins slip-ring connection
5	sensor: 1/4" color CMOS
6	field of view: 120°
7	resolution: PAL:720H×576V NTSC: 720H×480V;
8	horizontal definition: 480TVL;
9	S/N rate: >48dB(AOC on)
10	electronic shutter: 1s_1/10000s
11	sensitivity: 0.1Lux
12	video output: 1.0 Vp-p / 75Ω
13	lighting: 12 high intensity white LED, brightness adjustable
14	waterproof: yes, class IP68
15	working voltage: DC 12V
16	working current: 51mA Max (LED Max: 100mA)
17	operating temperature:-10ºC~60ºC

Prod Model:	V7-3188
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Monitor Size:	8 Inch
LED Lighting:	12PCS
Camera Diameter:	23mm
Camera Housing Material:	Stainless Steel
Cable Diameter:	5.2mm
Cable Material:	Fiberglass Push Rod
Storage:	SD Card(Max 64GB)
Certification:	RoHS
Update Method:	by Hard Disk
Diagnostic Tool Type:	Pipe Inspection Camera
Testing Equipment Type:	Pipe Inspection Camera

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
