Multi-Purpose Pipe Inspection Camera System

Name: Multi-Purpose Pipe Inspection Camera System
Brand: ibuyautoparts.com
SKU: 717105225
Availability: InStock
Rating: 5 (40 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	V8-3288B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waterproof CCTV Inspection Camera:	Fixed Focus Lens Camera
Certification:	UL, FCC

Product Description

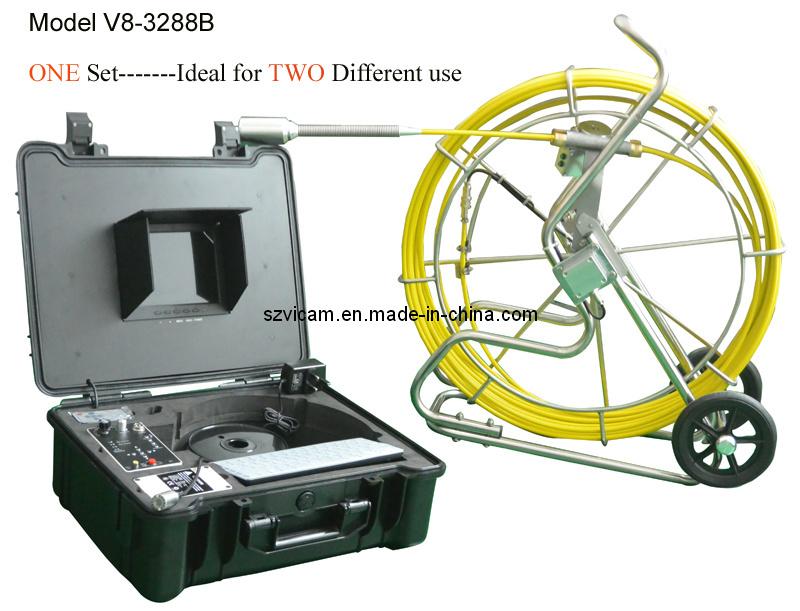

Multi-purpose Pipe Inspection Camera System

1. Heavy-duty CCTV Inspection kit

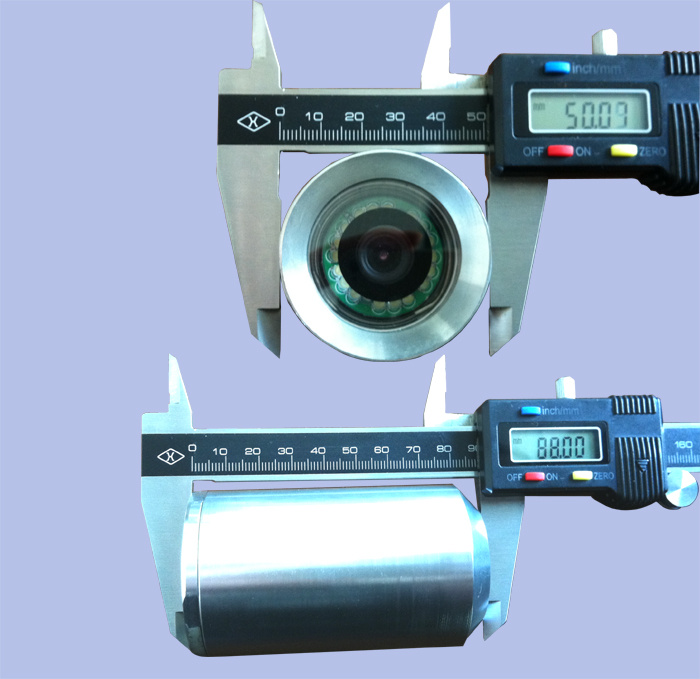

Big Camera Head

* 1/3" Color CCD 600 TV lines
* Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm
* Waterproof: Yes, IP68
* Self-levelling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: Sapphire glass
* 3 size Camera skids for different pipe diameter use(110, 154, 230mm)

Havey-Duty Cable Reel
* Stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)
* New design Counter device error rate less than 0.1%

2. Handle inspection kit

Small Camera Head
* Stainless steel bullet waterproof camera Φ 23 X 45mm
* 30m soft cable
* handle cable reel
* ideal for underwater or vertical pipe inspection

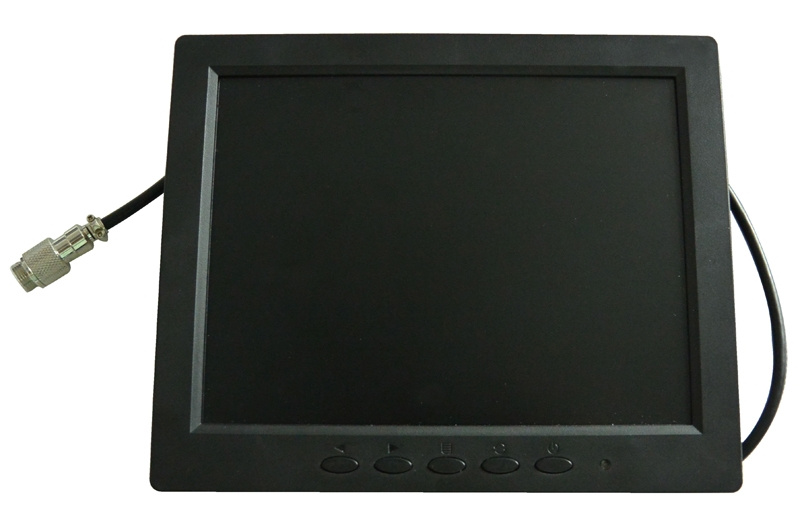

Monitor

* 8 inch TFT LCD monitor
* Display model: 4: 3
* Visible angle: Horizontal & vertically 170°
* Power supply DC 12V

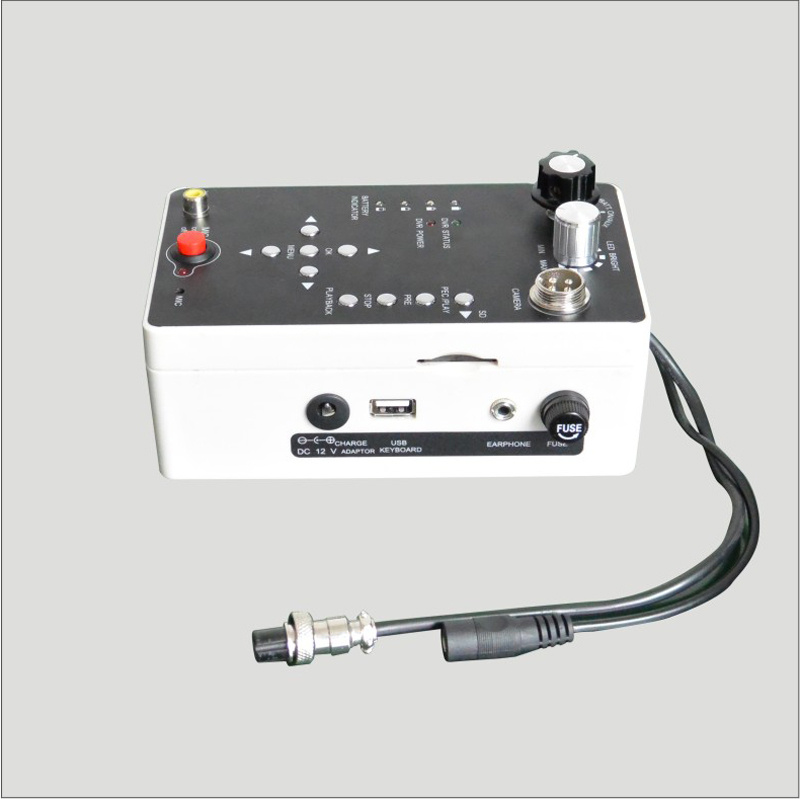

DVR Control Box

* Power supply 12V
* DVR work current 200mA
* Storage medium SD card (8G SD CARD INCLUDED)
* Li-ion Battery power supply pack (18650 X 9 PCS 6600 mAh)
* Charging time 5 hours, working time 6 hours
* USB jack for waterproof Keyboard (Keyboard included)
* MIC on / off button and earphone output jack ( earphone bud included)

Unit control carrying case
* ABS engineering carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Delivery time 1 week

CCD Aluminum Camera data
1	camera size: Φ50mm×89mm ;
2	camera housing material: Aluminum
3	camera window: sapphire glass
4	connecting type: golden pins slip-ring connection
5	sensor: 1/3" color CCD
6	field of view: 90°
7	resolution: PAL:752H×582V NTSC: 768H×494V;
8	horizontal definition: 600TVL;
9	picture: Self-leveling
10	S/N rate: >48dB(AOC on)
11	electronic shutter: 1/50(1/60) - 1/100000 s
12	sensitivity: 0.01Lux
13	video output: 1.0 Vp-p / 75Ω
14	lighting: 18 high intensity white LED, brightness adjustable
15	waterproof: yes, class IP68
16	working voltage: DC 12V
17	working current: 63mA Max (LED Max: 120mA)
18	operating temperature: -10ºC~60ºC

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
