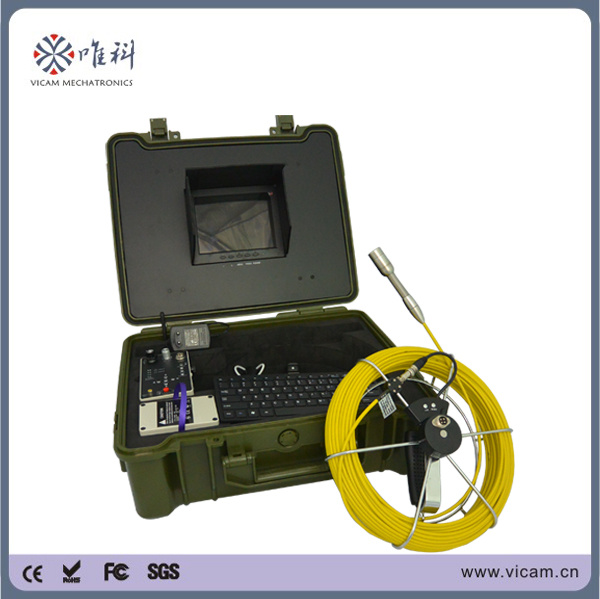

Mini camera head 50m cable leak detect camera with DVR control(V10-3188KC)
Camera Head For Drain Inspection
* Camera head size Φ 23 X 45mm for pipe Φ 25 to 200mm
* Camera head housing material stainless steel
* Camera window material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120°
* Camera lighting 12 white LEDs
Monitor For Drain Inspection
* 10 inch HD LED monitor
* Power supply DC 12V
DVR Control Box For Drain Inspection
* DVR power supply 12V DC work current 200mA
* Storage medium SD card ( 8G SD card included )
* Rechargeable Li-ion Battery pack power supply (18650 X 9 PCS 6600 mAh)
* Charging time 5 hours, working time 6 hours
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)
Cable Reel with Meter Counter For Drain Inspection
* New design Counter device on the cable reel error rate less than 0.1%
* Stainless steel Cable Reel size Φ 320mm× 110 (h)
* 20m Φ 5.2 mm fiberglass rod push cable ( 30m/40m optional)
Unit control carrying case For Drain Inspection
* ABS engineering carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Delivery time 1 week
|
Camera Head |
* Camera head size Φ23 x 45mm for pipe Φ25 to 200mm
* Camera head casing material stainless steel
* Camera lens window material sapphire glass
* Sensor size 1/4 inch CMOS camera
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120°,IP68 waterproof
* Camera lighting 12 pcs high intensity white LED
|
|
Monitor |
* 10inch TFT LCD monitor
* 4:3/16:9 display model optional
* Brightness:400cd/m2
|
DVR
Control Box |
* DVR control buttons
* SD card (max 64G) jack
* LED brightness adjusting knob
* A / V & photo selection available
* On/off microphone control button
* Battery level indicator lights
|
Battery pack
& Charger |
* 4400mA li-ion battery
* AC110V-240V 1A power charger
* Charging time 5 hours, working time 6 hours
|
|
Cable Reel |
* Fibreglass push rod cable
* Cable diameter Φ5.2mm
* Cable length from 20m to 50 optional
* Reel size Φ 320 x 110mm
|
|
Carrying case |
* ABS carrying case: 520 x 435 x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
|
|
Features and Benefits |
* 12 pcs high brightness LEDs lighting can easily check all pipes problem inside
* A removable SD Card records images and video for later review and easy transfer to a PC for reporting or sharing via email.
* DVR control box easy to record and replay video, photo
* Portable ABS carrying case with all parts easy to carry.
|
