Automobile Clutch Test Bench

Name: Automobile Clutch Test Bench
Brand: ibuyautoparts.com
SKU: 674245312
Availability: InStock
Rating: 4.3 (50 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Test bench for automobile clutch disassembly
1. Function Introduction
QCJ-3 Model Automobile Clutch Disassembly& Test Bench is applicable for disassembling and testing the clutch of all trucks and buses. This equipment has reusable structure, convenient operation and accurate test data.

2. Technical Parameter
*Power voltage: 220V/50HZ
*Working air pressure: 0.6Mpa
*Cylinder stroke: 280mm
*Maximum pressure measurement: 5000kg
*Maximum torque measurement: 1500N@M
*Transmission ratio of worm gear case: 1: 40
&Maximum stroke of indenter sliding column: 250mm
*Overall dimension of equipment (L*W*H): 1500*800*1620mm

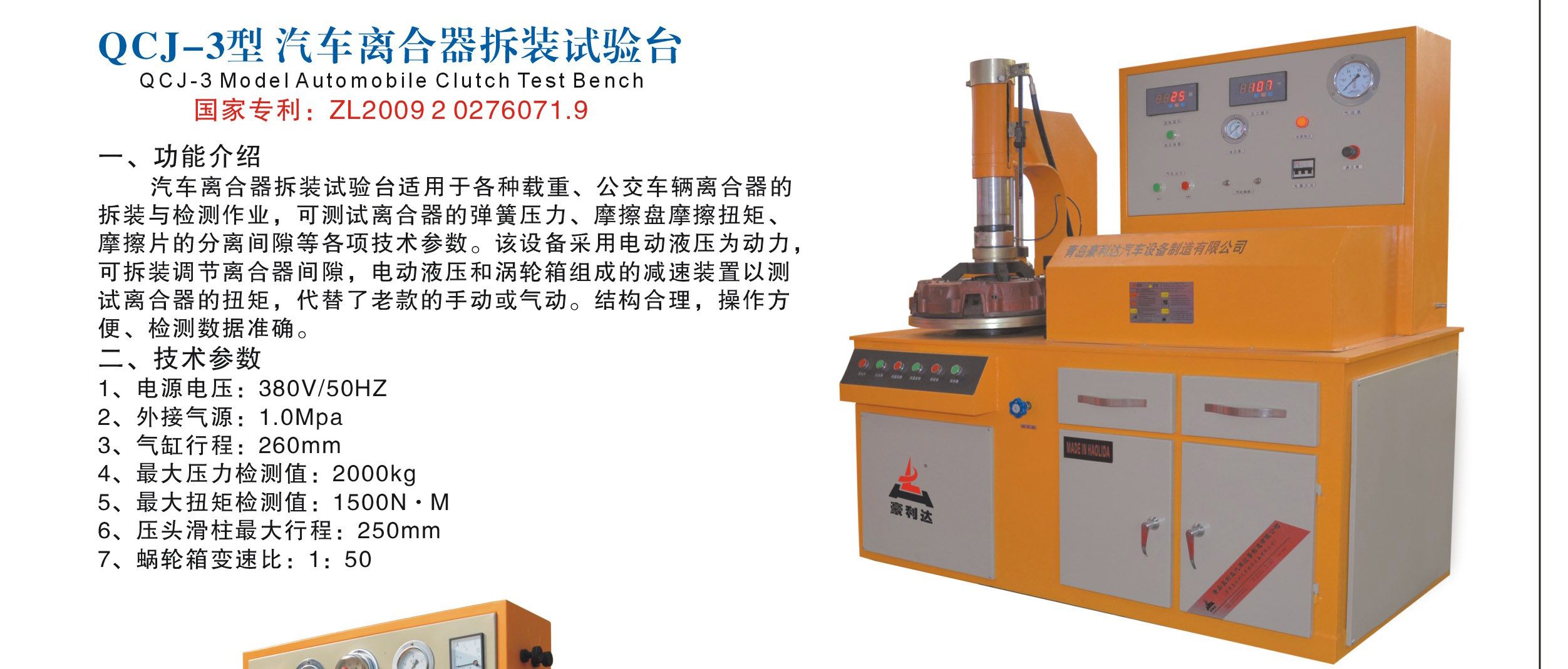

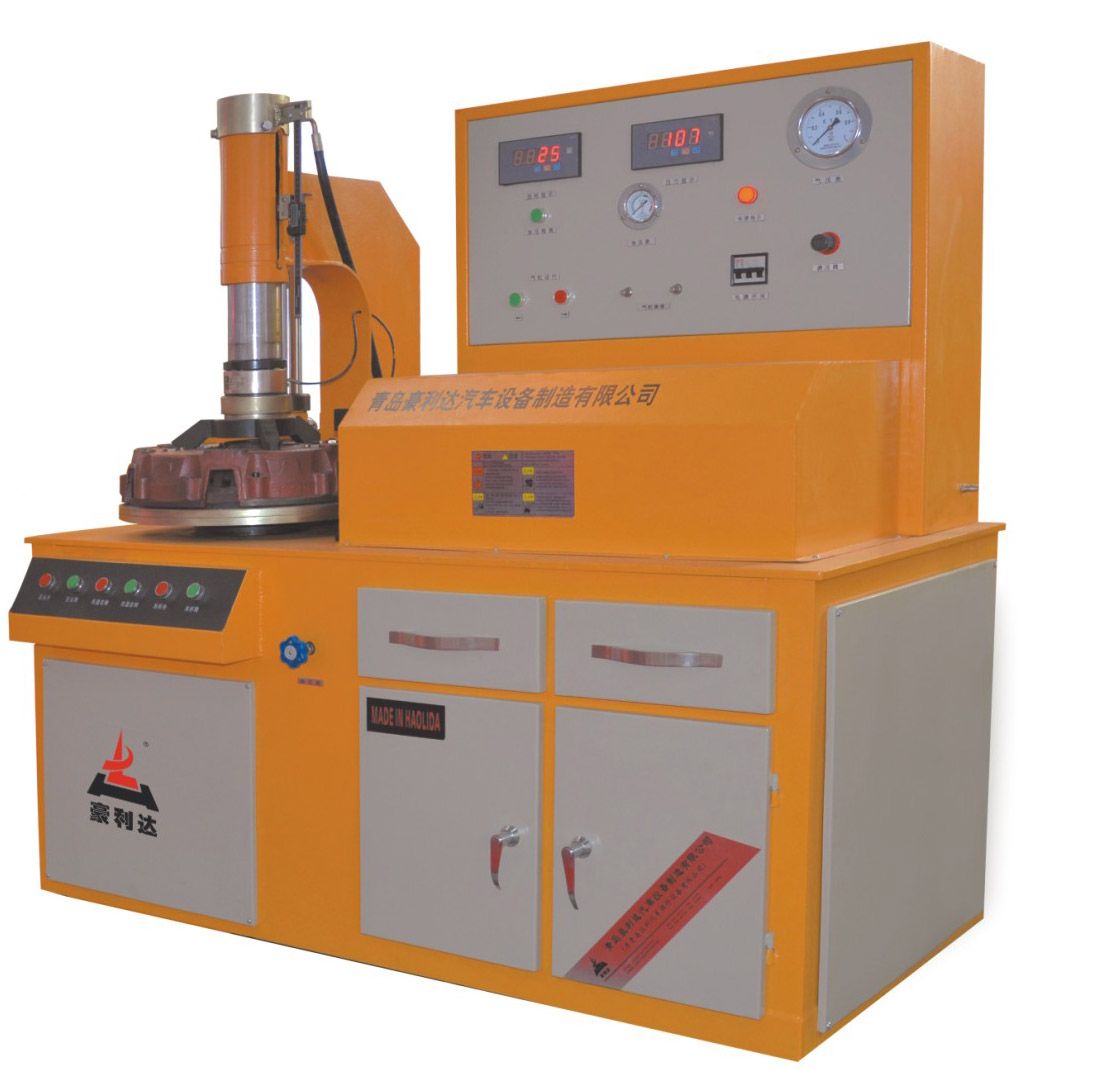

QCJ-3 Model Automobile Clutch Test Bench
National patent no: ZL2009 2 0276071.9

Character:
QCJ-3 Model Automobile Clutch Disassembly& Test Bench is applicable for disassembling and testing the clutch of all trucks and buses. It can test the spring pressure, friction torque of friction disc, and the separating gap of friction plate ,etc. It adopt electric hydraulic as power, can dismounting and regulate the clutch gap, the reduction gear combined by the electric hydraulic and worm-gear case to test the clutch torque.
Test items:

Spring pressure of clutch
Friction torque of friction disk
Clutch gap of friction plate

Technical Parameter
Power voltage:380V/50HZ
External air source:1.0Mpa
Cylinder stroke:260mm
Maximum pressure measurement value:2000kg
Maximum torque measurement:1500N·M
Transmission ratio of worm gear case:1:50
Maximum stroke of indenter sliding column: 250mm

Prod Model:	QCJ-3
Certification:	ISO
Update Method:	by Email
Testing Equipment Type:	Clutch
