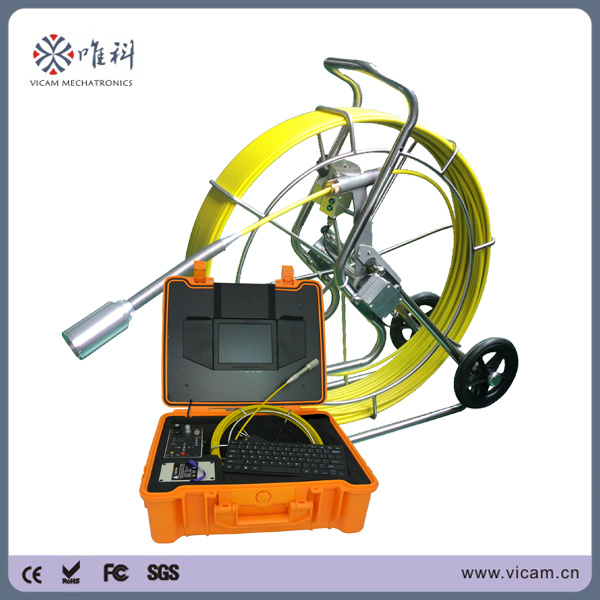

Hot Selling Pipe Inspection SystemPipe Inspection Camera Head
* 1/3" Color CCD 600 TV lines
* Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm
* Waterproof: Yes, IP68
* Self-levelling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: Sapphire glass

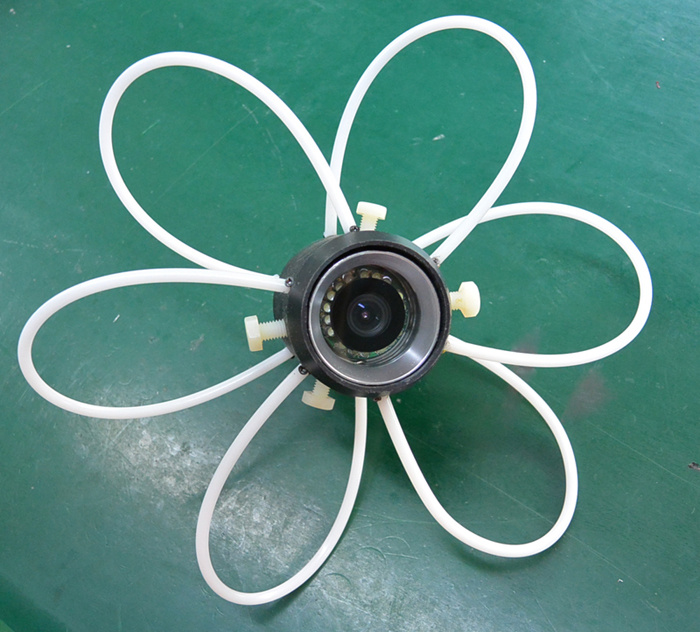

* 3 size Camera skids for different pipe diameter use(110, 154, 230mm)
Havey-Duty Cable Reel

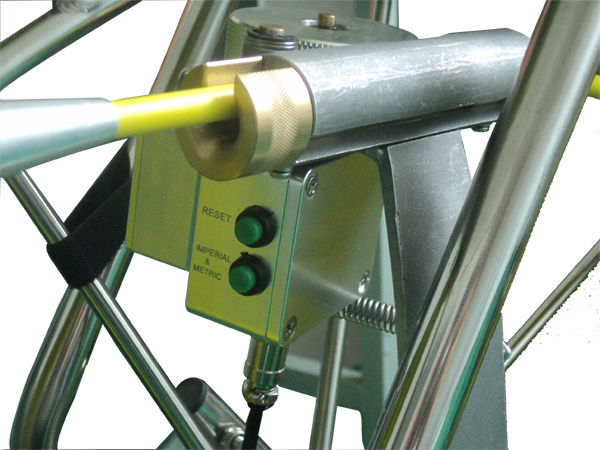

* New design Counter device on the cable reel error rate less than 0.1%
* Stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)
Portable Stainless steel bullet Camera with reel* Camera head size Φ 23 X 45mm for pipe Φ 25mm to 80mm
* Fiberglass Φ 5.2mm rod push cable reel 20m (30m, 40m optional)
* Reel size 310mm X 110mm
Monitor* 8 inch TFT LCD monitor
* Power supply DC 12V

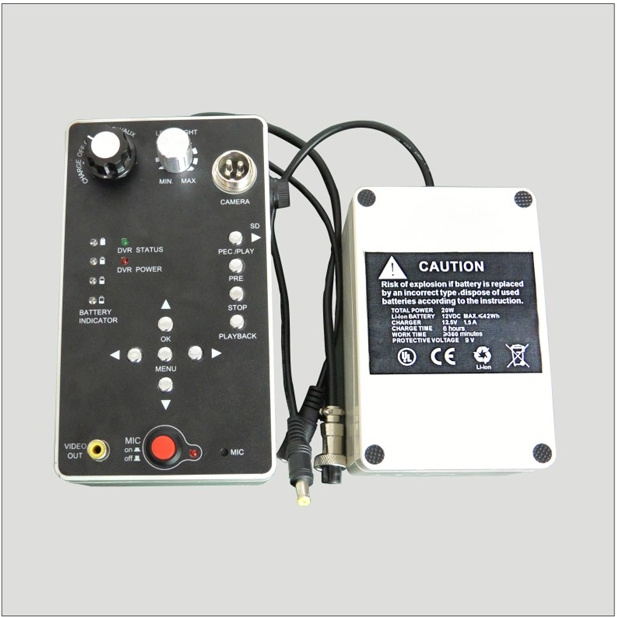

DVR Control Box
* DVR power supply 12V
* DVR work current 200mA
* Storage medium SD card (8G SD card)
* Li-ion Battery power supply (18650 X 9 PCS 6600 mAh)
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)
Unit control carrying case* ABS engineering carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Company informationBacked by Cyberia SAS and Shenzhen Institutes of Advanced TechnologyVicam Mechatronics Co. Ltd is located in Shangxue Industrial Park in Shenzhen, south China, specializing in the design, manufacture and assembly of video inspection systems. We have introduced international advanced technology, and designed and produced various video inspection cameras. Most of our products sell well in Europe, the US, Australia, the Middle East, South Africa and South America. In the process of development, we have got very important technical support from Cyberia SAS and Shenzhen Institutes of Advanced Technology.
Can be Used in Complex Applications and Hazardous Areas
Our main product range includes portable pipeline video inspection systems, industrial and city underground pipe video inspection systems, special video inspection cameras and CCTV robots for complex applications and hazardous area rated environments.
Our tenets are to rely on the advanced technology, to meet the global market demand, and to provide good quality products and good services to all our customers.
Contact Us Today
For more information about our products and services, visit our Alibaba Online showroom and then contact me.
|
Two different sizes camera heads data |
|
Stainless steel cmos camera head data |
|
camera size |
Φ23mm×118mm (camera head 23 X 45mm) |
|
camera housing material |
stainless steel #304L |
|
camera window |
sapphire glass |
|
connecting type |
golden pins slip-ring connection |
|
sensor |
1/4" color CMOS |
|
field of view |
120° |
|
resolution |
PAL:720H×576V NTSC: 720H×480V; |
|
horizontal definition |
420TVL |
|
S/N rate |
>48dB(AOC on) |
|
electronic shutter |
1s_1/10000s |
|
sensitivity |
0.1Lux |
|
video output |
1.0 Vp-p / 75Ω |
|
lighting |
12 high intensity white LED, brightness adjustable |
|
waterproof |
yes, class IP68 |
|
working voltage |
DC 12V |
|
working current |
51mA Max (LED Max: 100mA) |
|
operating temperature |
-10ºC~60ºC |
|
CCD Aluminum camera head data |
|
camera size |
Φ50mm×89mm |
|
camera housing material |
aluminum |
|
camera window |
sapphire glass |
|
connecting type |
golden pins slip-ring connection |
|
sensor |
1/3" color CCD |
|
field of view |
90° |
|
resolution |
PAL:720H×576V NTSC: 720H×480V; |
|
horizontal definition |
420TVL |
|
picture |
Self-leveling |
|
S/N rate |
>48dB(AOC on) |
|
electronic shutter |
1/50(1/60) - 1/100000 s |
|
sensitivity |
0.01Lux |
|
video output |
1.0 Vp-p / 75Ω |
|
lighting |
18 high intensity white LED, brightness adjustable |
|
waterproof |
yes, class IP68 |
|
working voltage |
DC 12V |
|
working current |
63mA Max (LED Max: 120mA) |
|
operating temperature |
-10ºC~60ºC |
Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
