Name: Heavy-Duty Video Inspection Camera System for Pipe/Sewer/Drain
Brand: ibuyautoparts.com
SKU: 721979315
Availability: InStock
Rating: 4.7 (114 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	V8-3388
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	SGS, UL
Update Method:	by Hard Disk

Product Description

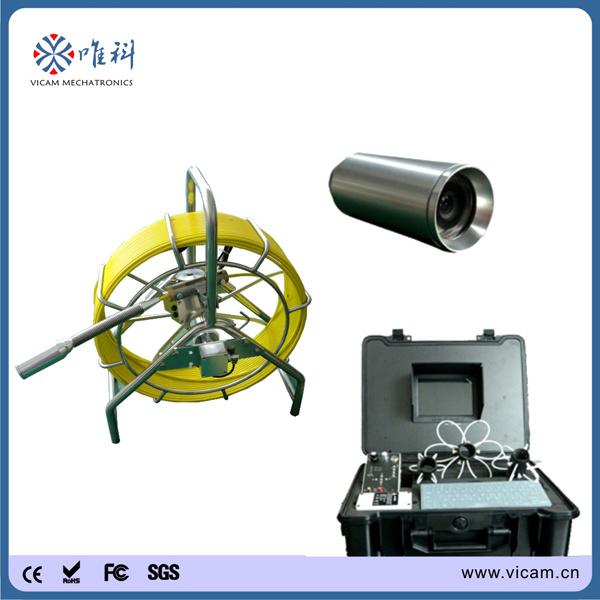

Heavy-Duty Video Inspection Camera system for Pipe/Sewer/Drain

Camera Head

*1/3" Color CCD 600 TV lines

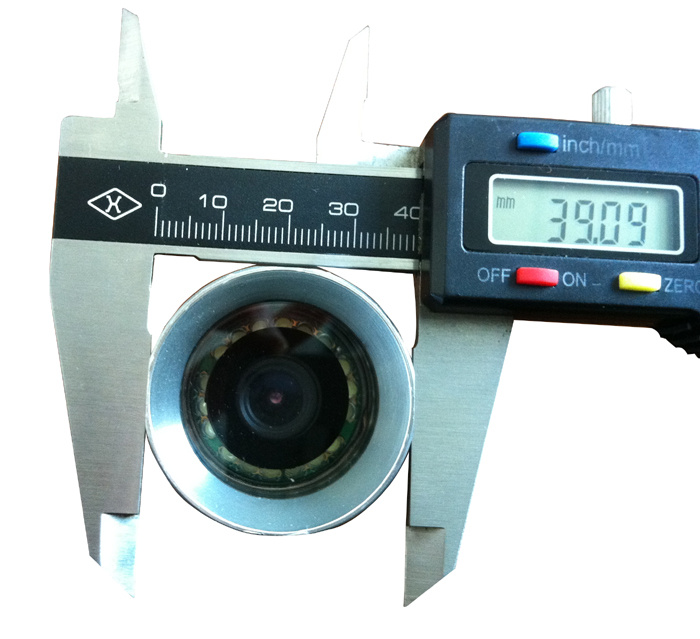

* Camera size Φ 40mm X 100mm for pipe Φ 55mm to 600mm
* Waterproof: yes, IP68
* Self-levelling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: sapphire glass
* 3 size Camera skids for different pipe diameter use(105mm, 145mm, 225mm)

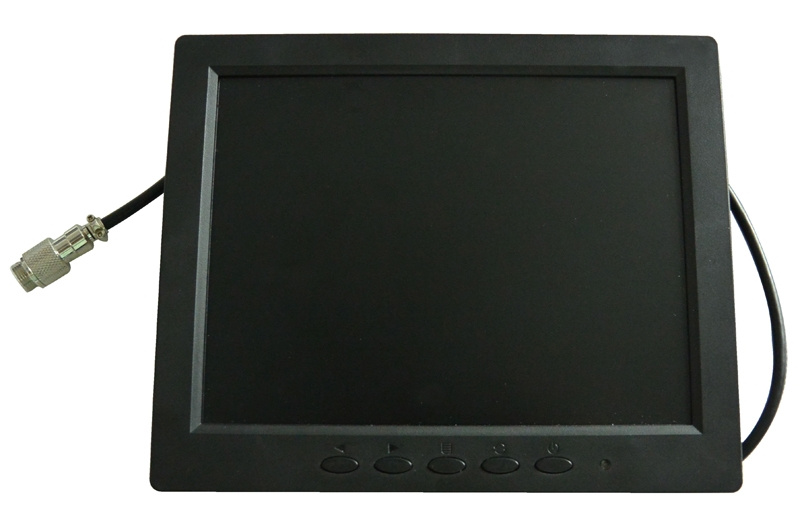

Monitor

*8 inch TFT LCD monitor
* Power supply DC 12V

DVR Control Box
* DVR power supply 12V
*DVR work current 200mA
*Storage medium SD card (8G SD card included)
* Li-ion Battery power supply (18650 x 9 pcs 6600 mAH)
* Charging time 5 hours, working time 6 hours
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)

Cable Reel with Meter Counter
*Counter device on the cable reel error rate less than 0.1%
* Stainless steel Cable Reel size 550 X 660 X 320 mm
* 60m Φ 9 mm fiberglass rod push cable ( 60m optional)
* The weight of the cable reel 12.5kg

Unit control carrying case
* ABS Carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Delivery time 1 week

CCD Aluminum Camera data
1	camera size: Φ40mm×100mm ;
2	camera housing material: Aluminum
3	camera window: sapphire glass
4	connecting type: golden pins slip-ring connection
5	sensor: 1/3" color CCD
6	field of view: 90°
7	resolution: PAL:752H×582V NTSC: 768H×494V;
8	horizontal definition: 600TVL;
9	picture: Self-leveling
10	S/N rate: >48dB(AOC on)
11	electronic shutter: 1/50(1/60) - 1/100000 s
12	sensitivity: 0.01Lux
13	video output: 1.0 Vp-p / 75Ω
14	lighting: 18 high intensity white LED, brightness adjustable
15	waterproof: yes, class IP68
16	working voltage: DC 12V
17	working current: 63mA Max (LED Max: 120mA)
18	operating temperature: -10ºC~60ºC

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
