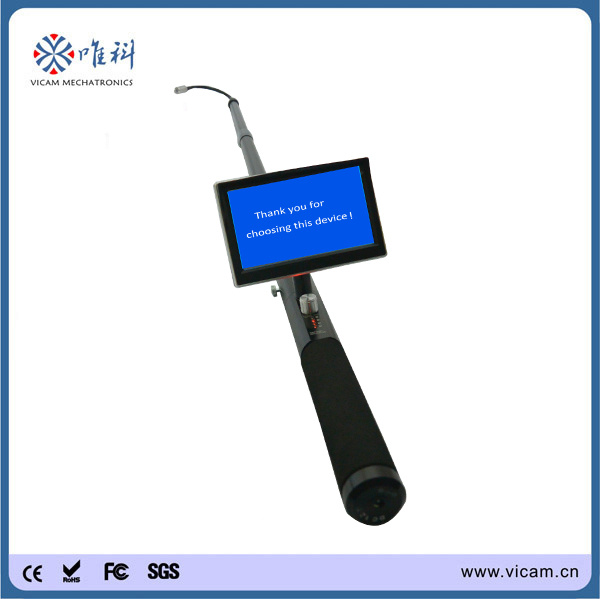

Factory sale Telescopic video hand held fishing rod pipe piping pipline chimney inspection foldable camera
1. Camera Head
* Camera head size Φ 23 x 330mm for pipe Φ 25 to 200mm
* Camera head housing material stainless steel
* Camera lens cover material sapphire glass
* Sensor size 1/4 inch CMOS
* Field of view 120°
* Camera lighting 12 pcs high intensity white LED
2. Monitor
* 5 inch TFT LCD monitor
* Resolution 800*480
* Power supply DC 12V
3. DVR control box
*Video resolution: 704X576
*Storage medium SD card (8G SD card included, support 2GB to 64GB))
*LED brightness adjustable knob
*A / V & photo selection available
*On/off microphone control button
4. Telescopic pole
* Pole material aluminum alloy
* 4 joints of telescopic pole
* The min length is 0.9m; The max length is 2.3m( Not included the camera part)
5. Power supply
* 12V 0.5A charger adaptor
* One more standby li-ion battery
* Charging time 4 hours, working hours 5 hours
6. Carrying case
* Aluminum carrying case
* Total weight 1.5kg
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
7. Features and Benefits
*DVR control box easy to record and replay video, photo, and sound.
*1500 mAh Li-on battery support the unit working more than 5 hours
*Telescopic Pole easily adjust the length to use in different heigth
|
Camera Head |
* Camera head size Φ23 x 320mm for pipe Φ25 to 200mm
* Camera head housing material stainless steel
* Camera lens cover material sapphire glass
* Sensor size 1/4 inch
* Field of view 120°
* Camera lighting 12 pcs high intensity white LED
|
|
Monitor |
* 5 inch TFT LCD monitor * Resolution 840*480
* Power supply DC 12V
|
|
Telescopic pole |
* Pole material aluminum alloy
* The min length is 1.2m;The max length is 3.0m( including the camera head length)
|
|
Power supply |
* 0.5A power supply
* Charging time 4 hours, working hours 5 hours
|
|
Carrying case |
* Aluminum carrying case
* Total weight 1.5kg
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
|
|
Features and Benefits |
* Waterproof Camera can easily check all pipes problem inside
* 5" LCD monitor give you a good quality image
* 1500 mAh Li-on battery support the unit working more than 5 hours
* Telescopic Pole easily adjust the height to use in different wall pipe |
Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
