Drain Inspection with Self-Leveling Image

Name: Drain Inspection with Self-Leveling Image
Brand: ibuyautoparts.com
SKU: 717060565
Availability: InStock
Rating: 4.6 (147 reviews)

Price:	US $ 1840-1940/Set
Trade Terms:	FOB,CFR,EXW
Min Order:	5/Set
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	V8-3288
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feature:	Auto Self-Levelling Camera Lens
Certification:	CE, RoHS, FCC

Product Description

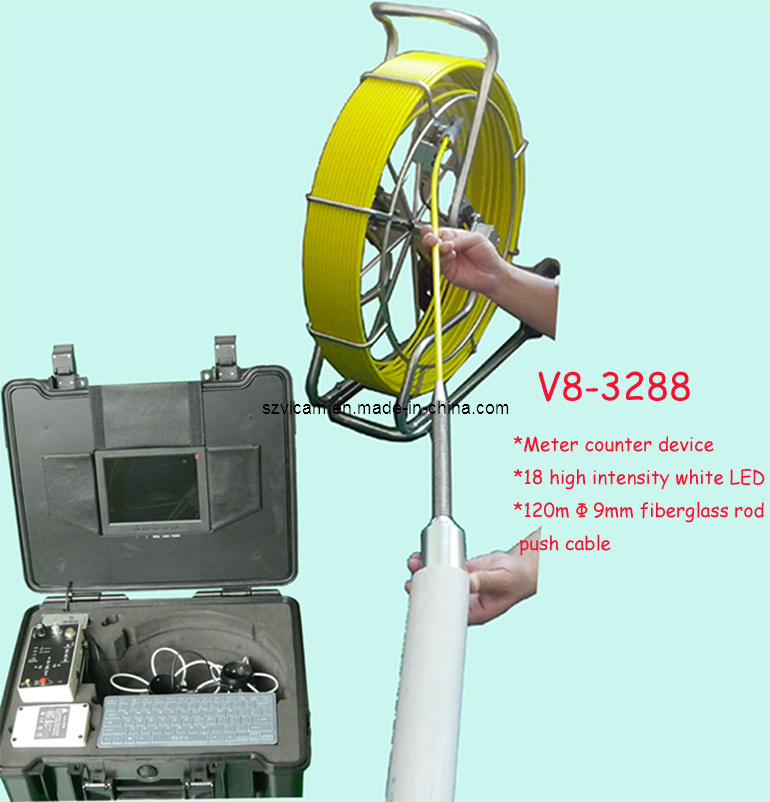

8" Screen Drain Inspection with Self-Leveling Image
Idea for Drain / pipe inspection, two different use.

Drain InspectionCamera Head
* 1/3" Color CCD 600 TV lines
* Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm
* Waterproof: Yes, IP68
* Self-levelling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: Sapphire glass
* 3 size Camera skids for different pipe diameter use

Monitor
* 8 inch TFT LCD monitor
* Power supply DC 12V

DVR Control Box
* DVR power supply 12V
* DVR work current 200mA
* Storage medium SD card (8G SD card included)
* Li-ion Battery power supply (18650 X 9 PCS 6600 mAh)
* Charging time 5 hours, working time 6 hours
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)

Cable Reel with Meter Counter
* Counter device on the cable reel error rate less than 0.1%
* Stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)

Unit control carrying case
* ABS Carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Delivery time 1 week

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
