Drain Inspection Camera for Drain Detection with New Counter (V8-3188KC)

Name: Drain Inspection Camera for Drain Detection with New Counter (V8-3188KC)
Brand: ibuyautoparts.com
SKU: 716595295
Availability: InStock
Rating: 4.4 (23 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	V8-3188KC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waterproof CCTV Inspection Camera:	Fixed Focus Lens Camera
Certification:	UL, FCC

Product Description

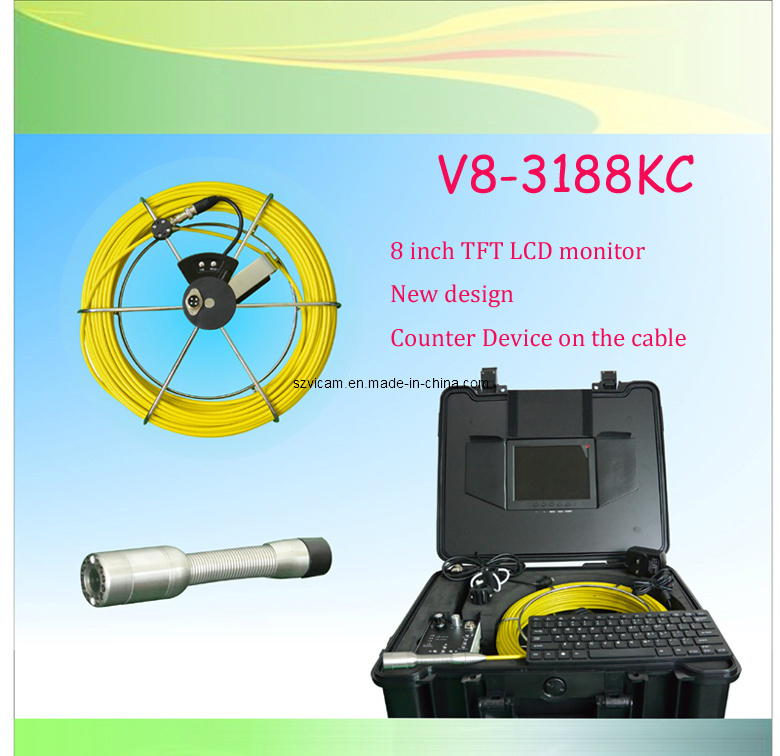

8" Screen Portable Drain Inspection Camera for Drain Detection with New Counter

Drain Camera Head
* Camera head size Φ 23 X 45mm for pipe Φ 25 to 200mm
* Camera head housing material stainless steel
* Camera lens cover material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120°
* Camera lighting 12 white LEDs

Monitor
* 8 inch TFT LCD monitor
* Power supply DC 12V

DVR Control Box
* DVR power supply 12V DVR work current 200mA
* Storage medium SD card jack( 8G SD CARD INCLUDED )
* Li-ion Battery power supply (18650 X 6 PCS)
* Charging time 5 hours, working time 6 hours
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)

Cable Reel with Meter Counter
* New design Counter device on the cable reel error rate less than 0.1%
* Stainless steel Cable Reel size Φ 320 X 110mm
* 20m Φ 5.2mm fiberglass rod push cable (30m, 40m optional)
* Fiberglass rod push cable

Carrying case
* ABS Carrying case size: 520 X 435 X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Delivery time 1 week

S/S Camera data
1	camera size: Φ23mm×118mm (camera head 23 X 45mm)
2	camera housing material:stainless steel #304L
3	camera window: sapphire glass
4	connecting type: golden pins slip-ring connection
5	sensor: 1/4" color CMOS
6	field of view: 120°
7	resolution: PAL:720H×576V NTSC: 720H×480V;
8	horizontal definition: 480TVL;
9	S/N rate: >48dB(AOC on)
10	electronic shutter: 1s_1/10000s
11	sensitivity: 0.1Lux
12	video output: 1.0 Vp-p / 75Ω
13	lighting: 12 high intensity white LED, brightness adjustable
14	waterproof: yes, class IP68
15	working voltage: DC 12V
16	working current: 51mA Max (LED Max: 100mA)
17	operating temperature:-10ºC~60ºC

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
