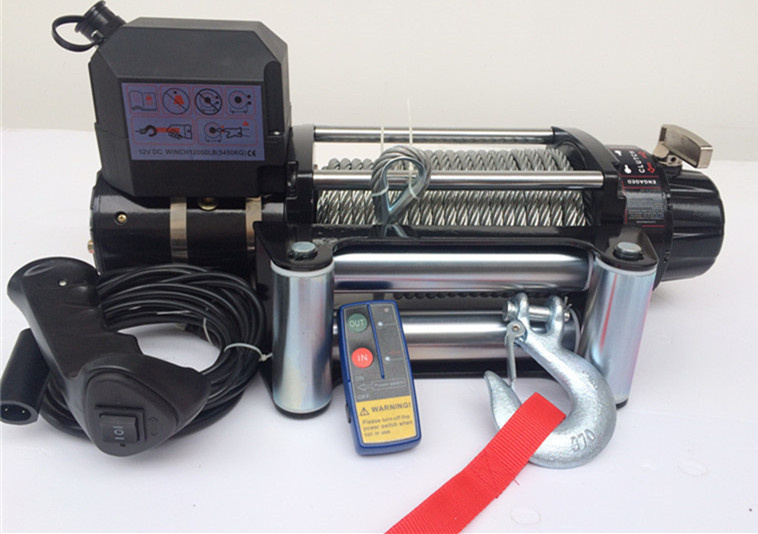

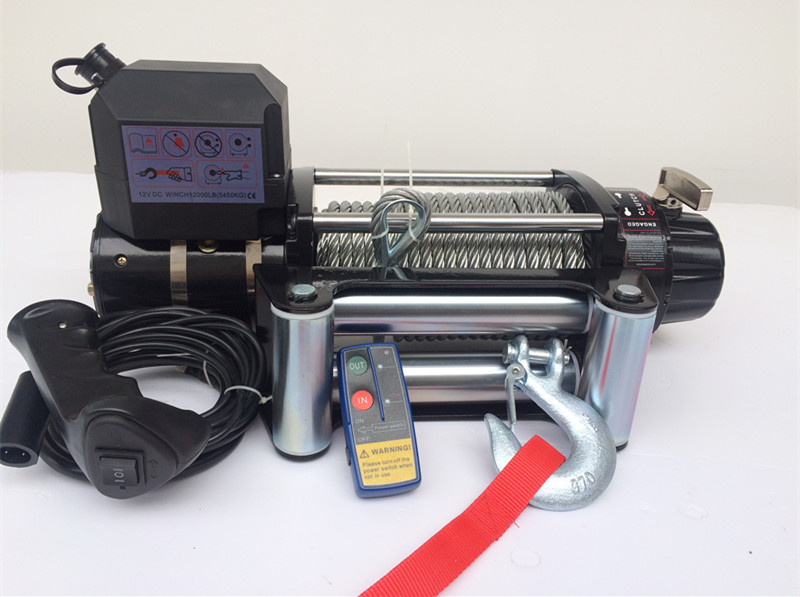

Classic Design off Road Winch 9500 Lb Pulling Rate

Name: Classic Design off Road Winch 9500 Lb Pulling Rate
Brand: ibuyautoparts.com
SKU: 729487092
Availability: InStock
Rating: 4.8 (150 reviews)

Price:	US $ 142-158PCS
Min Order:	24PCS
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Compact & Classic design , rated pulling of 9500 lb ,which is ideal recovery winch for the beginners who are offroad enthusiasts. High quality with no big price !
Features and Specifications :
PN:              XM-TE901
Single line rated pull: 9500lbs ( 4304kg)
Motor:              5.4hp/4.1kw series -wound
Braking action:       Automatic locking with motor
Clutch:              Sliding ring gear
Gear train :           3 -stage planetary
Gear ratio:           216: 1
Switch:              Wire remote control with black hand-bar ,
                    Wireless remote control included
Fairlead:             4-way roller fairlead
Steel cable:          Ф8.5 x 85.4 ft (Ф8.5 x 26 m )
Weight:              80.6 pound (35.5kg )
Overall dimension: 21.3" x 10.3" x 6.3" (540mm x 260mm x 160mm)
Mounting bolt pattern: 10" x 4.5" (254mm x 114.3mm)
Line Speed And Amp Draw ( First Layer )

Line Pull	lb	NO	4000	6000	8000	10000
Line Pull	kg	LOAD	1812	2718	3624	4304
Line speed	ft/min	38.5	14.1	12.6	10.7	7.90
Line speed	m/min	11.74	4.29	3.84	3.08	2.50
Motor current	Amps	78	143	201	276	353

Line Pull And Cable Capacity

Layer of cable		1	2	3	4
Rated line pull per layer	lb	9500	7250	6125	5150
Rated line pull per layer	kg	4304	3285	2775	2333
Length of cable on drum	ft	16.5	39.6	64.2	85.40
Length of cable on drum	m	5.03	12.70	19.57	26.00

Prod Model:	XM-TE901
Weight:	35.50 Kg
Warterproof:	IP67
Durable Cycle:	10000 Times
Warranty:	13 Months
Type:	Electric Winch
Power Type:	Series Motor DC
Certification:	RoHS
Pull Direction:	Forward and Backward
Electric Winch Model:	Truck Jeep Trailer
Working Voltage Of Electric Winch:	12 or 24 V
Brand:	Xi Man
Applicable Environment:	All

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.
