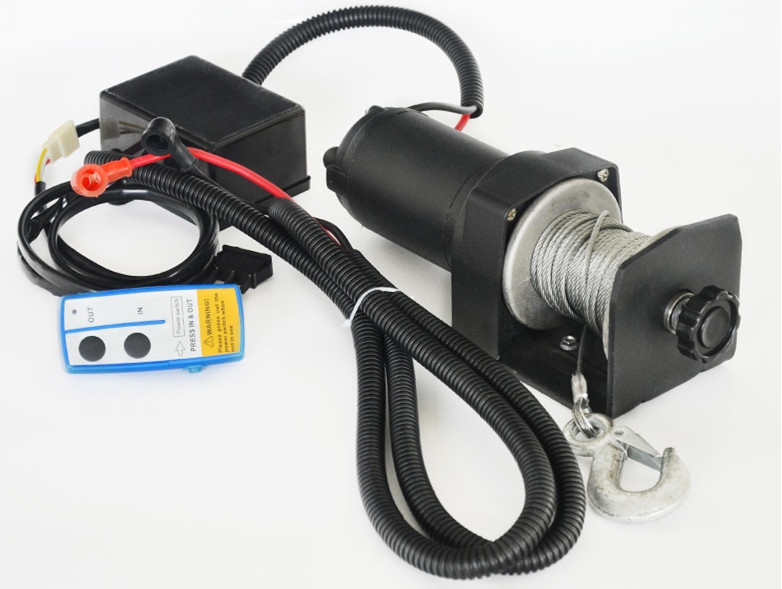

Portable Light Duty Utility Winch with 2000 Lb Pulling

Name: Portable Light Duty Utility Winch with 2000 Lb Pulling
Brand: ibuyautoparts.com
SKU: 829954985
Availability: InStock
Rating: 5 (49 reviews)

Price:	US $ 42-45PC
Min Order:	50PC
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Utility 2000lbs designs for light ATV small trailer and snow plow ,much more wide application in the daily life ! Reliable permanent magnet winch motor sealed , 153: 1 single gear-drive .Brake by dynamic , pull and turn clutch handle for " Engagement " or " Disengagement". Both wire and wireless and wired remote control available . Wire covers to protect wires from wear and tear .
Part number: XM-XU701
Rated line pull: 2000 lbs., (906kg) single-line ,4000lbs in pulley block
Motor: 12V DC 0.9HP Permanent Magnet motor
Remote Control: Remote Switch, 12' (3.7m) lead.
Wireless Remote Control: Included or Optional
Geartrain: Single Stage Planetary.
Gear Ratio: 153:1
Clutch (freespooling): Split Ring Gear
Brake: dynamic
Drum Diameter/Length: 1.24''/2.80'' (31.5mm/71mm)
Wire Rope: 32.2', 5/32'' diameter ( 9.2m, 4.0 diameter)
Fairlead: Roller
Mounting Bolt Pattern: 3..13"(79.5mm)
Winch Dimensions ( L x W x H ): 10.95'' x 3.94'' x 4.30'' (278x 100 x 109mm )
Packing Dimensions( L x W x H ): 15.7''x 7.9'' x 8.7'' ( 400 x 200 x 220mm )
Shipping Weight: 7kg ( 15.5bs)

Prod Model:	XM-XU701
Weight:	Light
Pulling:	2000 Lb
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Certification:	RoHS
Pull Direction:	Forward and Backward
Electric Winch Model:	Utility & ATV
Working Voltage Of Electric Winch:	12 or 24 V
Brand:	Xi Man
Applicable Environment:	All
