Reliable and Durable 4X4 Truck Winch with 10000 Lb Pulling

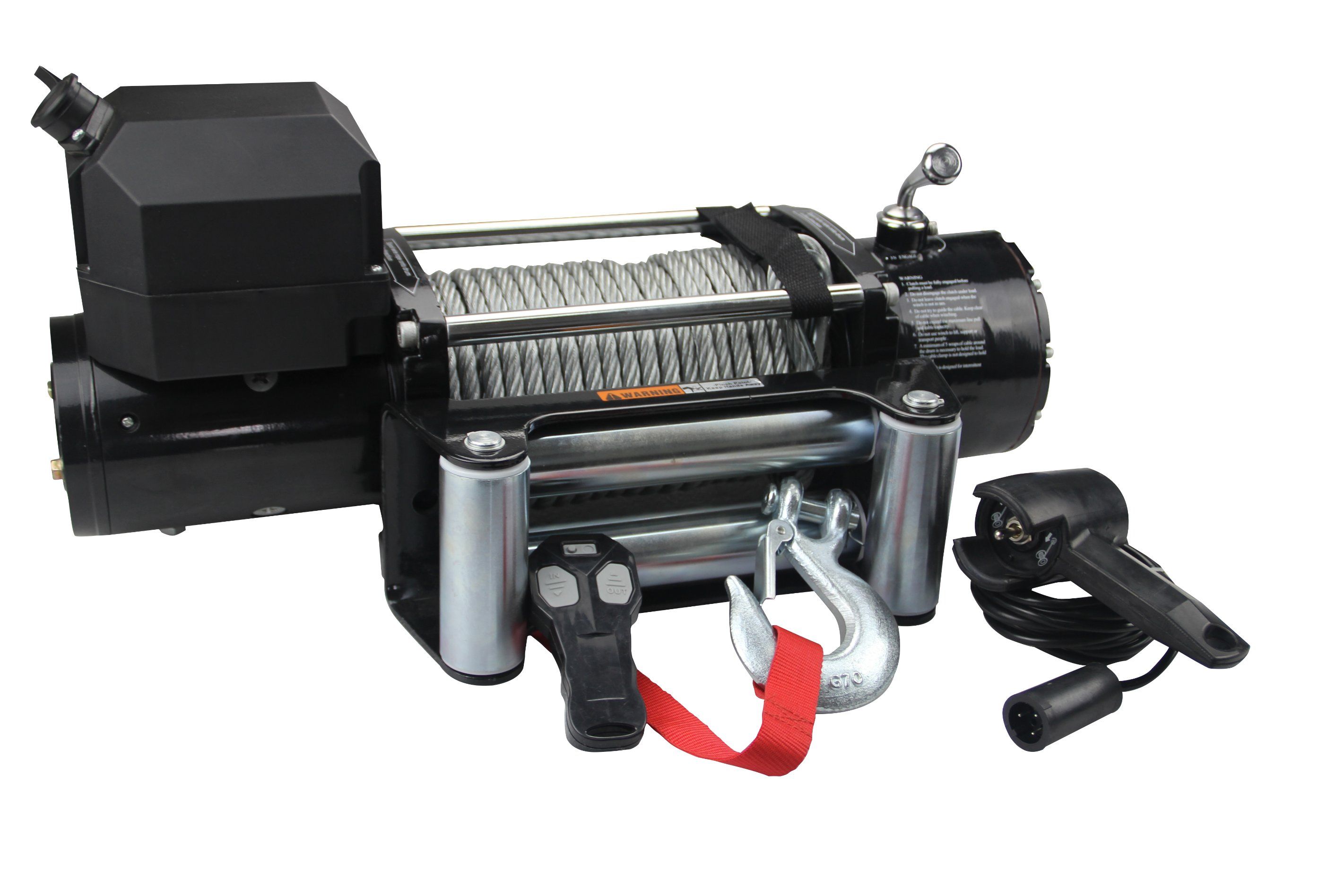

Name: Reliable and Durable 4X4 Truck Winch with 10000 Lb Pulling
Brand: ibuyautoparts.com
SKU: 839685865
Availability: InStock
Rating: 4.7 (32 reviews)

Price:	US $ 155-163PCS
Min Order:	24PCS
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

12000 LB Features and Specifications :
Part Number : XM-TE937
Performance:            12 V or 24 DC
Single line rated pull: 10,000lbs ( 4530kg)
Motor:                       6.0hp/4.5 kw series -wound
Braking action:           Automatic locking with motor
Clutch:                        Sliding ring gear
Gear train :                  3 -stage planetary
Gear ratio:                   265: 1
Remote Switch:         12ft ,wire remote control with black handbar ,wireless remote control ready
Battery:                       Recommended:650CCA minimum for winching
Battery Leads:            2 Gauge 72"(1.83m)
Fairlead:                   4-way roller fairlead
Steel cable:               Ф9.5 x 88 ft (Ф9.5 x 27 m )
Weight:                       96 pound (42.5kg )
Overall dimension:     21.3" x 8.6" x 6.3" (550mm x 220mm x 160mm)
Mounting bolt pattern: 10" x 4.5" (254mm x 114.3mm)
Line Speed And Amp Draw ( First Layer )

Prod Model:	XM-TE37
Weight:	37.50 Kg
Warterproof:	IP67
Durable Cycle:	10000 Times
Warranty:	13 Months
Pulling:	10000lb
Type:	Electric Winch
Power Type:	Series Motor DC
Certification:	RoHS
Pull Direction:	Forward and Backward
Brand:	Xi Man
Applicable Environment:	All
Working Voltage Of Electric Winch:	12 or 24 V
Electric Winch Model:	Truck Jeep Trailer

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.

Thanks
