Powerful Pulling 15000 Lb Durable Heavy Weight Winch

Name: Powerful Pulling 15000 Lb Durable Heavy Weight Winch
Brand: ibuyautoparts.com
SKU: 729492262
Availability: InStock
Rating: 5 (130 reviews)

Price:	US $ 181-187/Piece
Min Order:	12/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

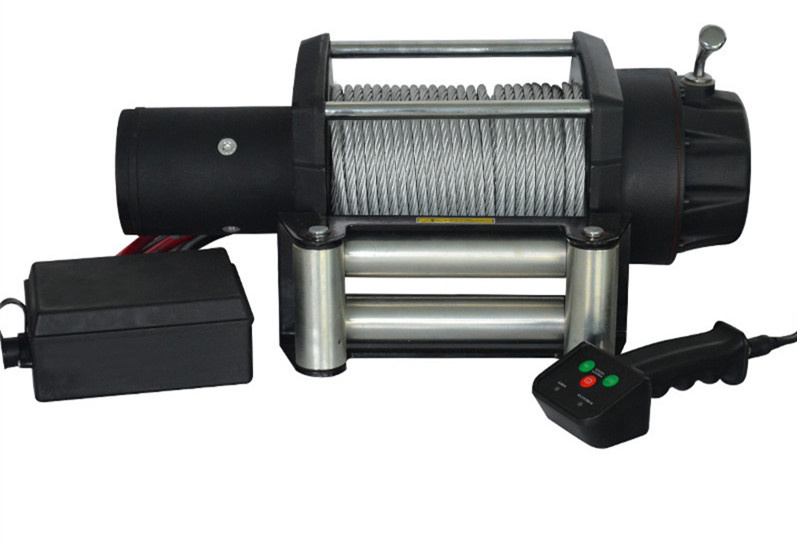

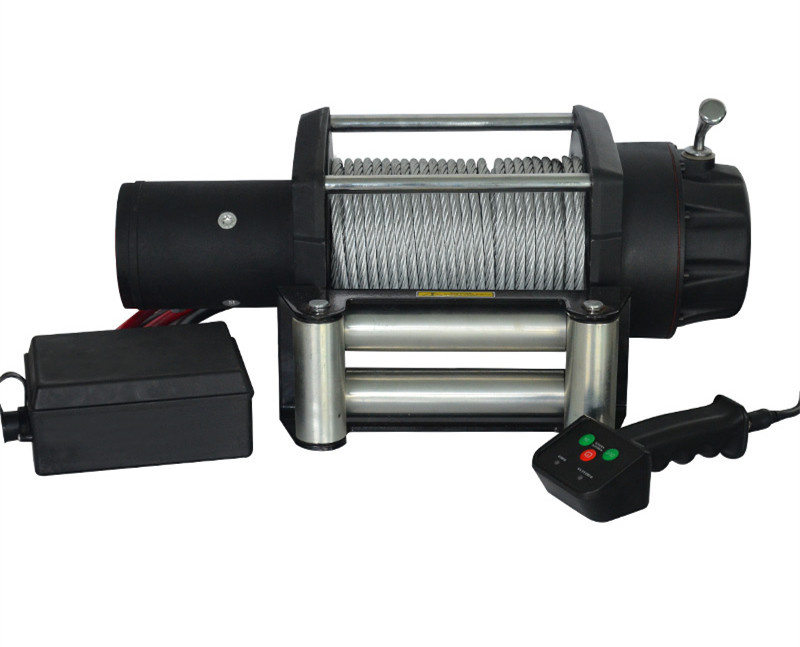

Heavy duty weight 15000 lb 4x4 truck winch

HEAVY WEIGHT winch designs to big trucks and trailers Brutal torque & extreme horsepower series wound motor-sealed . More stronger two supporting aluminum brackets with waterproof o-rings . Sliding ring gear with classic design to make clutch "IN" or " OUT " easily .All steel gears to increase the strength and durable of them and run smoothly and quietly . 500 A IP67 solenoid , 11ft wired remote control ,wireless kits included (remote wire can be separated from handle bar ) 1/2 hook & strap with 4 -way roller .

Features and Specifications :
PN: XM-TE908
Performance: 12 V or 24 V DC
Single line rated pull:   15000lbs ( 6795 kg) single line
Motor: 7.0 hp/5.2kw series -wound
Braking action: Automatic locking with motor
Clutch: Rotating and sliding ring gear
Gear train : 3 -stage planetary with steel gears
Gear ratio: 364: 1
Remote Switch: 11ft ,wireless remote control integrated with Wired remote control
Battery: Recommended:650CCA minimum for winching
Battery Leads:         2 Gauge 72"(1.83m)
Fairlead:             4-way roller fairlead
Steel cable:          25/64" x 85' (Ф10 x 26 m )
Weight:              119 pound (54kg )
Overall dimension: 22.9" x 6.7" x 7.2" (582mm x 170mm x 182mm)
Mounting bolt pattern: 10" x 4.5" (254mm x 114.3mm)

Line Speed And Amp Draw ( First Layer )

Line Pull	lb	NO	5500	8000	10000	12500	15000
Line Pull	kg	LOAD	2491.5	3624	4530	5662.5	5665
Line speed	ft/ min	28.9	14.3	10.2	8.5	6.1	4.7
Line speed	m/ min	9.5	4.7	3.1	2.6	2.01	1.55
Motor current	Amps	78	207	238	306	338	408

Line Pull And Cable Capacity

Layer of cable		1	2	3	4
Rated line pull per layer	lb	15000	12500	9750	6500
Rated line pull per layer	kg	6795	5662.5	4416.75	2944.5
Length of cable on drum	ft	17.8	38.2	64.2	72
Length of cable on drum	m	5.93	12.73	19.57	24.00

Optional accessories :
Winch gloves ,winch cover , snatch block ,tow hook , ...ect

Prod Model:	XM-TE908
Feature:	Heavy Duty
Pulling Rate:	15000lb
Weight:	54kg
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Certification:	RoHS
Pull Direction:	Forward and Backward
Brand:	Xi Man
Applicable Environment:	All
Working Voltage Of Electric Winch:	12 or 24 V
Electric Winch Model:	Truck Jeep Trailer

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.

Thanks
