CCTV Pipe Inspection Camera Parts Detachable CCD Camera Head

Name: CCTV Pipe Inspection Camera Parts Detachable CCD Camera Head
Brand: ibuyautoparts.com
SKU: 717073485
Availability: InStock
Rating: 4.6 (141 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	VS-1814
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	UL, FCC,SGS
Testing Equipment Type:	CCTV Pipe Inspection Camera

Product Description

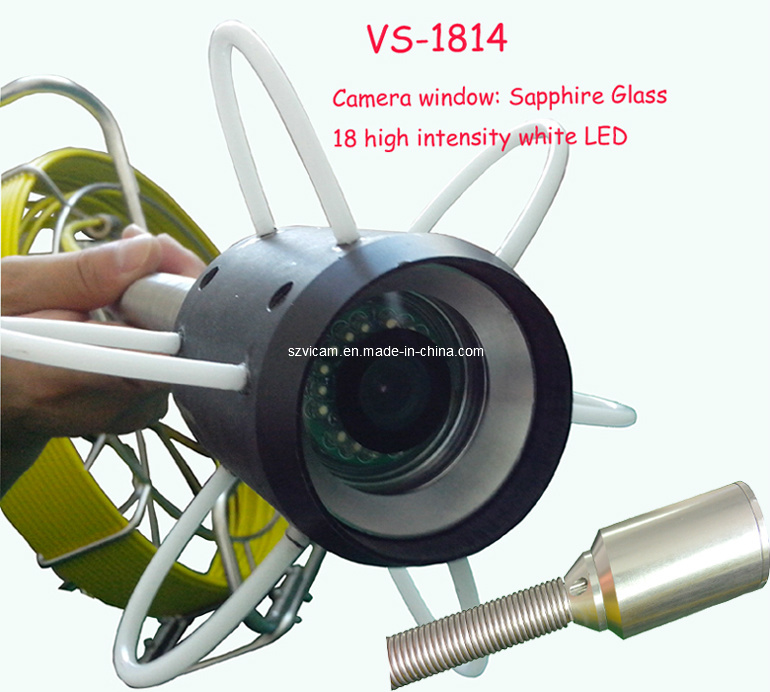

CCTV pipe inspection camera parts detachable CCD camera Head

* 1/3" Color CCD 600 TV lines
* Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm
* Waterproof: Yes, IP68
* Self-leveling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: Sapphire glass
* 3 size Camera skids for different pipe diameter use

CCD Aluminum Camera data
1	camera size: Φ50mm×89mm ;
2	camera housing material: Aluminum
3	camera window: sapphire glass
4	connecting type: golden pins slip-ring connection
5	sensor: 1/3" color CCD
6	field of view: 90°
7	resolution: PAL:752H×582V NTSC: 768H×494V;
8	horizontal definition: 600TVL;
9	picture: Self-leveling
10	S/N rate: >48dB(AOC on)
11	electronic shutter: 1/50(1/60) - 1/100000 s
12	sensitivity: 0.01Lux
15	video output: 1.0 Vp-p / 75Ω
16	lighting: 18 high intensity white LED, brightness adjustable
18	waterproof: yes, class IP68
19	working voltage: DC 12V
20	working current: 63mA Max
21	operating temperature: -10ºC~60ºC

Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.

Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.

Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.

We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
