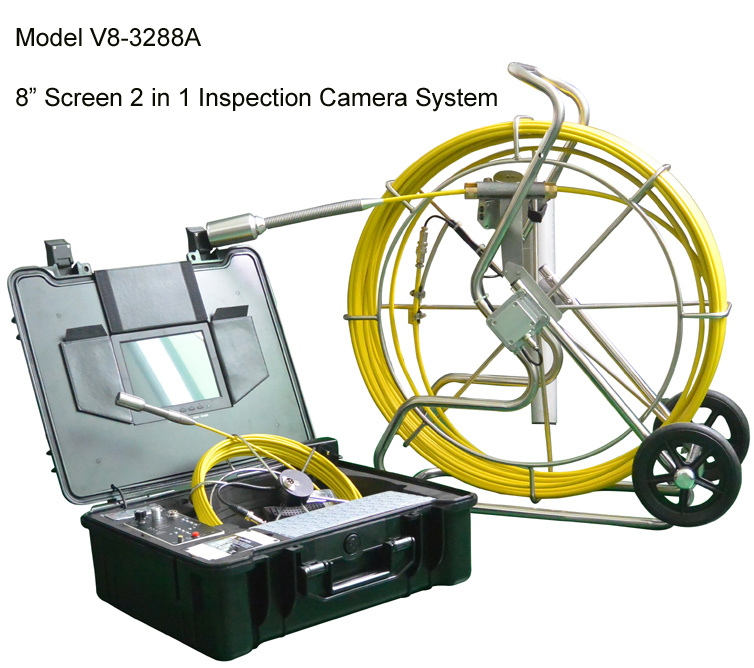

8" Screen 2 in 1 Inspection Camera System (V8-3288A)

Prod Model:	V8-3288A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	UL, SGS

Product Description

8" Screen 2 in 1 inspection camera System

Camera Head

* CCD color 600 TV lines

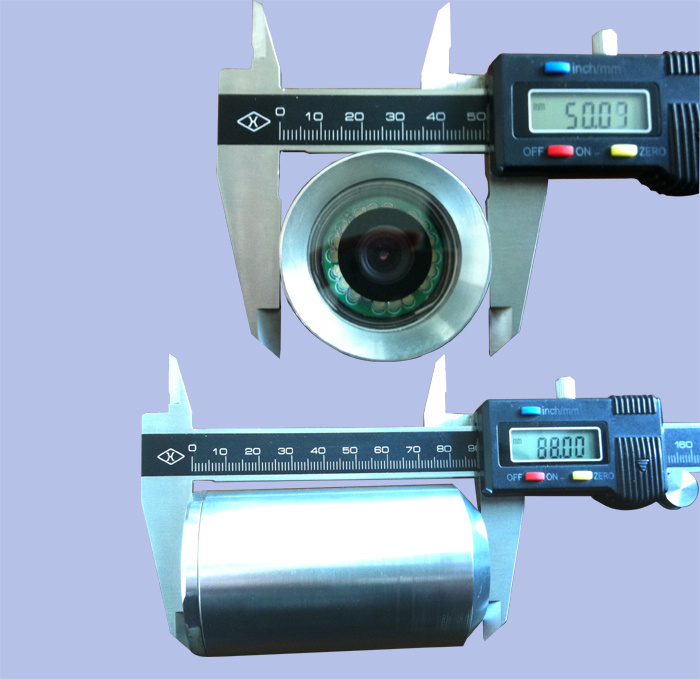

* Camera head size Φ 50 X 88mm for pipe Φ 100mm and up
* Image sensor 1/3 inch
* Self-leveling picture
* Field of view 90°
* Camera lighting 18 white LEDs
* 3 size camera skids for different pipe diameter use(110, 154, 230)

Cable Reel with Meter Counter
* Counter device error rate less than 0.1%
* Stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)
Portable Snake rod push cable with stainless steel Camera Head
* Camera head size Φ 23 X 45mm for pipe Φ 25mm and up
* Fiberglass Φ 5.2mm rod push cable reel 20m (30m, 40m optional)

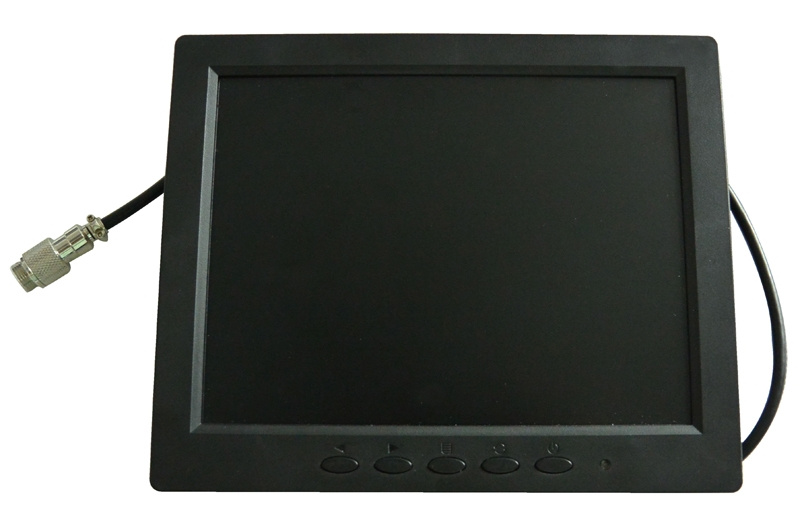

Monitor

* 8 inch TFT LCD monitor
* Power supply DC 12V

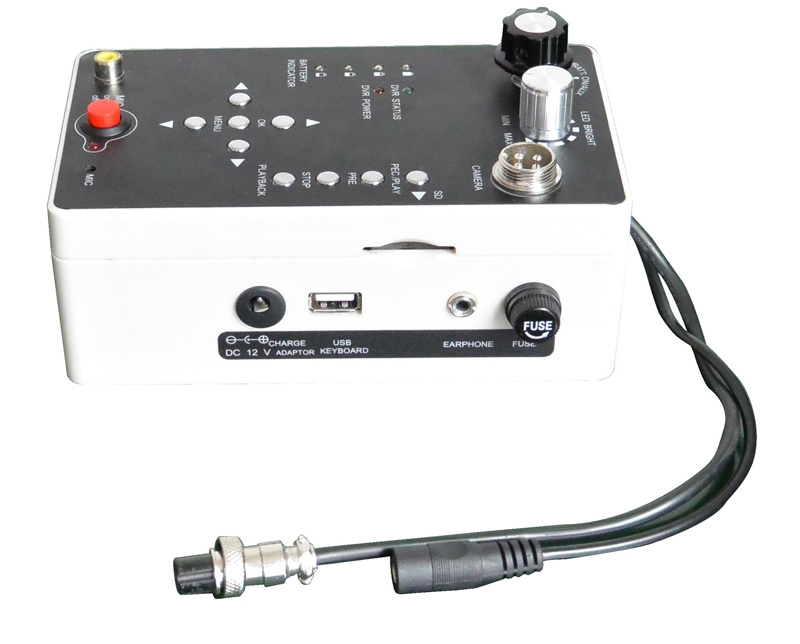

DVR Control Box

* DVR power supply 12V DVR work current 200mA
* Storage medium SD card (8G SD card)
* Li-ion Battery power supply (18650 X 9 PCS 6600 mAh)
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)

Unit control carrying case
* ABS Carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Delivery time 1 week
