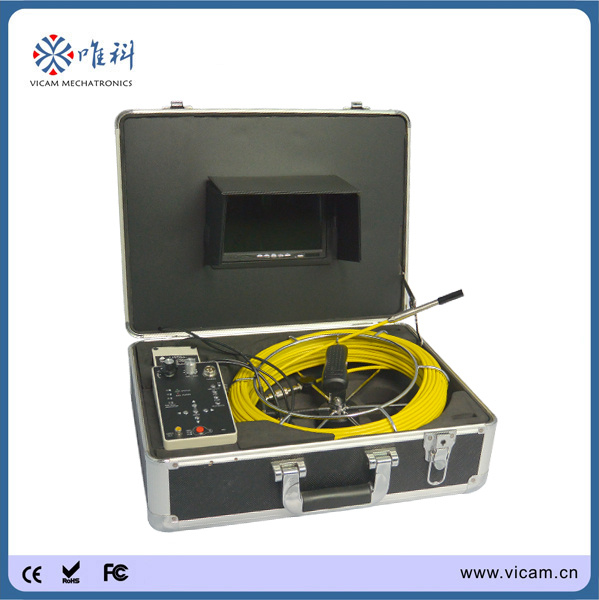

Vicam Sewer Pipe Inspection camera (V7-35)
Sewer Pipe Inspection camera Head
* Camera head size Φ 12 x100mm for pipe Φ 15 to 200mm
* Camera head casing material aluminum
* Camera lens window material sapphire glass
* Sensor size 1/5 inch
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 60°
* Camera lighting 6 pcs high intensity white LED
Sewer Pipe Inspection camera Monitor
*7 inch TFT LCD color monitor
* Power supply DC 12V
* OSD language: English
* mirror image
* Sunshade included
Sewer Pipe Inspection camera DVR Control Box
* 12V DVR work current 200mA
* Storage medium SD card jack
Cable Reel
* Stainless steel Cable Reel size Φ 320 x 110mm
* 20m Φ 5.2mm fiberglass rod push cable (30m, 40m optional)
Battery & Charger
* 4400mA Li-ion Battery pack power supply
* AC110-240V to DC12V charger
* Charging time 5 hours, working time 6 hours
Carrying case
* Aluminum carrying case size: 460x340x190mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Payment Terms
* Payment terms: T/T, Western Union 30% deposit, balance before shipment;
* Trade term: FOB, CIF & EXW are available;
Packing & Shipping
* 2 pieces cases in one carton
* DHL express
* All products will be tested & inspected before delivery
* Tracking No. Will be sent after delivery
Warranty
* One year warranty, whole life service;
* Any problem, freely return within one week;
Why Vicam
* We as a leading manufacturer specialize in pipe inspection systems & cameras.
* Rich experience of 8 years to design, produce and export.
* France CYBERIA SAS, and Shenzhen Institutes of Advanced Technology support.
* Professional engineers guarantee the reliable products.
* Strong production line provide best price, good quality and fast delivery.
* Inquiry will be replied within 24 hours
Contact Us
* Shenzhen Vicam Mechatronics Co., Ltd
* ADD: 6/F., Block 11 North Area, Shangxue Industrial Park, Bantian, Shenzhen, China
* Web: www.vicam.cn;
* TEL: +86 755 8920 2820
* FAX: +86 755 8920 2819
|
Brand Name |
VICAM |
|
Mode |
V7-35 |
|
Type |
sewer Pipe Inspection Camera |
|
Style |
Inspection camera |
|
Sensor |
CMOS |
|
Special Feature |
Waterproof / Weatherproof |
|
camera diameter |
12mm |
|
LED Lighting |
6 pcs white LEDs |
|
Monitor Size |
7 inch LCD |
|
Viewing Angle |
60 degree |
|
Camera Lens |
Sapphire glass |
|
Camera materail |
Stainless steel |
|
Cable Length |
20m-50m soft cable with camera |
|
Certification |
CE, FCC, RoHS |
|
Equipment |
Aluminum case, monitor, DVR control box, cable reel, skids, battery pack and charger |
Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
