| Prod Model: |
V10-3188DT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Monitor: |
10 Inch HD LED Monitor |
| Camera Head: |
Diameter 23*68mm |
| Camera Head Material: |
Stainless Steel |
| Camera Lens: |
Sapphire Glass |
| Field Of View: |
120 Degree |
| Camera Lighting: |
12PCS High Intensity White LED |
| Cable Length: |
20m to 50m Optional |
| Cable Mterial: |
Fiberglass Push Rod Cable |
| Battery: |
12V 6600mA Rechargeable Li-ion Battery |
| Carrying Case Material: |
ABS |
| Certification: |
GS |
| Update Method: |
by Hard Disk |
Product Description

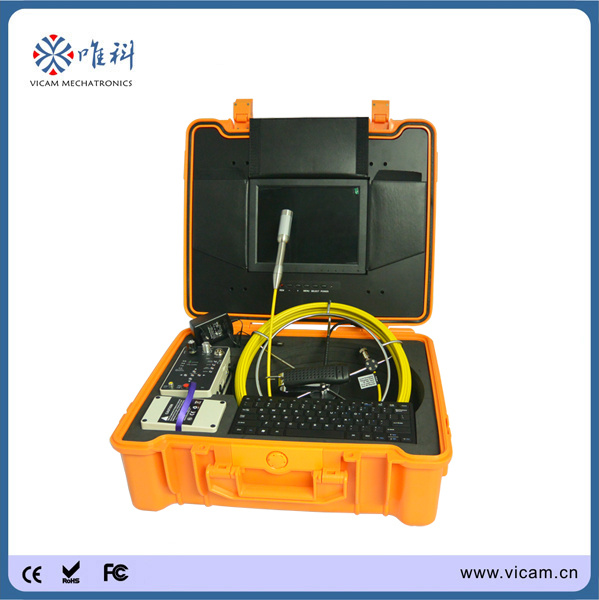

512 hz sonde battery operated wireless CCTV DVR borehole inspection camera
Pipe inspection camera quick view
* 10 inch HD LED monitor with sunshade, can be used under strong sunshine
* Live image camera
* 12pcs high intensity white LED lights, good night vision effect, brightness adjustable
* Diameter Φ 23mm Hardware stainless steel camera head, solid durable, anti-corrosion and waterproof
* Field of 90°
* Waterproof IP68
* 6600mA rechargeable li-ion battery pack
* Φ 5.2mm*20m fiberglass push rod cable(20m to 50m optional)
* DVR function easy record and replay video, sound, image
* Keyboard, txt input, help to mark improtant message
*Portable ABS engineering carrying case, pressure-proof, waterproof, and portable with all parts included
* Widely used in drainage inspection, sewage inspection, pipe inspection, industrial plumbing pipeline inspection, etc.
Pipe inspection camera specific information
Pipe inspection camera head
*With 512hz transmitter
* Camera head size Φ 23 x 45mm for pipe Φ 25 to 200mm
* Camera head casing material stainless steel
* Camera lens window material sapphire glass
* Sensor size 1/4 inch CMOS camera
* Total Pixels PAL 720X576 NTSC 720X 480
* Field of view 120° , IP68 waterproof
* 12 pcs high intensity white LED
Pipe inspection camera monitor
* 10" HD LED monitor
* Brightness: 400cd/m2
* 4: 3 display model
* Resolution: 1024*768
Pipe inspection camera DVR control box
* DVR control buttons
* SD card (max 64G) jack
* LED brightness adjusting knob
* A / V & photo selection available
* On/off microphone control button
Pipe inspection camera battery pack
* 6600mA Li-ion battery
* AC110V-240V 1.5A power charger
* Charging time 5 hours, working time 6 hours
Pipe inspection camera cable reel
* Fibreglass push rod cable with meter counter
* Cable diameter Φ 5.2
* Cable length from 20m to 50m optional
* Reel size Φ 320x110mm
Carrying case
* ABS carrying case size: 520X435X200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Pipe inspection camera features and benefits
* 12 pcs high brightness LEDs lighting can easily check all pipes problem inside
* USB jack for keyboard support to typewrite real time any information you need
* 10" HD LED monitor give you a good quality image.
* Portable ABS engineering case with all parts easy to carry
Advantage of pipe inspection camera
1 CE FC RoHS UL SGS supported
2 We as a leading manufacturer specialize in pipe inspection systems & cameras.
3 Rich experience of 8 years to design, produce and export.
4 France CYBERIA SAS, and Shenzhen Institutes of Advanced Technology support.
5 Professional engineers guarantee the reliable products.
6 Strong production line provide best price, good quality and fast delivery.
7 Inquiry will be replied within 24 hours
8 2 years warranty
Packing
ABS carrying case and Carton box
ABS carrying case size; 520*435*200mm
1 set/ CTN
Carton box size: 520*450*205mm
Delivery
Withing 2 to 10 working days according to the order
Shipping
DHL express
All products will be tested & inspected before delivery
Tracking No. Will be sent after delivery
|
Brand |
VICAM |
|
Model |
V10-3188DK |
|
Type |
Analog camera |
|
Special featurers |
with 512hz transmitter |
|
Spectial features |
Waterproof / Weatherproof |
|
Camera head size |
diameter23mm |
|
Field of view |
120 degree |
|
Packing |
ABS carrying case and carton box |
|
Aluminum carrying box size |
520*435*200mm |
|
1pcs/ctn carton box size |
520*205*450mm |
|
2pcs/ctn carton box size |
538*438*480m |
Vicam Mechatronics Co., Ltd is a professional manufacturer located in Shenzhen, South of China, specialising in the design, manufacturer and assembly of video inspection systems. Focusing on the pipeline inspection cameras and underwater cameras system, we have experience over 8 years and a complete product range.
Our main product range include portable pipeline video inspection system, underground sewer pipe inspection system and special inspection cameras i. e. Vehicle engine inspection, chimney inspection and CCTV robots for complex applications and hazardous area rated environment.
Our main market is Europe, US, Australia, South America etc. And all products approved with CE, RoHS, UL, FCC certificates.
We have complete after sale service policy. Each of Vicam product has 1 year quality guarantee. Also we provide technology support to all our clients and 3% free charge spare parts for each shipment.
