Name: Wld9300 Used Spray Booth for Sale
Brand: ibuyautoparts.com
SKU: 816169725
Availability: InStock
Rating: 4.6 (24 reviews)

Price:	US $ 5000-25000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

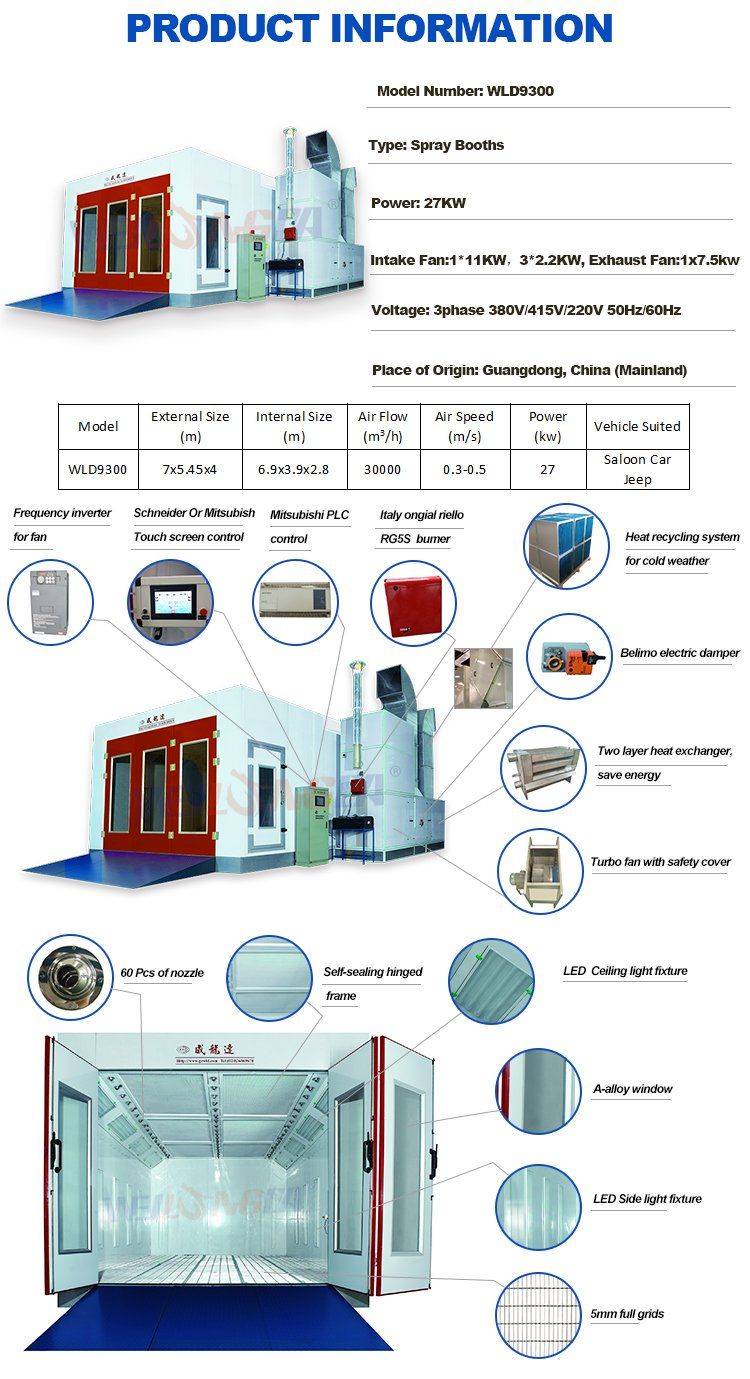

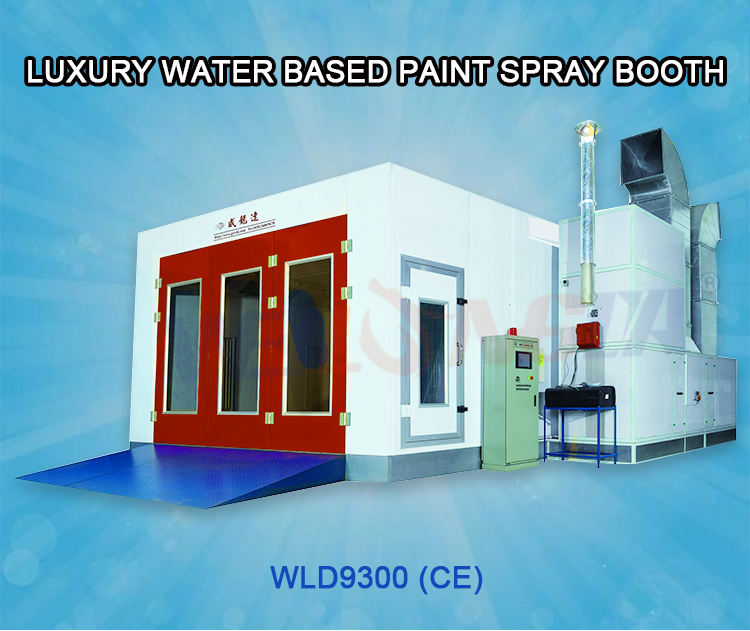

WLD9300 (CE) Used Spray Booth for Sale Specifications:

Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.

Basement: Galvanized steel sheet and square steel pipe construction. Whole grids with floor filter. Full ramps.

Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door. Watching window with aluminum frame.

Air Circulation System: 1x11kw direct drive intake fan, 1x7.5kw direct drive exhaust fan. BELIMO 20N electric damper.

Water Based Paint Drying System: 60 units ceiling nozzles with 3 sets of 2.2kw motor fans.

Burner: Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time 4-5min(20-60^.C). Max. temperature
at 80^.C. Fuel consumption is 5-6kg/vehicle.

Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.

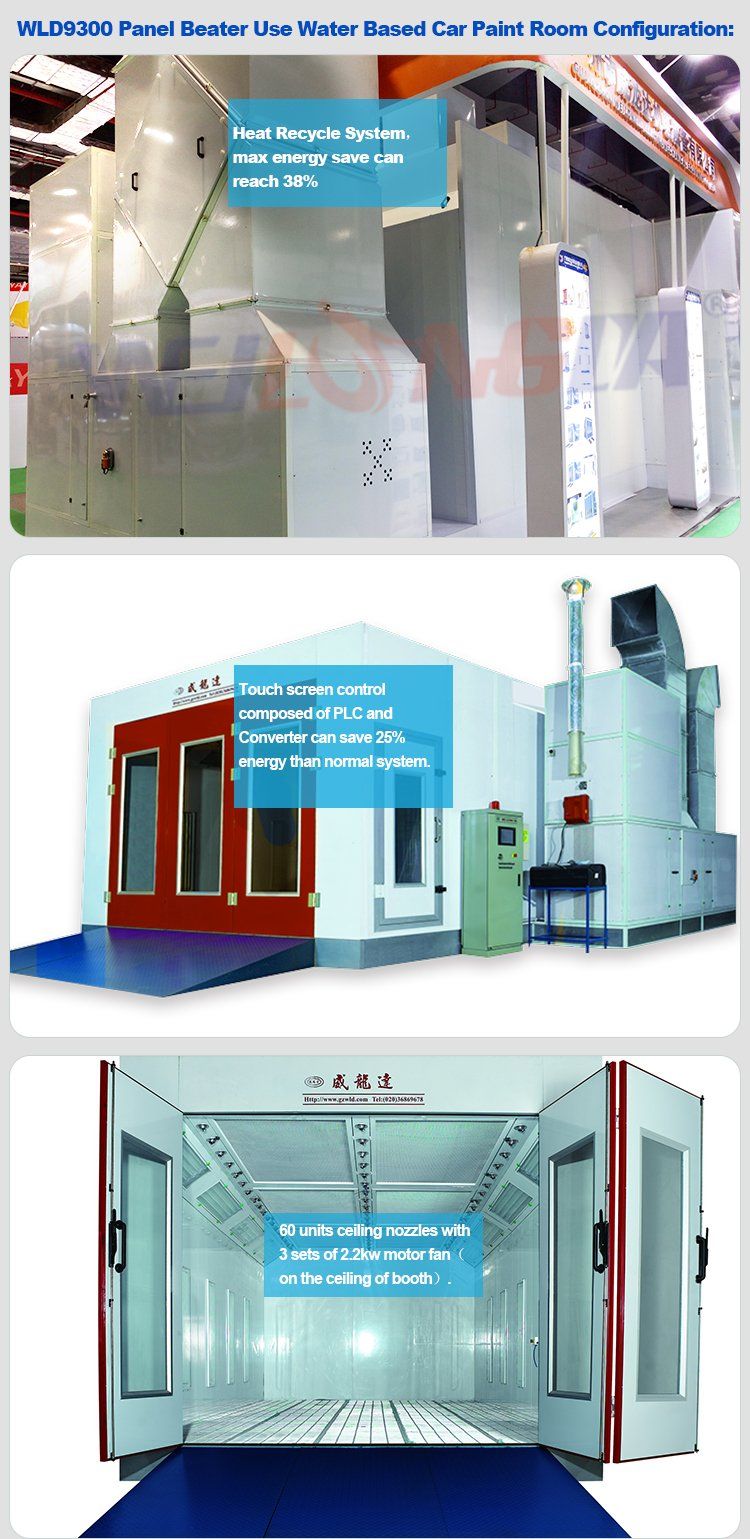

Heat Recycle System: Are recuperative, moisture is not recovered. The heat passes through thin plates, with recovery levels of up to 38%. The air streams are strictly separated, whenever solvents are used, the intake and exhaust streams have to be kept absolutely separate. That frequently makes the cross plate heat exchanger the perfect solution. The amortization period is short. Often less than two years.

Lighting System: Ceiling light has 32 pcs of 18w LED LED lamps. Side light has 32 pcs of 18w LED LED lamps. 1200 Lux.

Air Purification: Dual filtering structure. The primary filter is M pattern nonwoven filter bags. It can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.

Control System: Touch screen control, the system is composed of PLC, Converter, air pressure transducer and Snyder electronic components. Automation Intelligent control which can save 25% energy than normal system.

Pollution Control System: Special configure with M pattern Active Carbon pocket Filter System.

Prod Model:	WLD9300
Heating System:	Full Recycle System
Heat Recycle System:	Yes
Water Based Paint:	Yes
Model:	Wld9300
External Size (M):	7X5.45X4
Internal Size:	6.9X3.9X2.8m
Air Flow (M3/H):	30000
Air Speed (M/S):	0.3-0.5
Power:	27kw
Lights:	32 Ceiling and 16PCS Side LED Light
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Type:	Car Spray Baking Booth
Substrate:	EPS or Rock Wool
Brand:	Weilongda

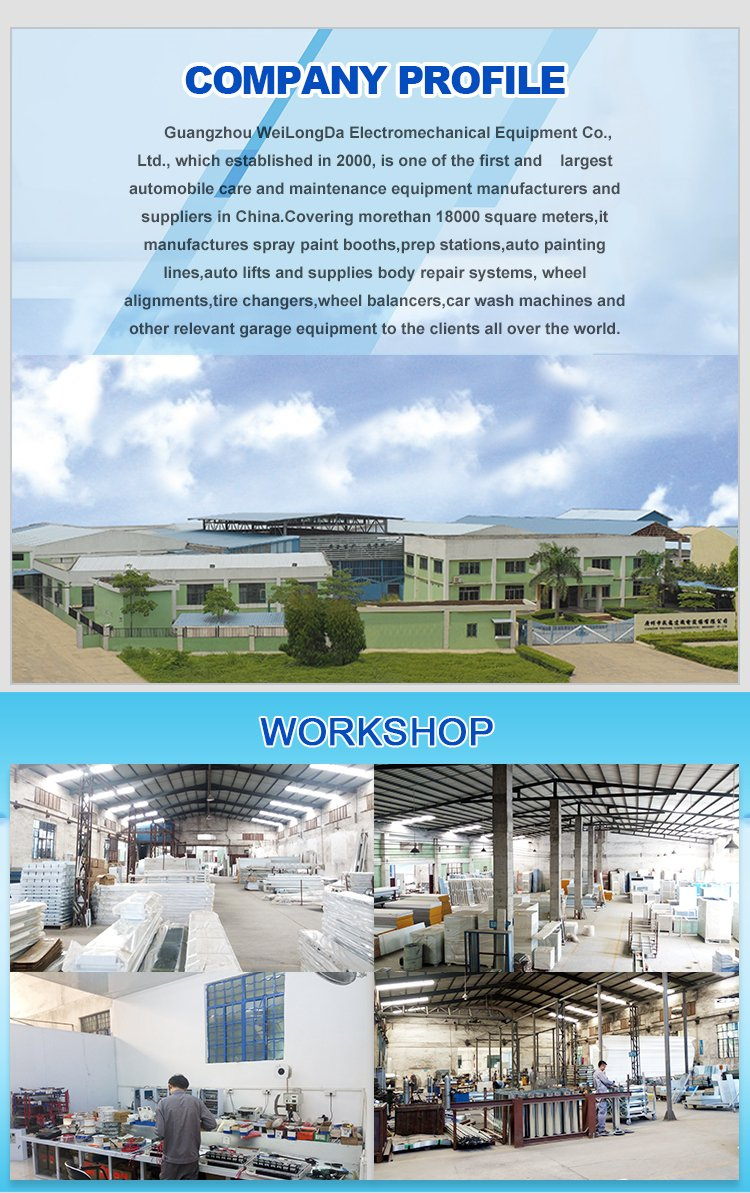

Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.

Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.

After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.

Please feel free to contact members of Weilongda and start a happy and win-win cooperation.
