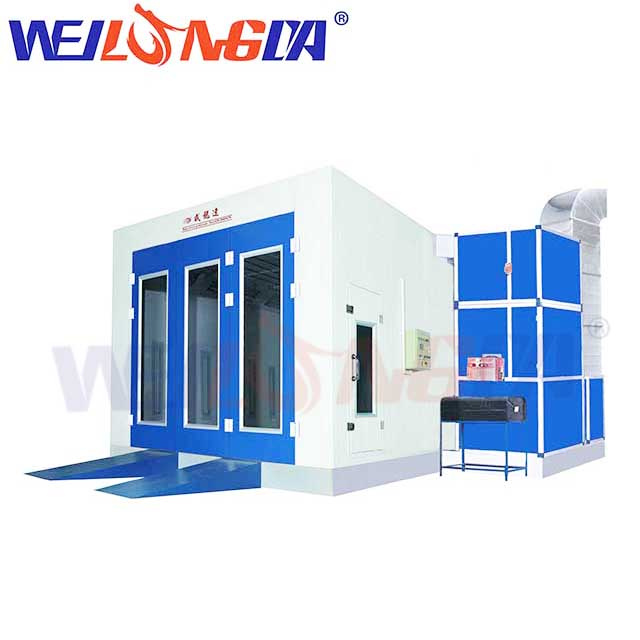

Wld8200 High Quality Car Spray Painting Cabin/Room/Chamber/Oven/Paint Booth (CE)

Name: Wld8200 High Quality Car Spray Painting Cabin/Room/Chamber/Oven/Paint Booth (CE)
Brand: ibuyautoparts.com
SKU: 643963435
Availability: InStock
Rating: 4.3 (74 reviews)

Price:	Negotiableset
Trade Terms:	FOB,CFR,CIF
Min Order:	1set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Wld8200 High Quality Car Spray Painting Cabin/Room/Chamber/Oven/Paint Booth (CE) Specifications:

1. CE, ISO, SGS certificate of painting oven,
2. Factory costs supply. Excellent quality painting oven
3. Real painting oven manufacturer in China.
4. 1 year warranty

Product description :

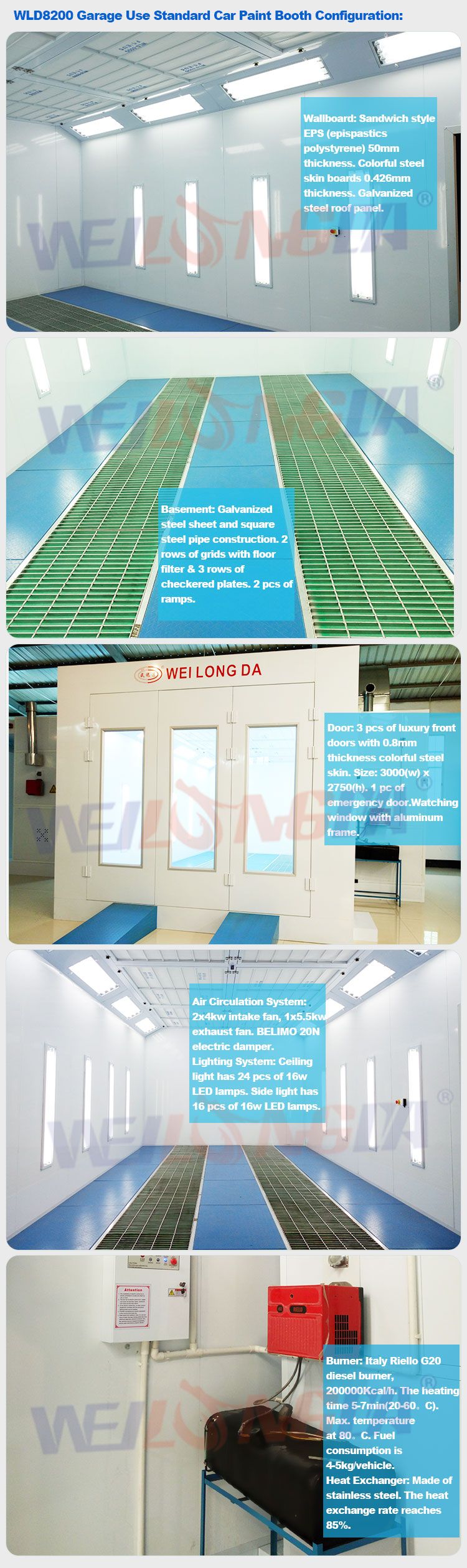

Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.426mm thickness. Galvanized steel roof panel.

Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.

Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door.Watching window with aluminum frame.

Air Circulation System: 2x4kw intake fan, 1x5.5kw exhaust fan. BELIMO 20N electric damper.

Burner: Italy Riello G20 diesel burner, 200000Kcal/h. The heating time 5-7min(20-60^.C). Max. temperature
at 80^.C. Fuel consumption is 4-5kg/vehicle.

Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.

Lighting System: Ceiling light has 24 pcs of 16w LED lamps. Side light has 16 pcs of 16w LED lamps. 900 Lux.

Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.

Pollution Control System: Multi-layer fiberglass filter.

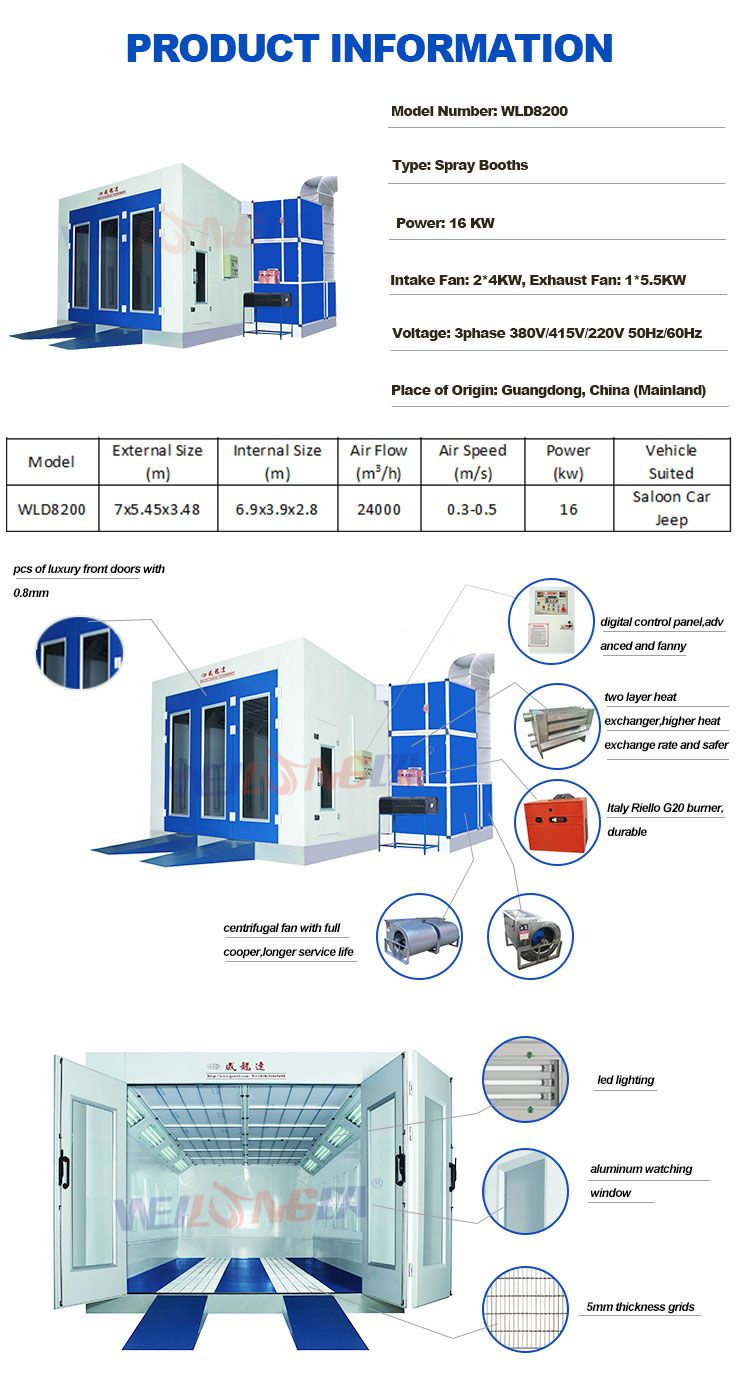

Prod Model:	WLD8200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Internal Size:	6.9X3.9X2.8m
External Size:	7X5.45X3.48m
Air Flow:	24000 M³/H
Air Speed:	0.3~0.5m/S
Power:	16kw
Basement,Cabinets:	Powder Coated
Heat Exchanger:	Two Layers
Duct:	Four Straight and One Elbow
Certificate:	Ce
Voltage:	220V/380V/415V/50Hz/60Hz
Certification:	TUV
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Type:	Spraying Baking Booth
Substrate:	Steel and Aluminum
Brand:	Weilongda
Airflow Direction:	Full Down Draft

Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.

Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.

After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.

Please feel free to contact members of Weilongda and start a happy and win-win cooperation.

With your join, the future is better.
