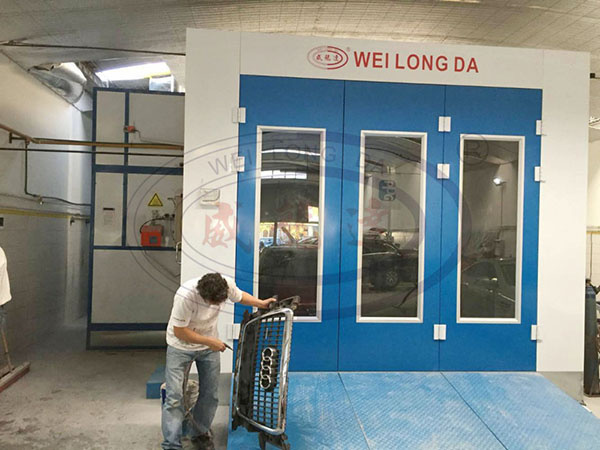

Wld8400 High Quality Downdraft Water Based Car Body Spray Painting Booth/Auto Spray Paint Booth

Name: Wld8400 High Quality Downdraft Water Based Car Body Spray Painting Booth/Auto Spray Paint Booth
Brand: ibuyautoparts.com
SKU: 760621895
Availability: InStock
Rating: 5 (83 reviews)

Price:	US $ 5000-20000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

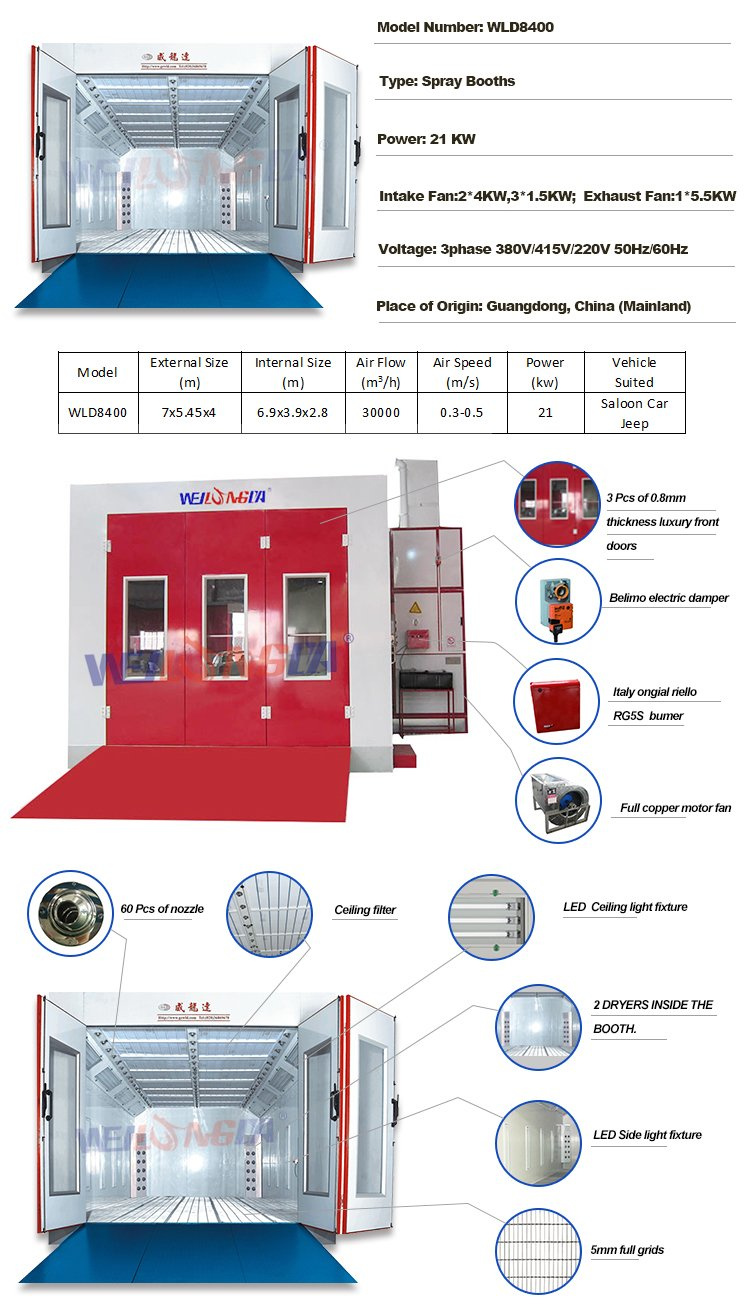

Wld8400 High Quality Downdraft Water Based Car Body Spray Painting Booth/Auto Spray Paint Booth Specifications:

Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.426mm thickness. Galvanized steel roof panel.
Basement: Galvanized steel sheet and square steel pipe construction. Whole grids with floor filter. Full ramps.
Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door.Watching window with aluminum frame.
Air Circulation System: 2x4kw intake fan, 1x5.5kw exhaust fan. BELIMO 20N electric damper.
Water Based Paint Drying System: 60 units ceiling nozzles with 3 sets of centrifugal fans and 2 sets of dryers inside the booth for Water Based Paint.
Burner: Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time 4-5min(20-60.C). Max. temperature at 80.C. Fuel consumption is 5-6kg/vehicle.
Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
Lighting System: Ceiling light has 24 pcs of 16w LED lamps. Side light has 16 pcs of 16w LED lamps. 900 Lux.
Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
Pollution Control System: Multi-layer fiberglass filter.

Prod Model:	WLD8400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Internal Size:	6.9X3.9X2.8m
External Size:	7X5.45X4m
Air Flow:	30000m³/H
Air Speed:	0.3~0.5m/S
Power:	21kw
Heating Type:	Diesel, Infrared Lamp, Natural Gas, LPG
Application:	Car, SUV Water Based Painting and Baking
Model:	Wld8400 Spray Booth
Custom Made:	Available
Wall Panel:	EPS, Rock and PU for Optional
Certification:	TUV, SGS
Airflow Direction:	Fully Undershot-type
Paint Mist Treatment:	Dry-type
Condition:	New
Type:	Car Spray Baking Booth
Substrate:	EPS or Rock Wool
Brand:	Weilongda
Heating Mode:	Diesel, Natural Gas for Option

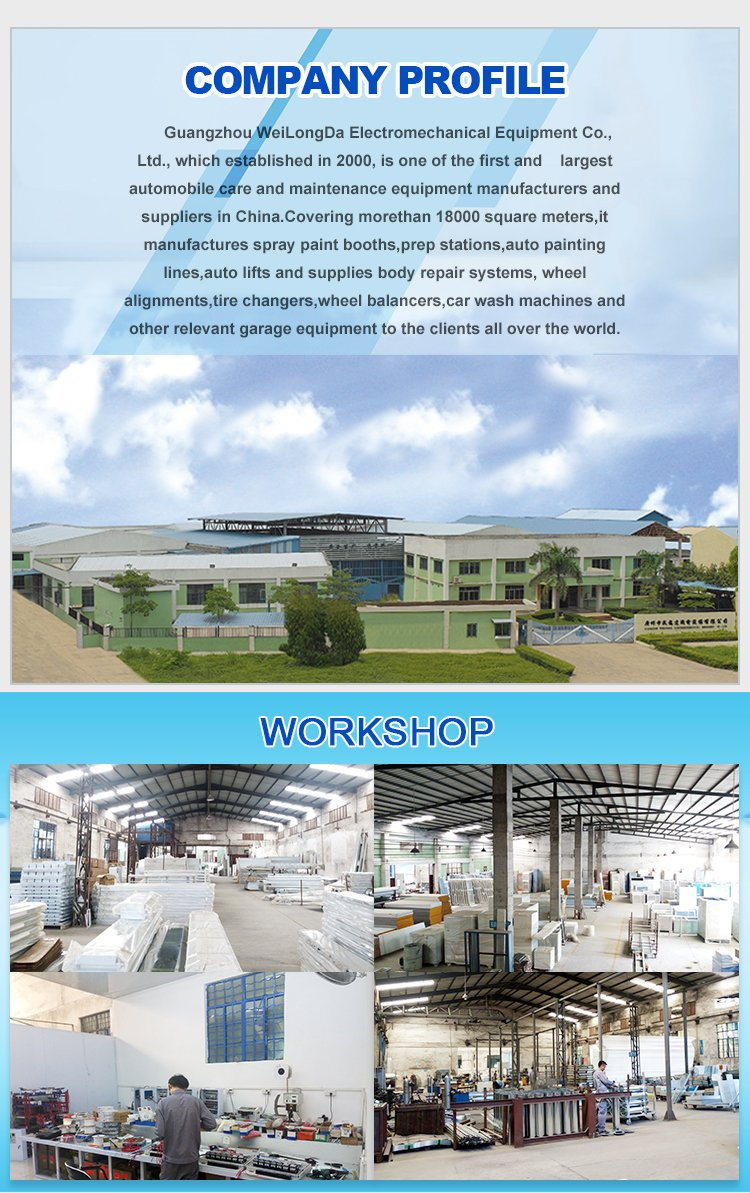

Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.

Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.

After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.

Please feel free to contact members of Weilongda and start a happy and win-win cooperation.

With your join, the future is better.
