Wld6200 Ce China Car Woodworking Paint Spray Booth/Painting Room with Filter

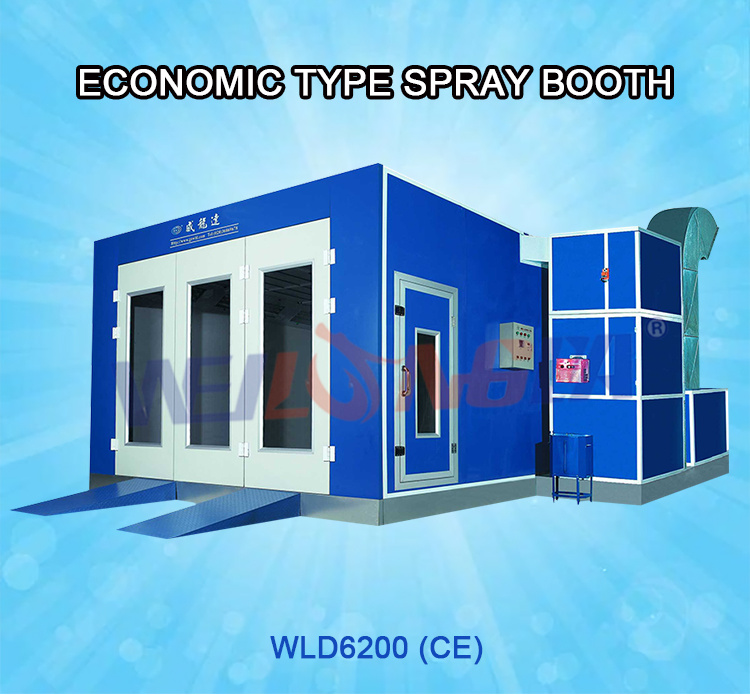

Name: Wld6200 Ce China Car Woodworking Paint Spray Booth/Painting Room with Filter
Brand: ibuyautoparts.com
SKU: 643951385
Availability: InStock
Rating: 4.4 (117 reviews)

Price:	US $ 8100-8500/Set
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

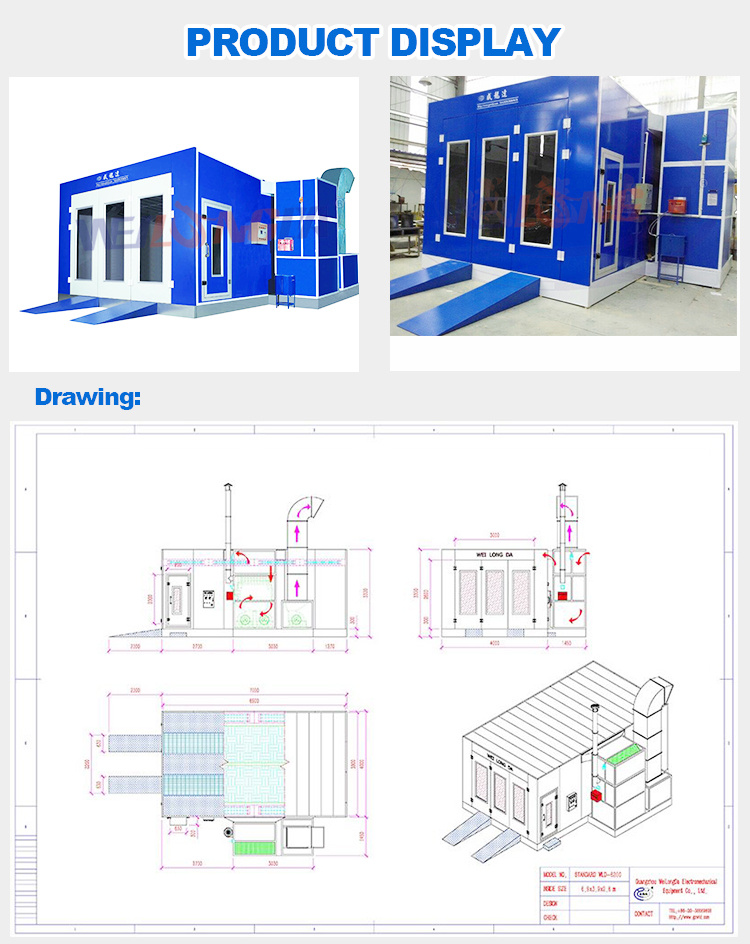

Wld6200 CE China Car Paint Spray Booth/Painting Room Configuration:

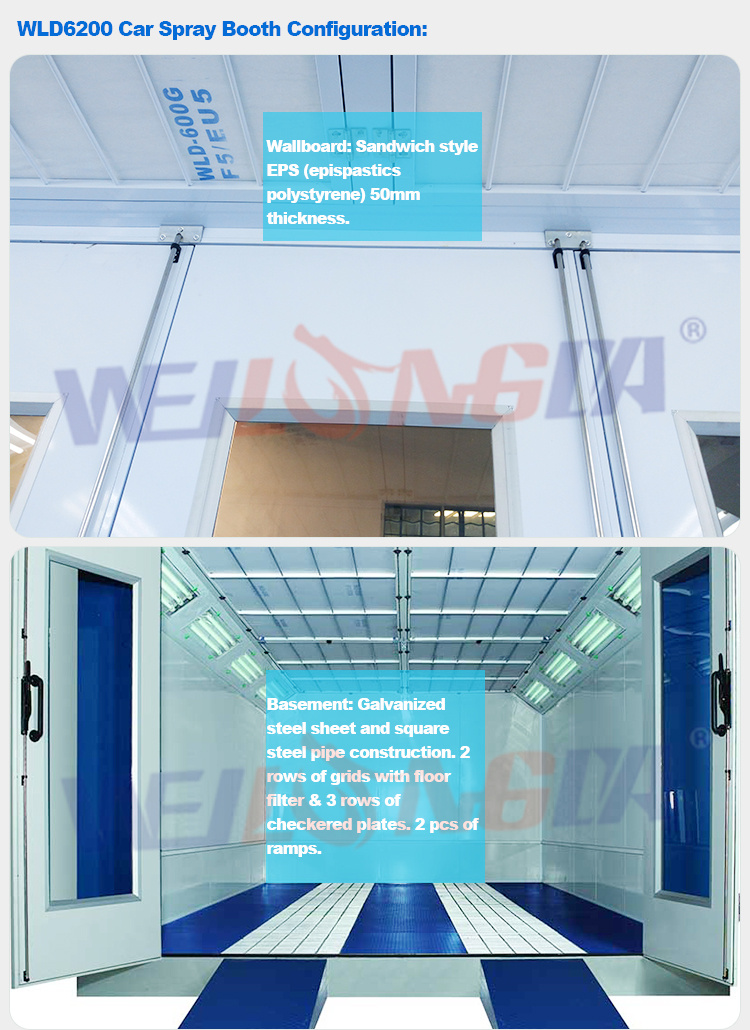

Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Galvanized steel roof panel.
Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.
Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2600(h). 1 pc of emergency door. Watching window with aluminum frame.
Air Circulation System: 2x3kw intake fan,1x4kw exhaust fan. BELIMO 20N electric damper.
Burner: Italy Riello G10 diesel burner, 100000Kcal/h. The heating time 7-9min(20-60^.C). Max. temperature
at 80^.C. Fuel consumption is 4-5kg/vehicle.
Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
Lighting System: Ceiling light has 24 pcs of 16w LED lamps. 800 Lux.
Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
Pollution Control System: Multi-layer fiberglass filter.

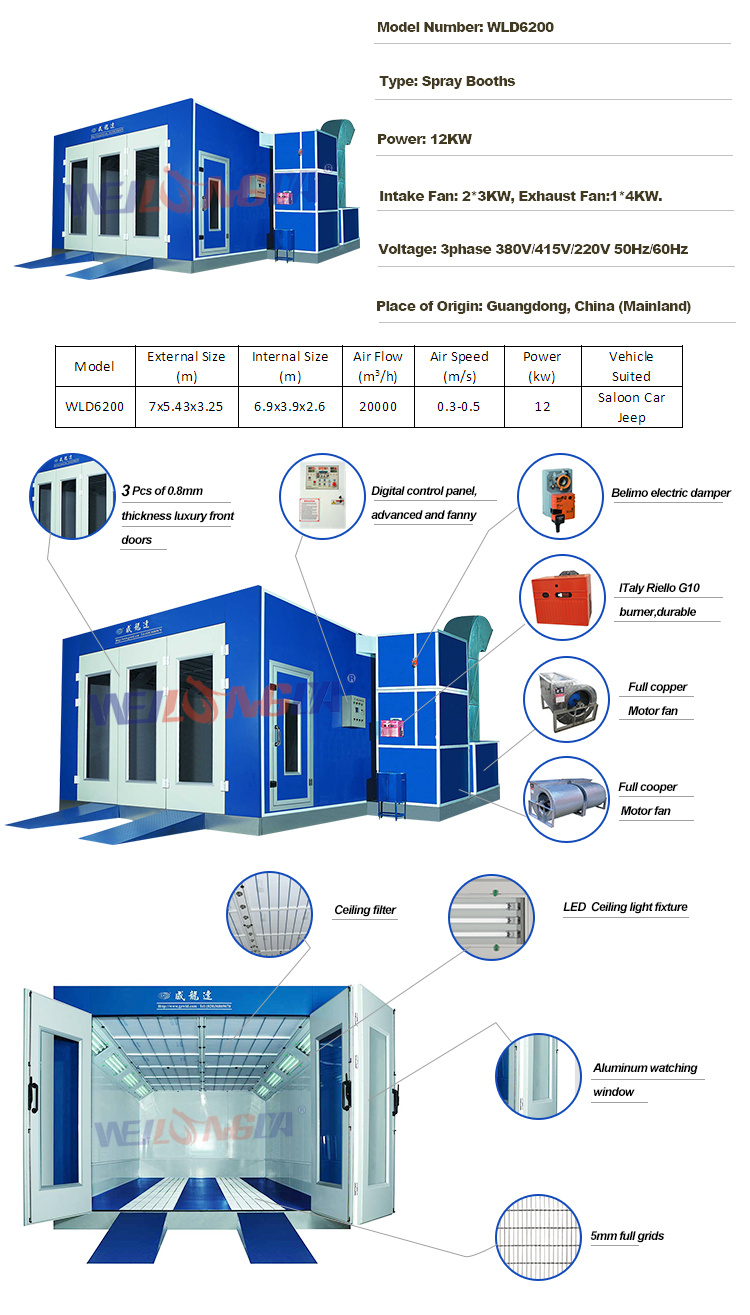

Model	External Size (m)	Internal Size (m)	Air Flow (m³/h)	Air Speed (m/s)	Power (kw)	Vehicle Suited
WLD6200	7x5.43x3.25	6.9x3.9x2.6	20000	0.3-0.5	12	Saloon Car Jeep

Prod Model:	WLD6200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Internal Size:	6.9X3.9X2.6m
External Size:	7X5.43X3.25m
Air Flow:	20000m³/H
Air Speed:	0.3~0.5 M/S
Power:	12kw
Warranty:	1 Year
Delivery Time:	5 Days
Heating System:	Diesel Burner
Voltage:	380V/220V 3pH AC 50-60Hz
Certification:	ISO, SGS, TUV
Paint Mist Treatment:	Dry-type
Condition:	New
Type:	Spraying Baking Booth
Substrate:	Steel and Aluminum
Brand:	Weilongda
Airflow Direction:	Full Down Draft Type
Heating Mode:	Diesel, Infrard, Natural Gas, LPG, Optional

Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.

Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.

After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.

Please feel free to contact members of Weilongda and start a happy and win-win cooperation.

With your join, the future is better.
