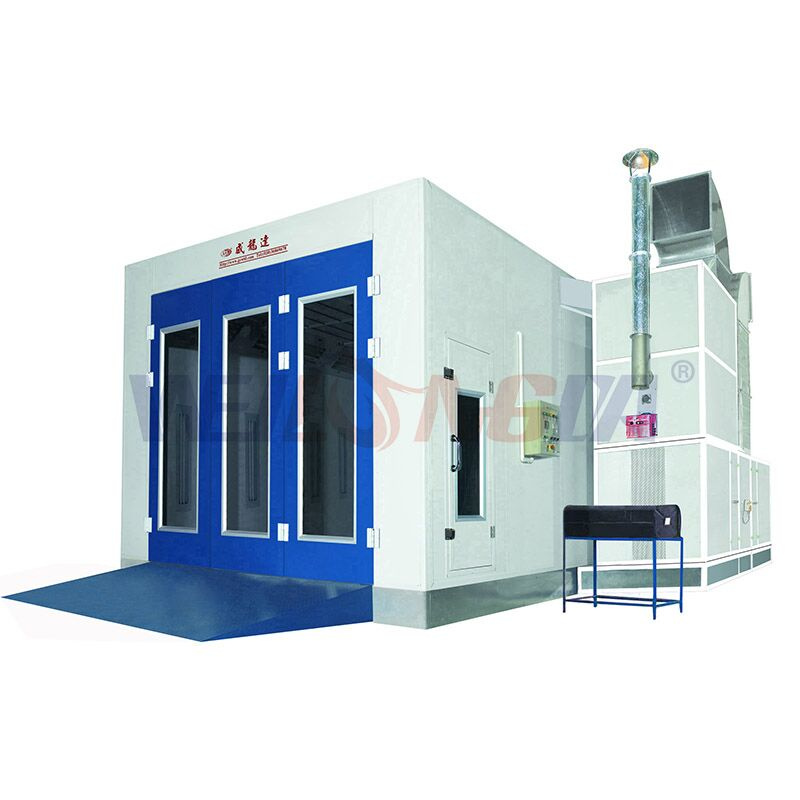

Wld9000 CE Best Quality Paint Booth/Car Spray Booth/Painting Room

Name: Wld9000 CE Best Quality Paint Booth/Car Spray Booth/Painting Room
Brand: ibuyautoparts.com
SKU: 693023955
Availability: InStock
Rating: 4.4 (33 reviews)

Price:	US $ 5000-20000/Set
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

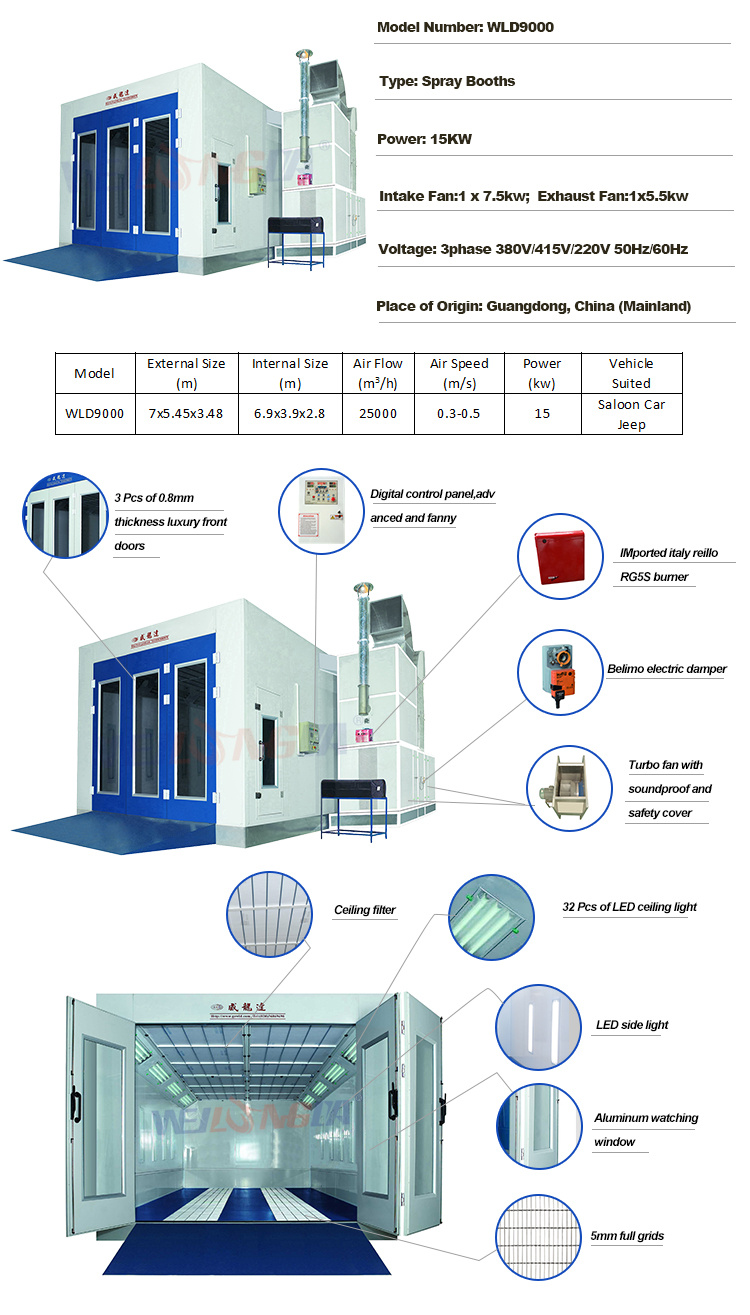

Wld9000 CE Best Quality Paint Booth/Car Spray Booth/Painting Room Configuration:

Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.
Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. Full ramps.
Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door. Watching window with aluminum frame.
Air Circulation System: 1 x 7.5kw direct drive intake fan, 1x5.5kw direct drive exhaust fan. BELIMO 20N electric damper.
Burner: Italy RielloRG5S diesel burner, 260000Kcal/h. The heating time 4-5min(20-60^.C). Max. temperature
at 80^.C. Fuel consumption is 5-6kg/vehicle.
Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
Lighting System: Ceiling light has 32 pcs of 16w LED lamps. Side light has 16 pcs of 16w LED lamps. 900 Lux.
Air Purification: Dual filtering structure. The primary filter is M pattern nonwoven filter bags. It can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
Pollution Control System: Special configure with M pattern Active Carbon pocket Filter System.

Model	External Size (m)	Internal Size (m)	Air Flow (m³/h)	Air Speed (m/s)	Power (kw)	Vehicle Suited
WLD9000	7x5.45x3.48	6.9x3.9x2.8	25000	0.3-0.5	15	Saloon Car Jeep

Prod Model:	WLD9000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Internal Size:	6.9X3.9X2.8m
Whole Recycle System:	Yes
Certification:	SGS, TUV
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Substrate:	EPS or Rock Wool
Type:	Auto Spraying Baking Booth
Brand:	Weilongda

Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.

Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.

After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.

Please feel free to contact members of Weilongda and start a happy and win-win cooperation.

With your join, the future is better.
