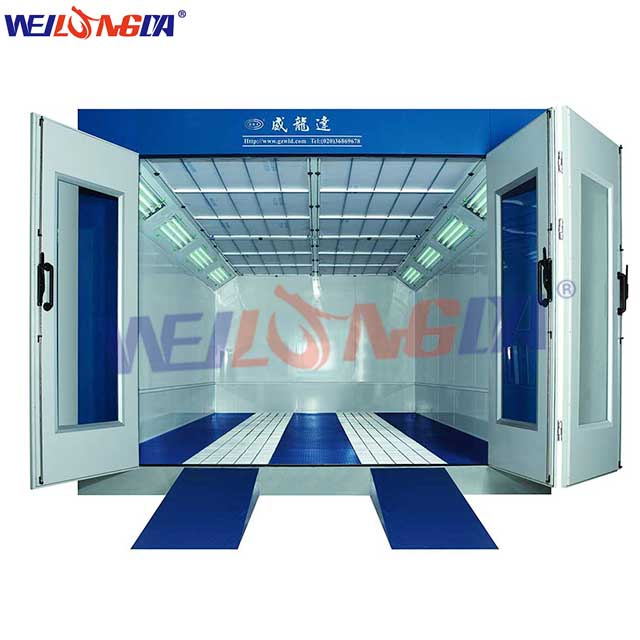

Name: Wld6200 Ce Economic Downdraft Spray Paint Booth
Brand: ibuyautoparts.com
SKU: 816562025
Availability: InStock
Rating: 4.8 (83 reviews)

Price:	US $ 8100-8500/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Wld6200 Ce Economic Downdraft Spray Paint Booth :

2. TUV Rheinland, CE, SGS, ISO Certificate approvlal.

3. Over 15000 square meters, a lot of stock available.

4. High quaulity and competitive price.

5. Powder coating for basement, cabinet, frame, plate; Two layers of heat exchanger etc advantages.

6. Good service and timely delivery.

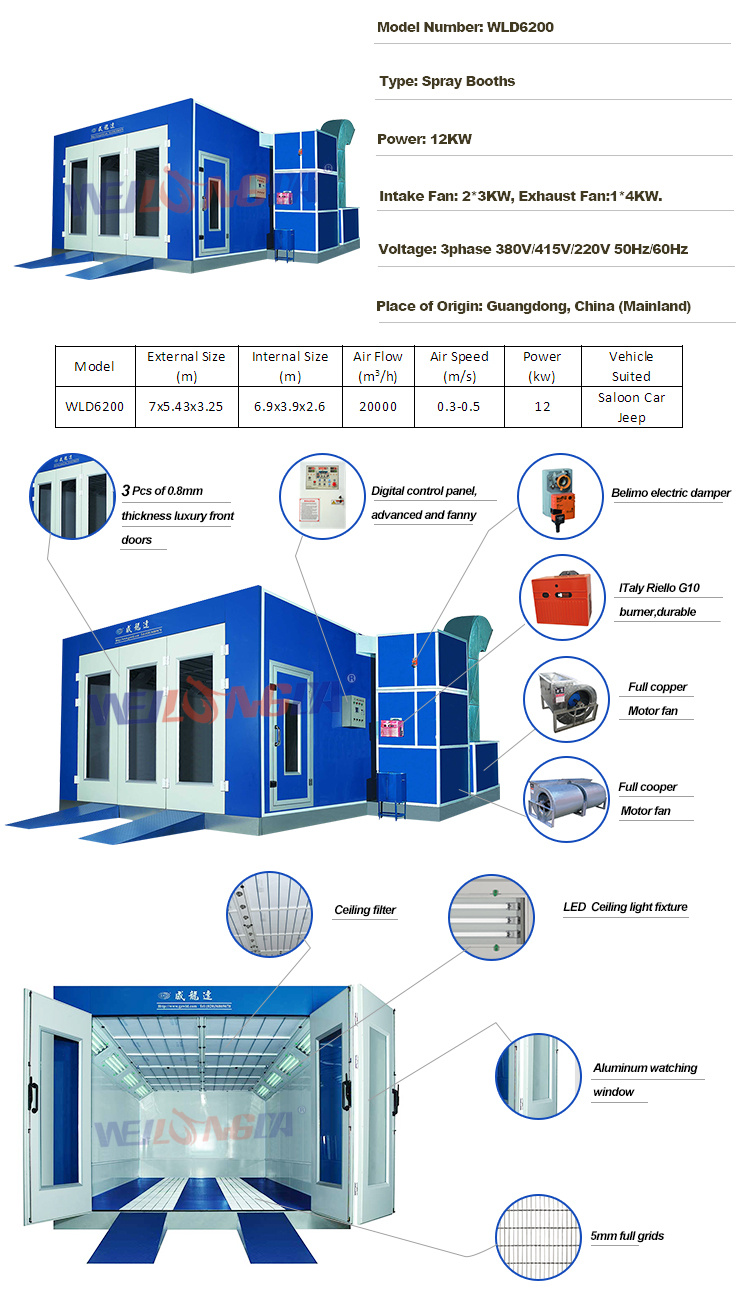

Wld6200 CE China Car Paint Spray Booth/Painting Room Configuration:

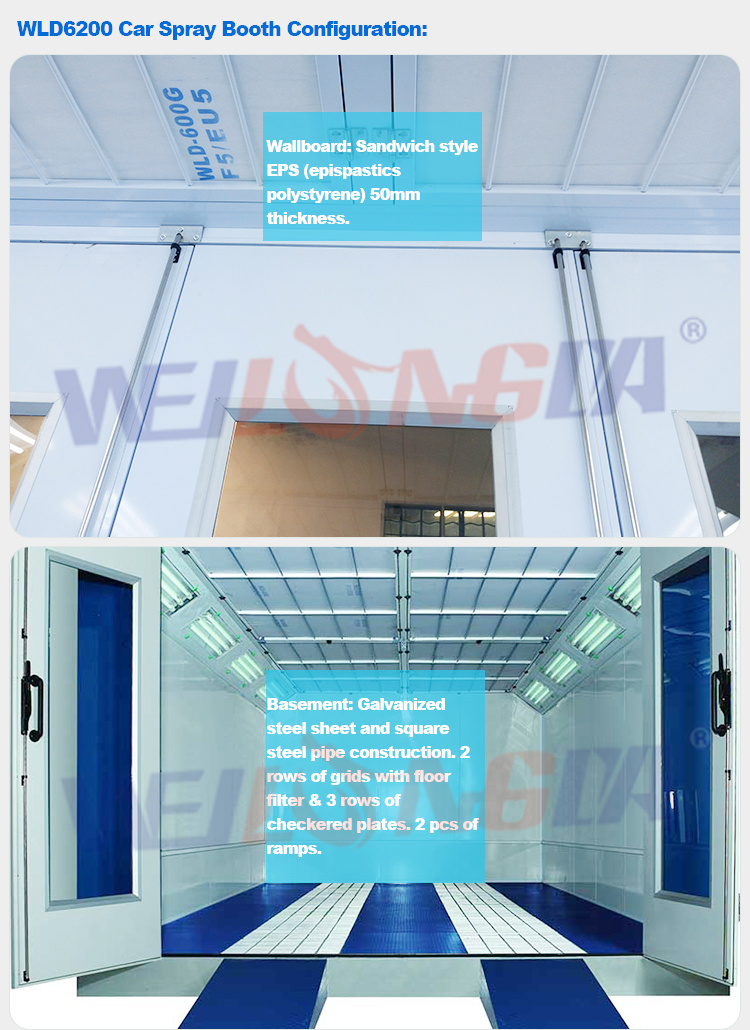

Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Galvanized steel roof panel.
Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.
Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2600(h). 1 pc of emergency door. Watching window with aluminum frame.
Air Circulation System: 2x3kw intake fan,1x4kw exhaust fan. BELIMO 20N electric damper.
Burner: Italy Riello G10 diesel burner, 100000Kcal/h. The heating time 7-9min(20-60^.C). Max. temperature
at 80^.C. Fuel consumption is 4-5kg/vehicle.
Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
Lighting System: Ceiling light has 24 pcs of 16w LED lamps. 800 Lux.
Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
Pollution Control System: Multi-layer fiberglass filter.

Model	External Size (m)	Internal Size (m)	Air Flow (m³/h)	Air Speed (m/s)	Power (kw)	Vehicle Suited
WLD6200	7x5.43x3.25	6.9x3.9x2.6	20000	0.3-0.5	12	Saloon Car Jeep

Prod Model:	WLD6200
Internal Size:	6.9X3.9X2.6m
External Size:	7X5.43X3.25m
Air Flow:	20000m³/H
Air Speed:	0.3~0.5 M/S
Power:	12kw
Warranty:	1 Year
Delivery Time:	5 Days
Heating System:	Diesel, Gas Burner, Infrared
Voltage:	380V/220V 3pH AC 50-60Hz
Certification:	ISO, SGS, TUV
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Type:	Spraying Baking Booth
Substrate:	Steel and Aluminum
Brand:	Weilongda
Airflow Direction:	Full Down Draft Type
