| Prod Model: |
WLD6100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| External Size: |
7000X5430X3250mm |
| Internal Size: |
6900X3900X2600mm |
| Voltage: |
3phase 380V/240V/415V 50Hz/60Hz |
| Power: |
12kw |
| Air Flow: |
24000m3/H. |
| Air Speed: |
0.3-0.5m/S. |
| Certification: |
CE |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Substrate: |
EPS |
| Brand: |
Weilongda |
Product Description
1. welcome to visit our factory
2. professional spray booth manufacturer
3. more than 15 years experience.
4.famous for high quality with competitive price

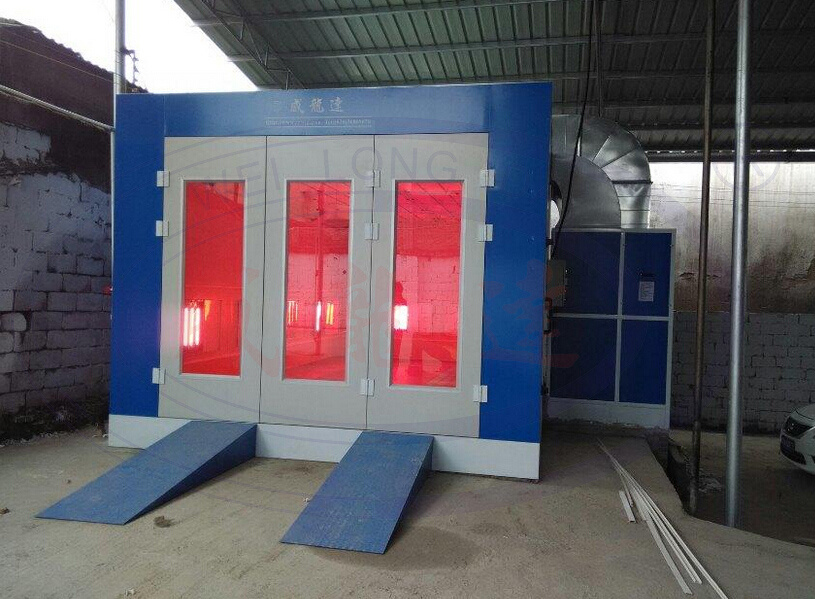

Economic Type Spray Booth WLD6100
External Size | L7000×W5450×H3250(mm) | Air Flow | 24000m³/h |
| Internal Size | L6900×W3900×H2600(mm) | Air Speed | 0.3~0.5m/s |
| Main Door Size | W3000×H2600(mm) | Fuel Consumption | 4~5kg/vehicle |
| Total Power | 10KW | Application | Saloon Car/Jeep/Wooden/Furniture |
| Wallboard | 50mm EPS, foam density is 14kg/m³. 0.326mm colorful steel skin board with hot dip galvanizing, life-span can reach 20 years without rusting. It keeps a high insulation performance with a low weight. |
| Basement | Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plated, 2pcs of ramps. |
| Door | 3 folders of front door, made of 0.8mm colorful steel skin board, with aluminum view window, size: W3000×H2600(mm). 1pc of service door, size: W800×H2000 (mm). |
| Fan | 2×4KW centrifugal intake fans, introduced from Siemens technology, supply large air flow to the working environment at low noise. |
| Air Pipe | Made of galvanized steel sheet, consist of 4pcs of straight pipes 750*750*1000 and 1pc of elbow. |
| Air Purification | Dual filtering structure, the primary filter can capture granules larger than 10μm. Ceiling filter captures granules larger than 5μm. The air cleanliness in the working environment can reach 98%. |
Infrared Lamp
Heating System | Consist of 10 sets of infrared lamp cases; each set has a cover and 3 tubes, totally 30 tubes. There is a stainless steel mirror reflector for maximum heat projection efficiency. Infrared heat radiation has a feature of high penetration, efficient, no noise, and pollution free etc. Max. temperature at 80ºC. |
| Control Box | Micro-soft computer control box, use high quality electronic component, the temperature and the drying time is accurately shown. Equipped with overheat, overload & short-circuited protected, safe and reliable. |
| Damper | Manual damper. |
| Ceiling Light | 8 units × 3pcs=24pcs of LED lamps. |
Advantage:
Packaging & Shipping
Polyfoam and Carton,one set in a 20ft container,3 sets in a 40HQ container.
Company Information
Guangzhou WeiLongDa Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipment manufacturers and suppliers in China.Covering more than 15000 square meters,it manufactures spray booths, preparation stations,auto lifts and supplies body repair systems, wheel alignment,tire changer,wheel balancer and other relevant garage equipment to the clients all over the world.
FAQ
Why Choose WeiLongDa?
1. Verified 17 years original big factory,covers more than 18,000 square meters. We don't rent a workshop or factory to manufacture. We built the factory by ourself,so we never move to other places,then you can find us very easily at any time.
2. Quality first and service highest are the principle and belief in our WeiLongDa members. We are sincere and honest in the business.

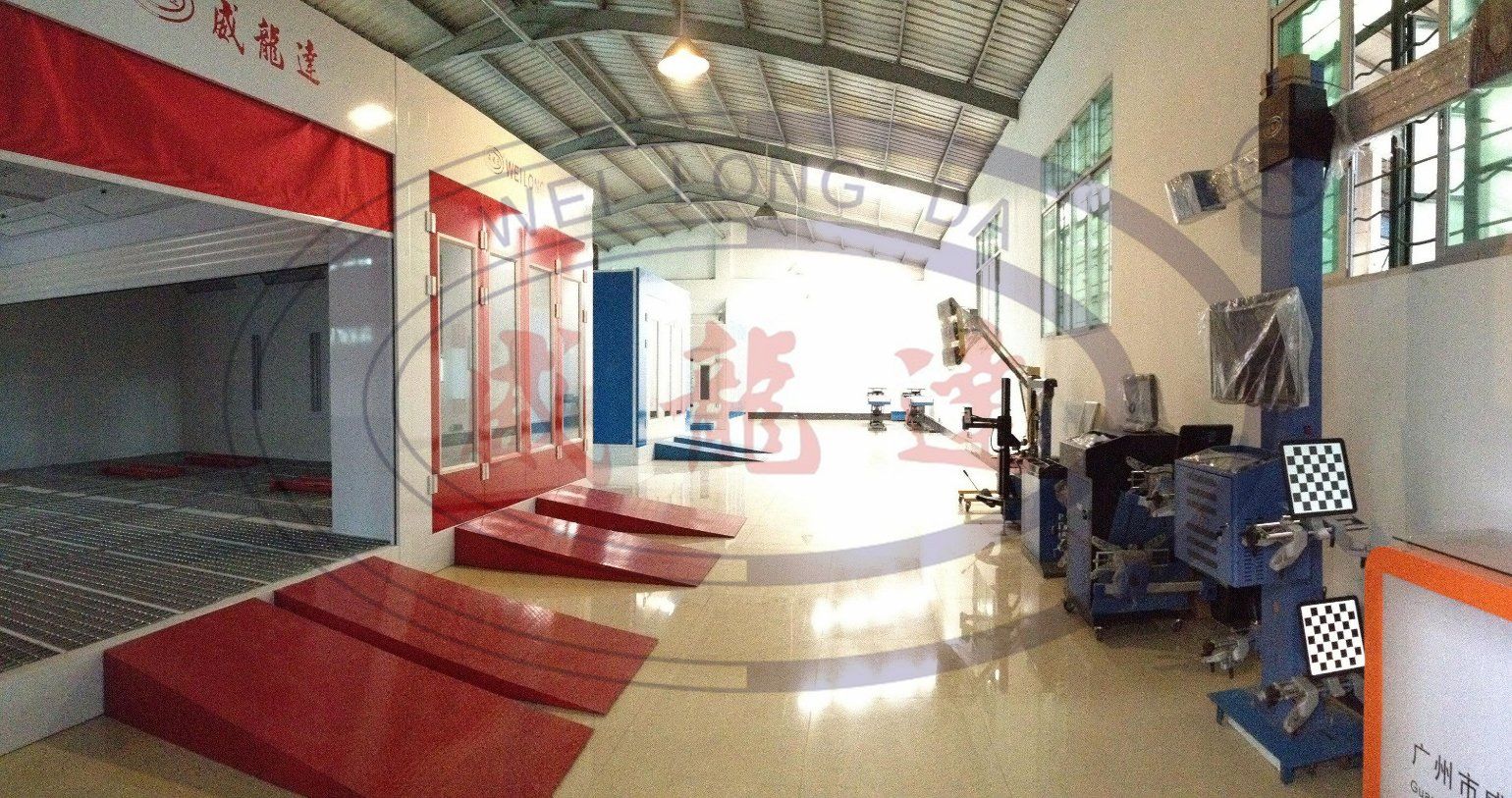

3. We own the biggest product showroom in China; Welcome to visit our factory at any time.
4. Professional engineer and technician team to make sure perfect product structure,design and layout.
5. With excellent attitude and service,our experienced export sales team members provide good solution for your standard or customized requirements and make sure smooth shipping for your goods.
6. Powder coating technology is applied in the production for many parts of the our products,such as beams,frames,cabinets,and basement etc,very antirust,durable and beautiful.
7. High quality raw materials,good facilities and skilled workers to make sure high quality products in the production. Quality control system is carried out in the whole production process.
8. Good after-sales service.
9. Specially verified by famous Germany TUV Rheinland,more reliable. Please watch our TUV video and read TUV report to know more about us.
Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.
Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.
After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.
Please feel free to contact members of Weilongda and start a happy and win-win cooperation.
With your join, the future is better.
