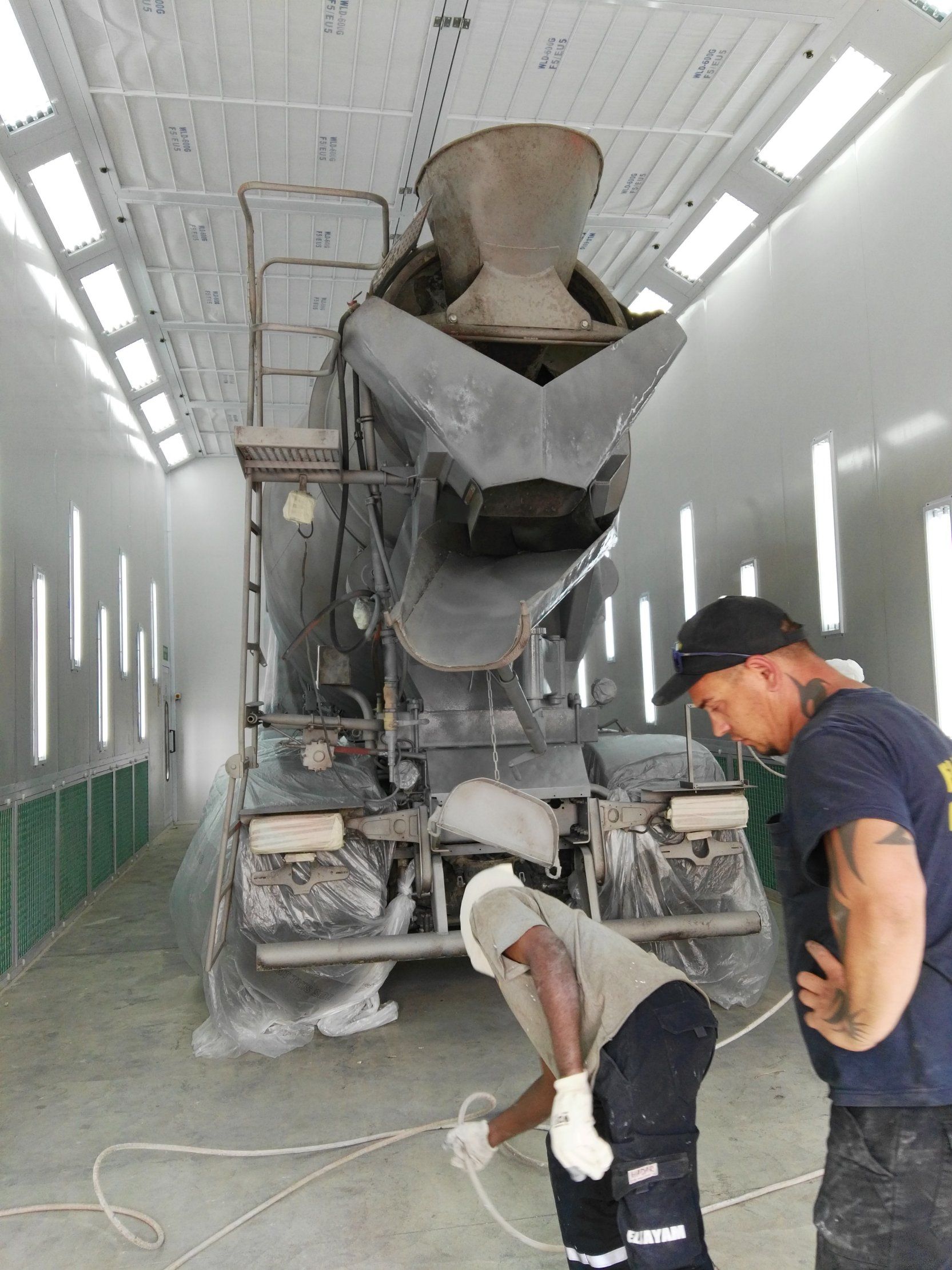

Wld22000 Environmental Bus & Truck Paint Booth

Wld22000 Environmental Bus & Truck Paint Booth
Price: US $ 120000-150000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: WLD22000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Wld-22000
Control System: Touch Screen , PLC , Convertor
External Size: 22000*8850*5600mm
Internal Size: 20000*5000*5000mm
Air Flow: 25000*4m3/H
Air Speed: 0.3-0.5m/S
Power: 67kw
Vehicle Suited: Truck & Bus
Certification: GS
Airflow Direction: Lateral Undershot-type
Paint Mist Treatment: Dry-type
Condition: New
Substrate: Rock Wool
Brand: Weilongda
Heating Mode: Natural Gas

Product Description

This is a custom booth. We have many standard Paint booth models and we can also make customized spray booth. Welcome to send inquiry to us.

Project:22m×6m×5m
 Configuration
Technical requirements1.Extraction from both side.
2.All motors must be SIEMENS or WEG. All motors must be controlled with Variable Speed Drives/Frequency Inverters,made by  Schenider only.
3.The airflow velocities are at least 0.4m/s downdraft velocity,in an empty booth
4.Entrance door with electrical rolling door
5.Each booth requires a minimum of 4×Personal Doors.
6.All ceiling filter frames must be hinged,to open from the side of the booth. All ceiling filter frames must be manfactured from stainless steel,and not the normal power coated steel.
7.The required Lighting may be no less than 1000 Lux.
8.All air control dampers must be automatic.
9.The primacy intake filters must be pocket type filters.
10.The Touch Screen with PLC is provided,and must be Schenider.
11.All the viewing windows will be aluminum alloy frame,and cannot be opened.
12.The glass of the viewing window is 8mm clear tempered glass.
13.All the materials must be able to survive fire for 60 minutes.Wall panels to be insulated with rock wool or mineral.
14.Air intake and exhaust fire proof damper and fire shutter must be equipped with fusible connetion.Where there is a sparks,fusible connection will be activated,thus close the fire shutter.The fire shutter must be electric,to be operated on the control box.
15.The booth must be equipped with Differential Pressure M and temperature sensor,to ensure the pressure in the booth is monitered all the time,and the reminder of changing the filter.
16.The booth must be equipped with alarm system,pressure gauge,differential pressure gauge
Dimension of Room Body
Inside Dimension22000×6000×5000(L×W×H)
Outside Dimension22152×9750×5600(L×W×H)
Air Collect Cabinet
Design TypeQuadrate steel frame,at each side of room body
Fiter Area101 square meters
Room Body
StructureQuadrate steel support,dragon gate structure,panel vertical setting
Height of Plenum600mm
Wall panel Rock wool 75mm,0.6mm color steel,snow white
Roof PanelRock wool 75mm,0.6mm color steel,snow white
Edge CoverGalvanzied steel bending

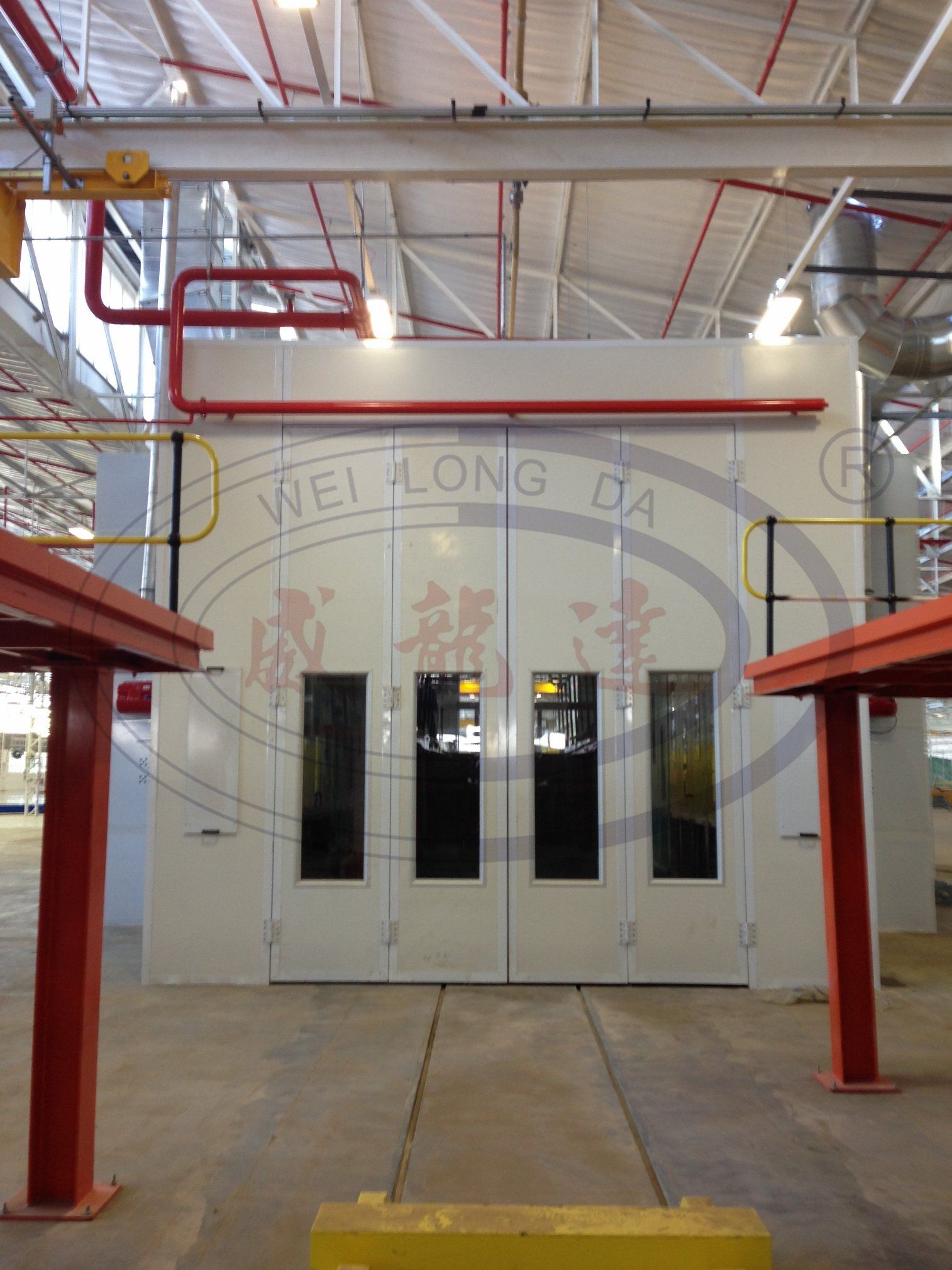

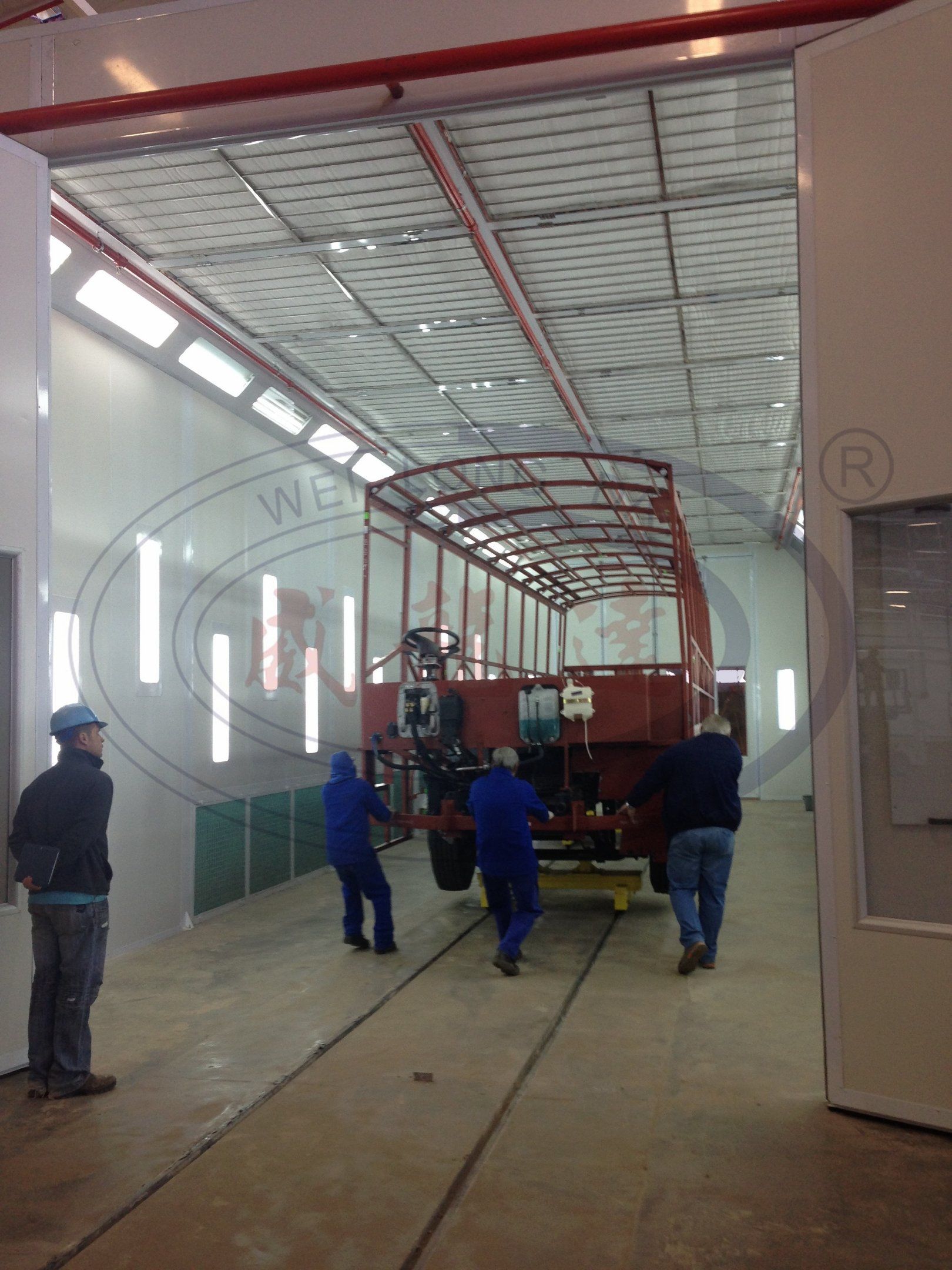

Entrance Doors
Door TypeFloding type Doors
Size4000×4800mm(W×H)
Quantity2units,entrance door,drive through type
Personal Door
Door TypeFrame Structure
Size800×2000mm(W×H)
Quantity2 units on each side,4 units in total,distance from the bottom of an open door to the ground to be 20 mm.
DescriptionWith safe glass window,thickness:8mm

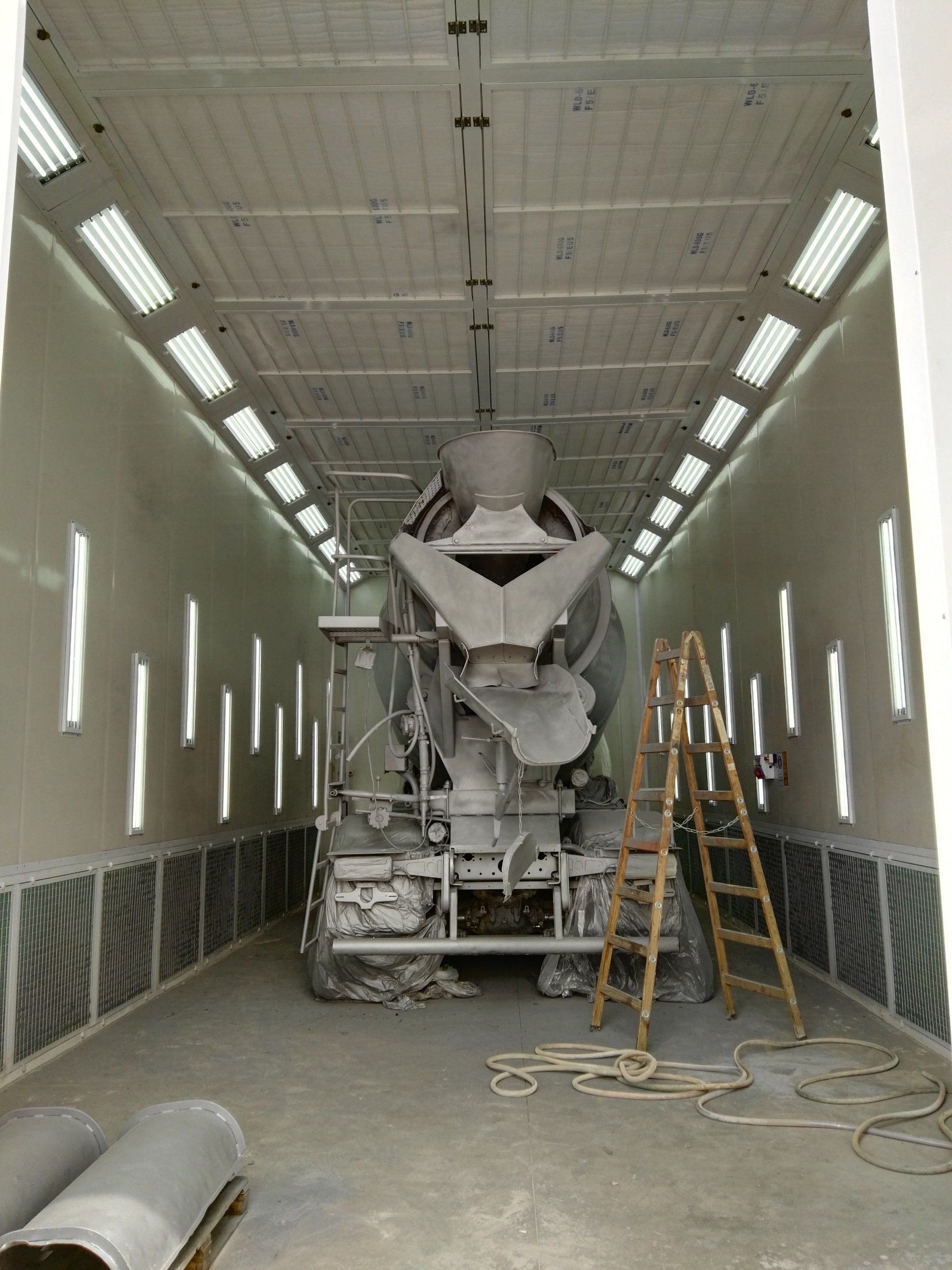

Ceiling LightsAll lights must be able to be changed from outside of the spray booth.
Quantity and Power28units,4×36w/unit,4032w for total,Philips brand
Layout2 rows,14 fitting on each side,total 28 fittings
Side lightsAll lights must be able to be changed from outside of the spray booth.
Quantity and Power34 units,4×36w/unit,4896w for total,Philips brand
Layout2 raws,on each side of room body
 The 22 m Spray booth must have end wall lights, installed on the sides of the folding door, each side having 1x fitting,2 fittings for one door,total 16 pcs of tubes for two doors
Illumination>1000Lux
Filter SystemPerforated deflector plates are to be installed on each inlet to the top plenum, as to ensure that even mixing of the air and laminar air flow through the ceiling filter
Pre-filterG3 bag filter,has large dust resistance capacity and high efficiency.inital resitance: 30Pa,final resitance:200Pa,100% wet resitance
Ceiling filter
F5 class filter,Model-SP-600G,has large dust resistance capacity and high efficiency.Thickness:22mm.Inital resistance:30Pa. Final resitance:450Pa.Temperatuere resistance:120°C,temperature short peaks:140°C.Max:temperature holding quantity: 650g/squre meter


Side filter
Fiberglass filter: thickness:50/60mm,initial resitance:15Pa,final resitance:250Pa,temperature resitance:170°C,temperature short peaks: 190°C,max temperature holding quantity:3200-3600g/square meter
Exhaust filterF bag filter,initial resitance: 43Pa,final resistance: 250Pa,80% wet resistance,color: white,flame resitance: FA
Description of ceiling filter frameStainless frame with hinges to change the filter easily.With defetor plate
Inlet System
Fan typeTurbo fan
Power of fan and description of motor6×11KW,380V,50Hz,SIEMENS motor
Date of inlet fan190080m³/hour,500Pa
Heating System
Material of heating exchangerStainless 1Gr18Ni9Ti(SUS304)
Power of heating exchanger6×440KW
T temperature raising ability25°C(from -5°C to 20°C under painting)
Max working temperature80°C
Temperature raising time10-15min(from 20°to 60°C) under baking
Model of BurnerRS34/2 gas burner
 The air generation units must also be fitted with white insulated panels,extraction plenums must be from White Powder coated Mild Steel panels, and must be bolted panels.
 All panels which can be opened to access the fans, internal filters or other internal items, must be opened using knobs, not needing any tools.
Heating recycle systemNo
 Each of the spray booths must be fitted with 4 x temperature probes, which will record the internal temperature of the spray booth, at different points.These readings must be made available on the Touch Screen PLC.
Outlet System
Fan typeTurbo fan
Power of fan and description of motor6×11KW,380V,50Hz,SIEMENS motor
Date of outlet fan190080m³/hour,500Pa
Free Air Speed+/-0.4mm/free
Noise<75db(A) Add noise attenuation at the duct to reduce the noise. With sound insulation inside of fan

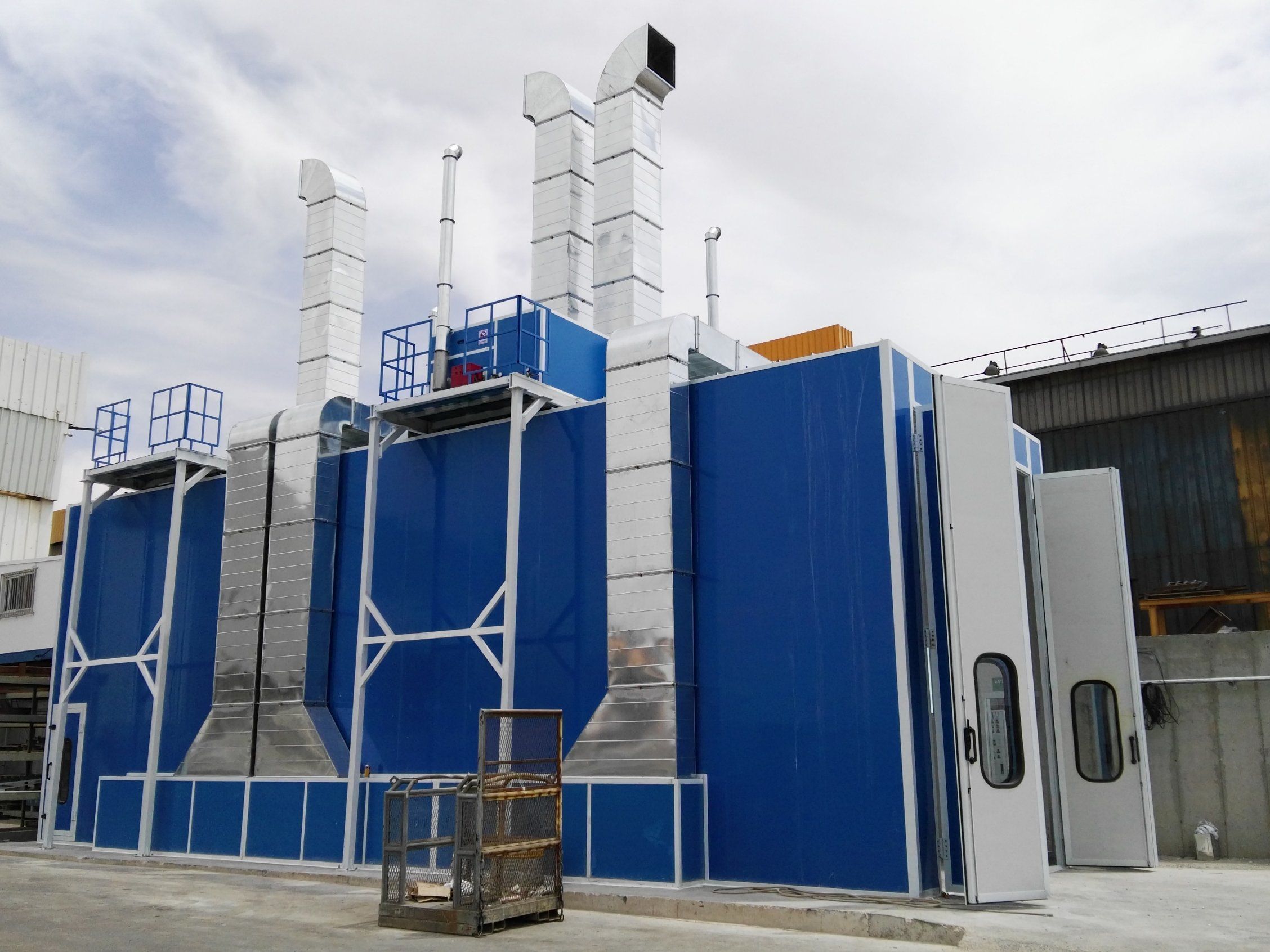

Duct
Outlet Duct
Size1000×1000
Straight Duct36pcs
Water Proof Cap6pcs
Control SystemAll electrical components and switchgear must be from Schneider,10" Shneider HMI  Touch Screen
Actuate Standard
Function Painting,heating painting,flash,baking,SIEMENS PLC control,lighting switch
Secure SystemOver temperature stop function,failure alarm,outset indicator,safe temperature lower stop,emergency stop,filter pressure alarm,fan and heating chain control,finger pressure monitor,Solenoid Valve and Pressure Adjustment Control Driven Damper
 The system can indicate that when the fans are running and the doors are open,the alarm rings.
Pressure Ajustment SystemOutlet electrical damper
Fire ProofFire damper for inlet,electrical damper for outlet
Other Facilities CE standard wire,wire box,pipe
AdditionalAdditional 6m air duct for each air intak system to make it same as air exhaust duct
additional 5 m duct for all intakes and exhausts.
2 x Additional Sets of replacement filters per spray booth.
