Prod Model: |
WLD-25000 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Internal Size: |
(L) 25000 X (W) 5000 X (H) 5000 |
External Size: |
(L) 25150 X (W) 8850 X (H) 5600 |
Air Flow: (M3 /H): |
31000 X 4 |
Air Speed: (M/S): |
0.3-0.5 |
Certification: |
CE |
Airflow Direction: |
Lateral Undershot-type |
Heating Mode: |
Diesel |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Substrate: |
EPS or Rock Wool |
Brand: |
Weilongda |
Product Description

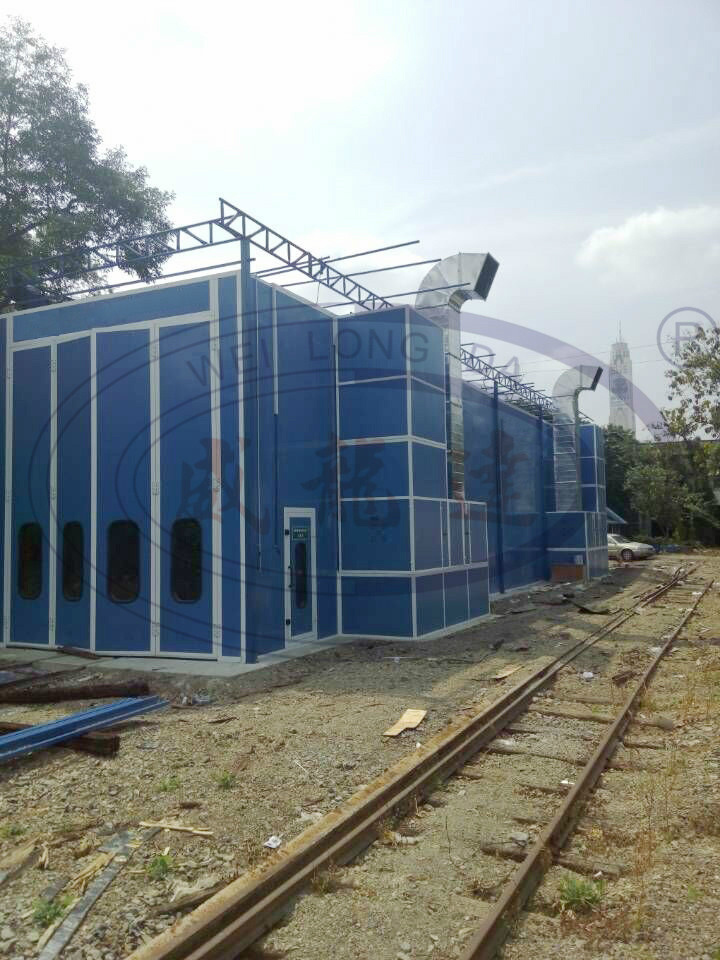

Truck / Bus / Train Paint Spray Booth
1.Our factory establish in 2000
2. Real Factory for Spray Booth
3. We have export booth over 72 countris
Technical Parameters |
External Size(mm) | (L) 25150 x (W) 8850 x (H) 5600 |
Internal Size: (mm) | (L) 25000 x (W) 5000 x (H) 5000 |
Door Size: (mm) | (W) 4000 x (H) 5000x2 sets |
Air Flow: (m3 /h) | 31000 x 4 |
Air Speed: (m/s) | 0.3-0.5 |
Operation Temperature | < 80 degree |
Power: (kw) | 70 |
Vehicle Suited: | Train |
Configuration |
Wall Panel | Side Wall Panel isSandwich style EPS (epispastics polystyrene) 75mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel. Roof Panel EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.476mm thickness. |
Door | Main Door: 2 sets 4 pcs of front doors with special rigid frame. Size: 4000(w) x 4800(h). Emergency Door : 4 sets. |
Air Intake System (4sets) | Each set consists of 1 set 11kw Siemens turbo direct drive intake fan. |
Air Exhaust System (4set) | Each set consists of 1x7.5kw Siemens Turbo Direct Drive exhaust fan. Exhaust two sides of wallboar with 4 sets exhaust area with Multi-layer fiberglass filter and active carbon packet filter. Air Exhaust pipe is 4 pcs straight pipe and 1 pcs elbow per set system. Total 16 pieces straight pipe and 4 sets elbow. |
Lighting System | Ceiling light has 32units x 3pcs of 58w Philips lamps. Side light has 36 unites x 2pcs of 58 w Philips lamps. Total 168 pcs of 58 W lamps. 750 Lux. |
Air Purification | Dual filtering structure. The primary filter(EU-3) can capture granules larger than 10μm.Ceiling filter(EU-5) capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.Exhaust Fiber Glass filters( EU-2), Active Carbon Packet filters ( EU-3). |
Control System | Component is from Chinese Famous brand .With Overload/short circuit protect system .Lights seperate control .With Timer , alam lights,main switch and so on . |
