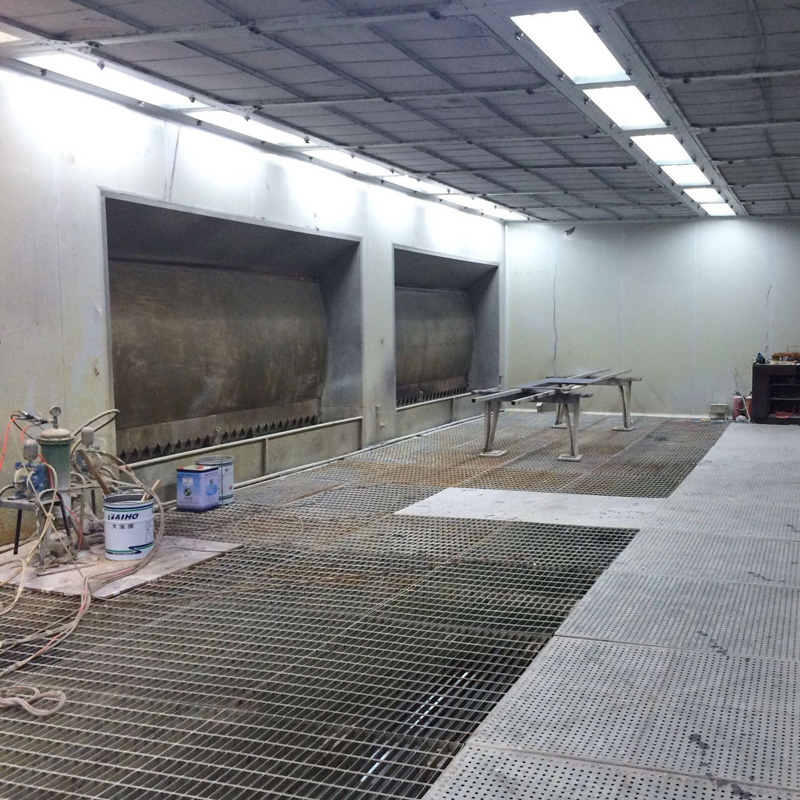

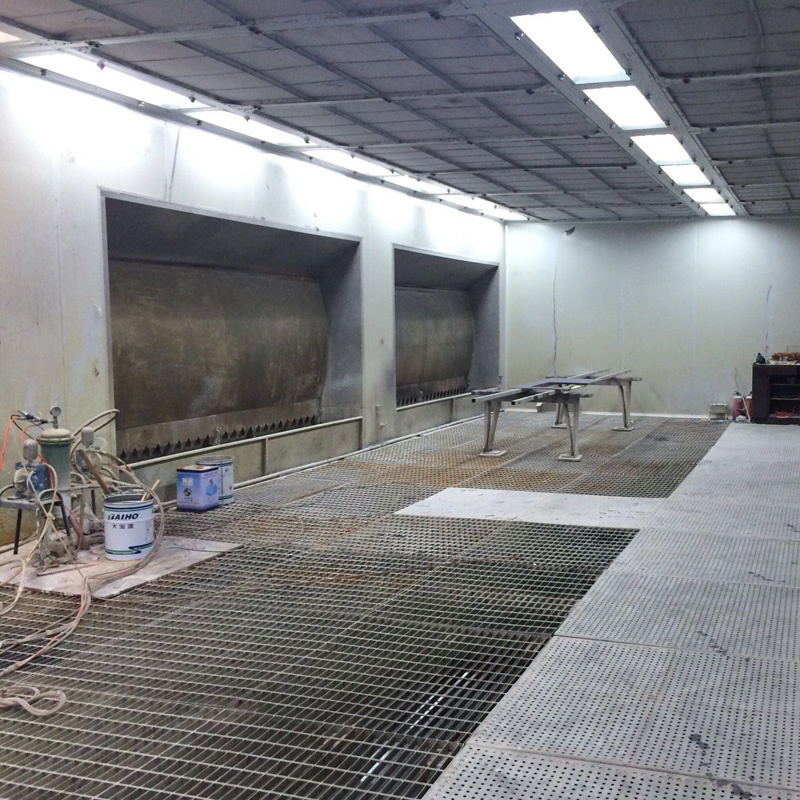

Wet Type Painting Room with Ce

Name: Wet Type Painting Room with Ce
Brand: ibuyautoparts.com
SKU: 715302232
Availability: InStock
Rating: 4.7 (43 reviews)

Price:	Negotiable/Set
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

The equipment mainly consists of: room body, air exhaust system, air filtration system, lighting system, paint mist treatment system, electronic control system and safety, fire control system, etc..

No.	Specification	Item	Specification	note
1.	The internal dimension	mm	Customzied
2.	Airflow Direction		Cross-flow Type
3.	Paint mist treatment		Water rotation treatment
4.	Exhaust gas treatment		Activated carbon filter+Pulafei filter	Option
5.	Total discharge volume	m³/h	12000/18000/25000
6.	Exhaust fan	KW/Set	5.5KW/7.5KW/11KW
9.	Air filtration efficiency		>95%
10.	Luminance	LUX	≥1200
12.	Noise	dB(A)	≤85

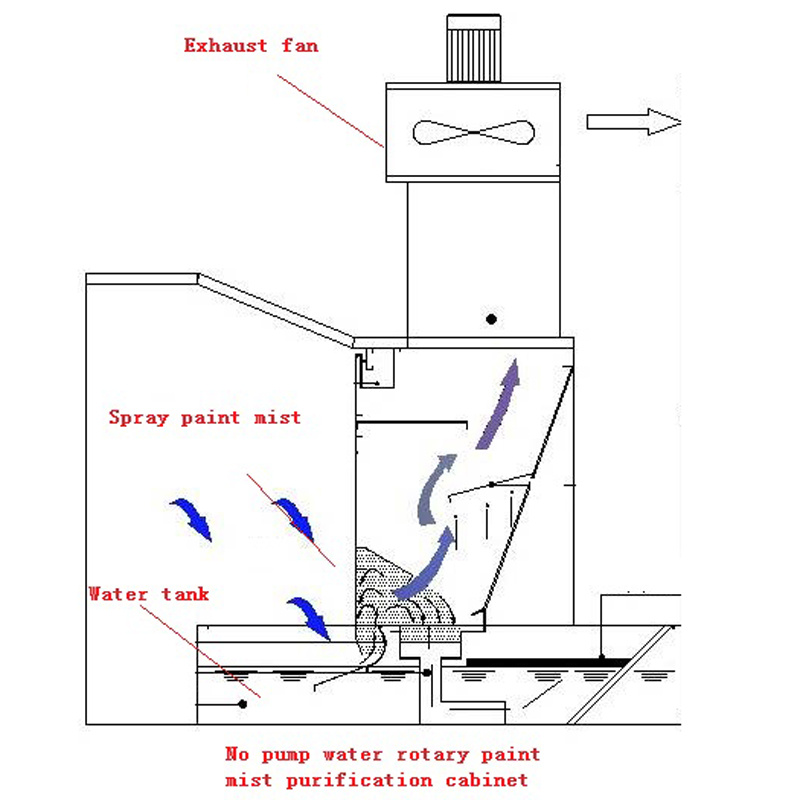

Paint mist collection and processing system

Air containing paint mist through the exhaust fan, high speed suction swirl chamber. The centrifugal force paint mist from the air flow is separated from the air flow, and the water film is collected. Water is separated from the water retaining plate and prevents from the exhaust port. The paint mist is returned to the water tank by the return air pipe. The AB agent is added in the water tank, and the paint mist coagulant is composed of a A component and a B component.
After the vortex processing, the paint mist is discharged from the water trough to the varnish slag place. In the circulating water tank, a proper amount of paint mist coagulation agent is added regularly to ensure the water circulation of the circulating water pool (4 to 6 months).

Successful stories

If you wish to discuss any aspect of your project

...Please feel free to contact us..

Thank you for your viewing !

Prod Model:	Customized
Color:	Customized
Warranty Time:	2 Years
Popular In:	Europe, Australia
Technology:	German Techology
Air Filtration Efficiency:	>95%
Noise:	85dB<
Certification:	CE
Airflow Direction:	Cross-flow Type
Paint Mist Treatment:	Wet-type
Condition:	New

Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is a focus on industrial coating equipment research and development, design, manufacturing, technical consulting, sales, installation of high and new technology enterprise. We have a professional and experienced technical team, perennial exchanges and cooperation with design institutes, universities, undertake pretreatment, sandblasting, electrophoresis equipment; Grinding, drying equipment, dust removal, paint on the surface andDust-free spray and automatic spraying production line.

Products used in cars, buses, trucks, special automobile and auto parts production, elevator manufacturing, locomotives, construction machinery, military industry, machine tool, plastic spraying, and many other industries. Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. Adhering to the "continuous learning, continuous innovation, the pursuit of excellence, Shared success" business philosophy, to comply with the needs of modern industry of coating equipment products, carefully committed to the new technology, new material, the use of new technology, research and development and innovation, to ensure that provide customers with competitive solutions and high quality service.
