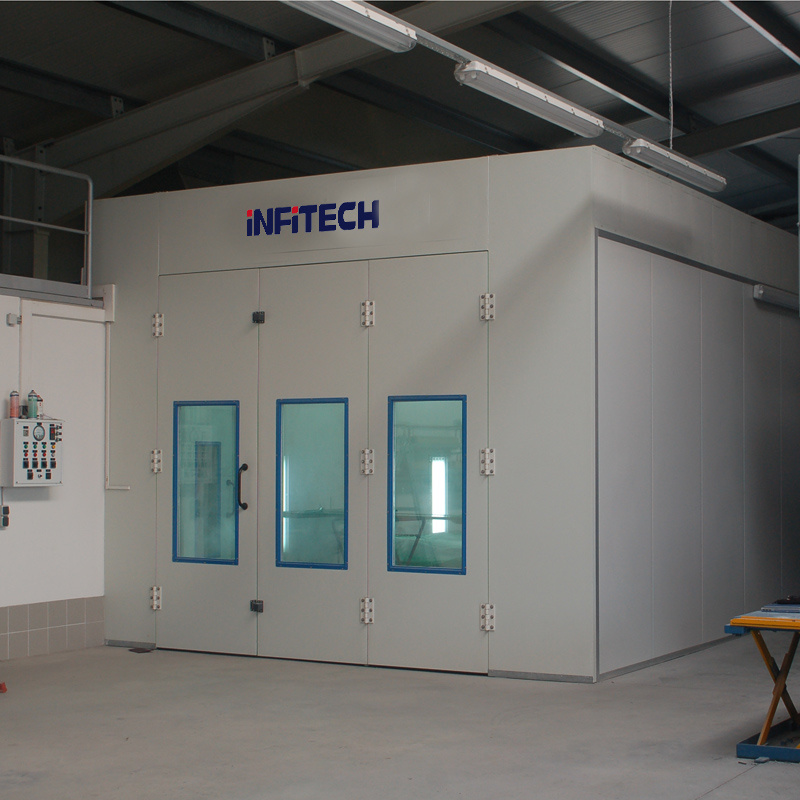

Australian Standard High Quality Spray Paint Booth

Name: Australian Standard High Quality Spray Paint Booth
Brand: ibuyautoparts.com
SKU: 715727742
Availability: InStock
Rating: 4.9 (121 reviews)

Price:	US $ 10000-25000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Customer customization is our expertise, 10 years of project experience, perfect technical system, for your comprehensive design. From design to installation, we provide you with intimate service.
Just let us know if you have any questions/inquiries.

**CE certificate, Australian standard;
**Factory price;
**It fits the spraying and painting of auto/truck/bus/furniture/hardware/appliance/elevator etc.

BOOTH DIMENSION
The internal dimension	7000 X 4000 X 2800mm (L X WX H)
The external dimension	7110 X 5570 X 3810mm (L X W X H)
BASEMENT
Base design forming	Galvanized sheet bending forming, full grids Basement(H): 350mm and can be adjustable
Carrying capacity of the grids	650 kg/wheel
Filter area	28m2
Drive-in-ramps	3 pieces; size: 20001030320, diamond structure
Grid description	Size: 997X 756mm, 40X3mm, pressed steel grating grille instead of traditional twisted steel for the rail steel grating. Aesthetics, durability, stress resistance are the most important features of such steel grating.
CABIN
Cabin structure	Vertical wall plug
Plenum height	600mm
WALL PANEL
Wall panel	50mm wall panel, wallboard filler material: heat-resistant rock wool panel
Top panel	50mm wall panel, wallboard filler material: heat-resistant rock wool panel
Edge material	1.2mm galvanized plate bending forming
DOOR
Form	Manual door, 2 + 1 structure
Size	3200 X 2700 mm (W X H)
Arrangement and quantity	1 set
Door description	Containing frame, filled with heat-resistant EPS
WORKING DOOR
Form	Frame structure
Size	800×2000 mm (W×H)
Quantity	1 set
Door description	With safety glass observation windows
SIDE LIGHTING(Opening out)
Quantity and power	8 sets of light fixtures, each 2 X 36W, total 576W
Lighting arrangement	On both sides
Lighting description	Protection grade IP55, CE certified electronic ballasts, OSRAM lamp
CEILING LIGHTING(Opening out)
Quantity and power	8 sets of light fixtures, each 4X36W, total 1152W
Lighting arrangement	On both sides
Lighting description	Protection grade IP55, CE certified electronic ballasts, OSRAM lamp
Brightness	> 1200Lux
FILTRATION SYSTEM
Pre-filter	G3 grade pre-filter plate filter
Ceiling filter	F5 class filter cotton, Model SP-600G
Bottom paint mist-collection	Fiberglass paint-resistance filters
Exhaust filter	Fiberglass paint-resistance filters with large ventilation volume, small resistance and flame resistance, etc.
INLET SYSTEM
Inlet fan (fresh air)	Direct-type turbine fan
Inlet fan power and motor description	7.5KW, 970 rpm, 380 V, 50 Hz, Siemens motor
Parameter of inlet fan	28000m³/h, 650pa
EXHAUST SYSTEM
Exhaust fan (exhuast air)	Direct-type turbine fan
Exhaust fan power and motor description	7.5KW, 970 rpm, 380 V, 50 Hz, Siemens motor
Parameter of exhaust fan	28000m³/h, 650pa
Equipment empty loaded air speed	+/- 0.28m/s
NOISE	<78db
HEATING SYSTEM
Heat exchanger material	Stainless steel 1Gr18Ni9Ti(SUS304)
Heat power	200KW
△ T temperature increase capability	20° C (from -10°C to 10°C under painting status)
The maximum operating temperature	80°C
Heating time	3-5minutes (from 20°C to 60°C under baking status)
Model diesel burner	RG5S
PIPELINE CONFIGURATION
Straight	4 pieces
Rain hat	1 piece
reducers	2 pieces
Manual damper	1 piece
Electric damper	1 piece
CONTROL SYSTEM
Implementation standards	Standard Y/Δ Drop Starting Control System
PLC programmable logic controller	PLC control, higher reliability, lower failure rate
Pressure detection	Pressure gauge indicates the pressure in room
Function	Painting, heating painting, leveling, emergency stop switch, failure indication,over-temperature alarm indication, baking delay stop protection
Inverter control	Optional
SPECIAL ITEM	Rated power:20KW

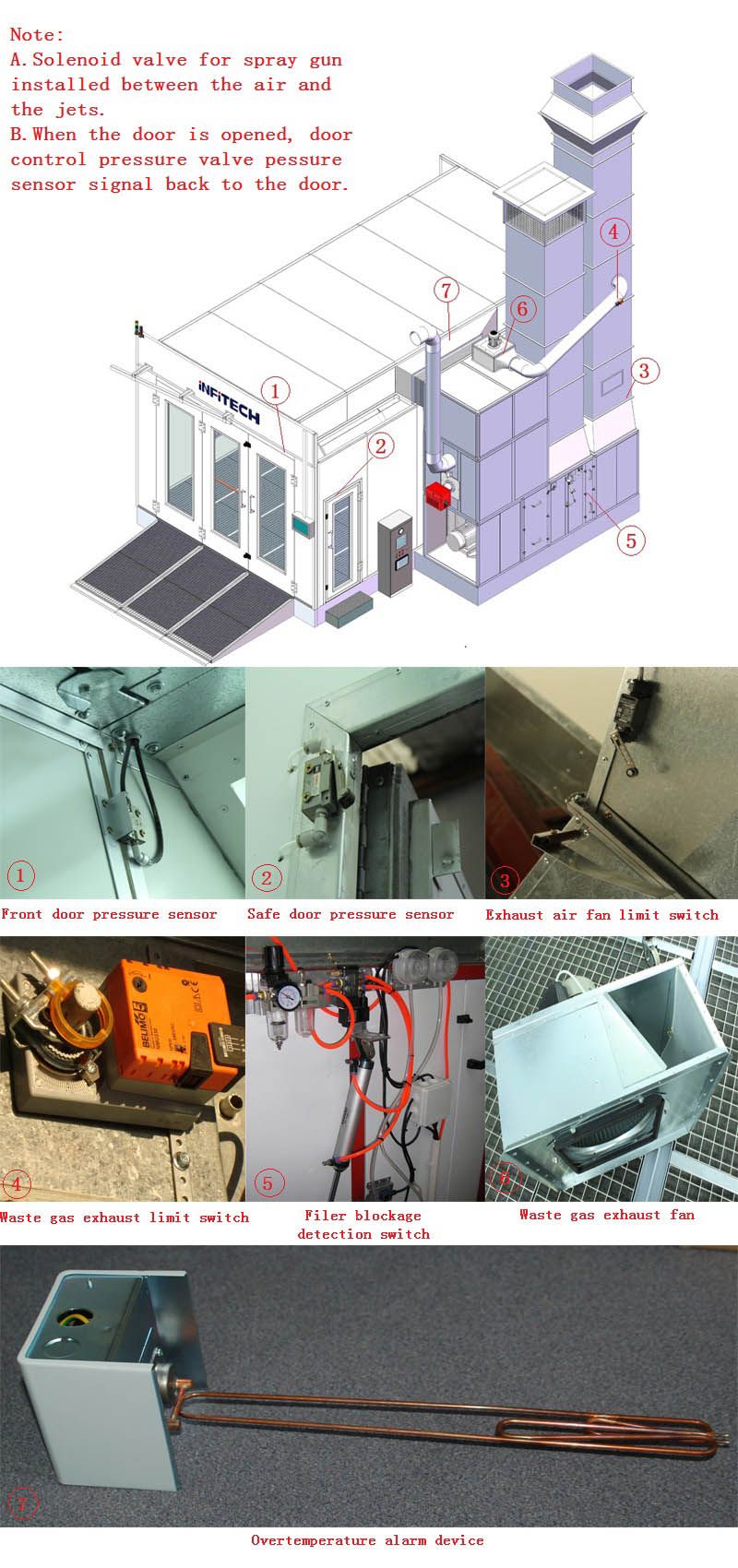

Safety device

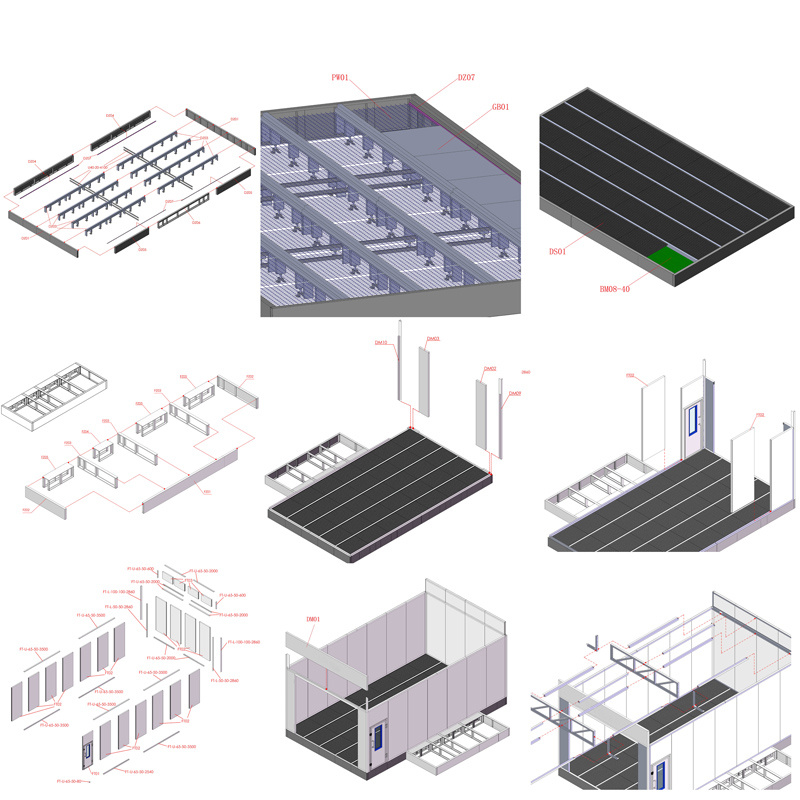

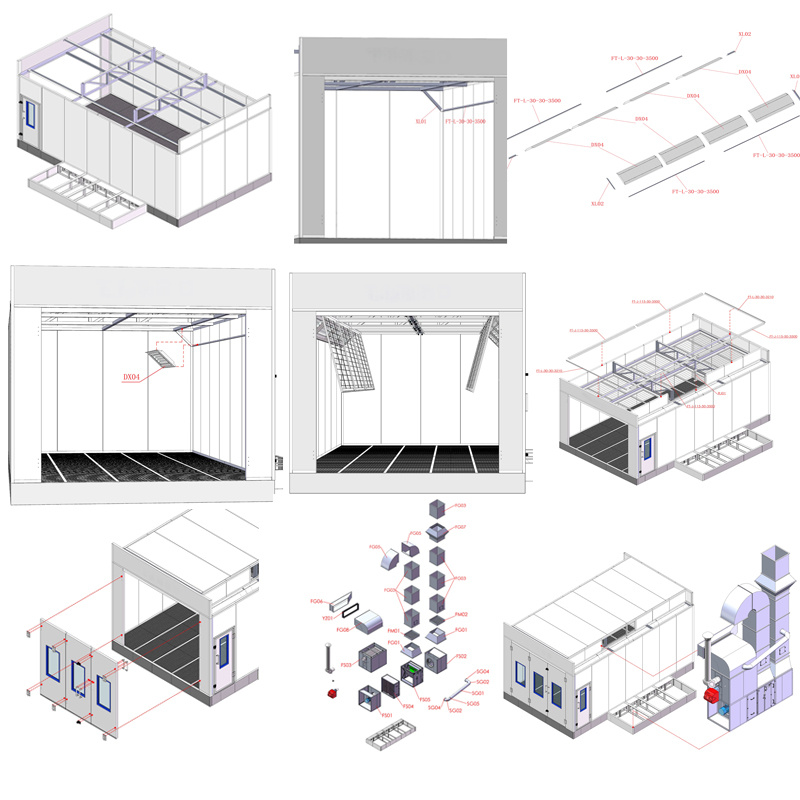

Installation guidance

Thank you for your viewing!

Prod Model:	YFT-A701
Color:	White(Optional)
Design:	Flat-Top Design
Voltage:	1X220V, 3X380V, Your Special Voltages Are Accepted
Technology:	German Technology
Internal Dimension:	7000 X 4000 X 2800mm (L X Wx H)
Standard:	Australian
HS Code:	8419899090
Management Certification:	ISO9001: 2000
Warranty Time:	2 Years
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
