Environmental IR Heating System Painting Room for Auto/Car
| Price: |
US $ 5999-15000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Environmental IR heating system painting room for auto/car
1. Advantages of control system of the IR heating system
A. Temperature control
B. Time control
C. Grouping control
D. Power adjustment
E. Slow start2. Specification
| DESIGN STANDARD | BS EN 13355:2004+A1:2009
BS EN 60204:2006+A1:2009 |

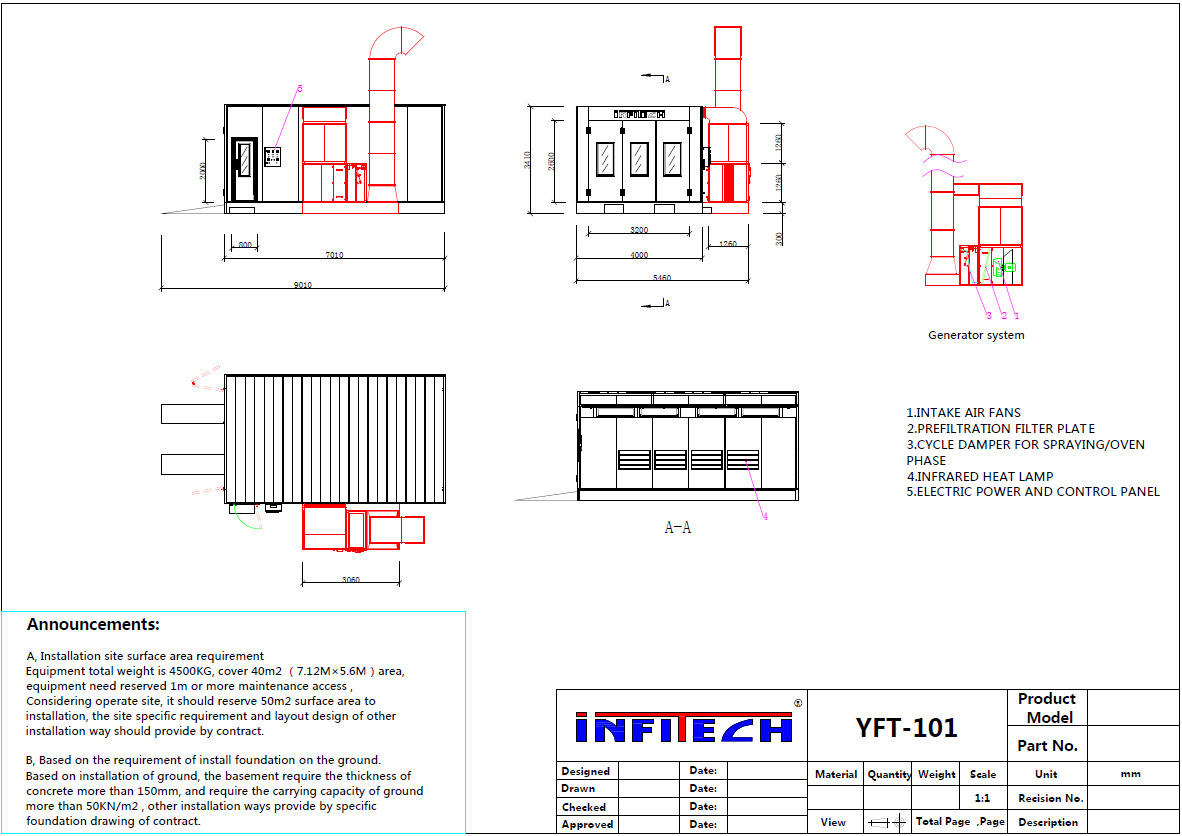

| Cabin structure | Internal Dimension | 6900×4000×2650mm (L×W×H) |
| External Dimension | 7010×5570×3050mm(L×W×H) |
| Basement | Base Design Forming | Two rows flat steel grids, three rows of metal anti-skip diamond Plate, floor(h):300mm, can not adjust |
| Carrying capacity of grid | 650kg/wheel |
| Filter area | 10.4m2 |
| Drive-in-ramps | X2; size: 2000*530mm |
| Grid description | Size: 997X756mm, 40X3mm,
pressed steel grating grille |
| Cabin | Cabin structure | Vertical wall plug |
| Plenum height | 400mm |
| Wall panel | Wall panel | 50mm wall panel filled with heat-resistant rock wool |
| Roof panel | Single layer galvanized plate bending forming |
Door
| Entrance Door | 3200×2550 mm (W×H); 2 + 1 structure; Containing
frame, filled with heat-resistant EPS |
| Working door | 800×2000 mm(W×H); frame structure working door;
with safety glass observation window |
Ceiling light
| QTY and power | 8 sets of light fixtures, each 4X36W, 1152W in total |
| Lighting arrangement | On both sides |
| Lighting description | IP55 lighting boxes, CE certified electronic rectifier,
OSRAM lamp |
| Brightness | > 800Lux |
Filtration System | Pre-filter | G2 grade pre-filter plate filter |
| Ceiling filter | F5 class filter cotton, Model SP-600G |
| Bottom paint mist collecting | Fiberglass paint-resistance filters |
| Inlet System | Inlet fan | Adopt big impeller turbo fan |
| Fan power and motor | 7.5KW, 970 rpm, 380 V, 50 Hz |
| Parameter of inlet fan | 25000m3/h , 650pa |
| Empty loaded air speed | +/- 0.25m/s |
| Noise | <78 db |

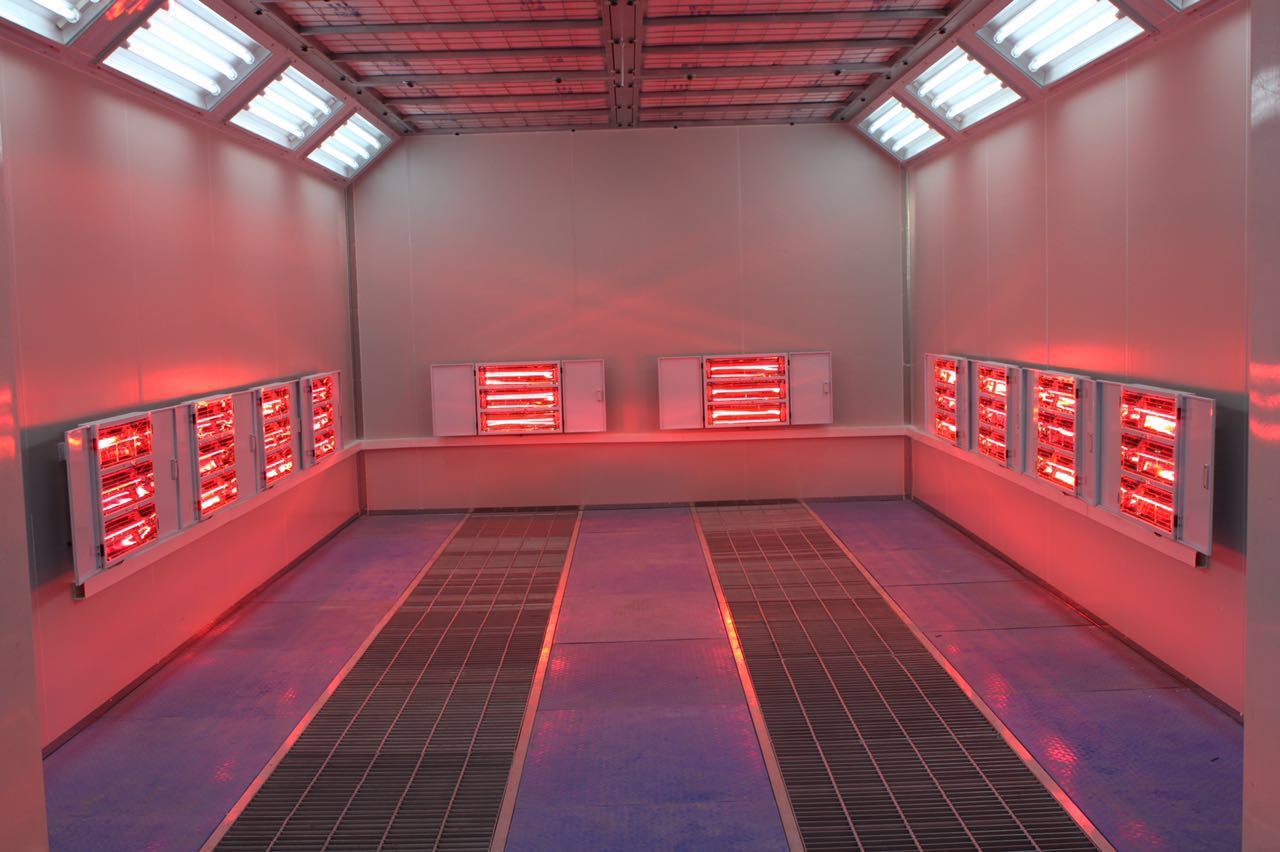

Infrared system | Drying System form | Infrared ray |
| Power | 10 units, 3X1KW/unit, total 30KW |
| Arrangement | 4 units on both sides, 2 units on back wall |
| Control system | Implementation of standards | BS EN 60204:2006+A1:2009 |
| Features | painting, baking, lighting, emergency stop switch,
temperature display, failure indication |
| Special Item | Rated power:40KW |
3. Why Choose Infiech?

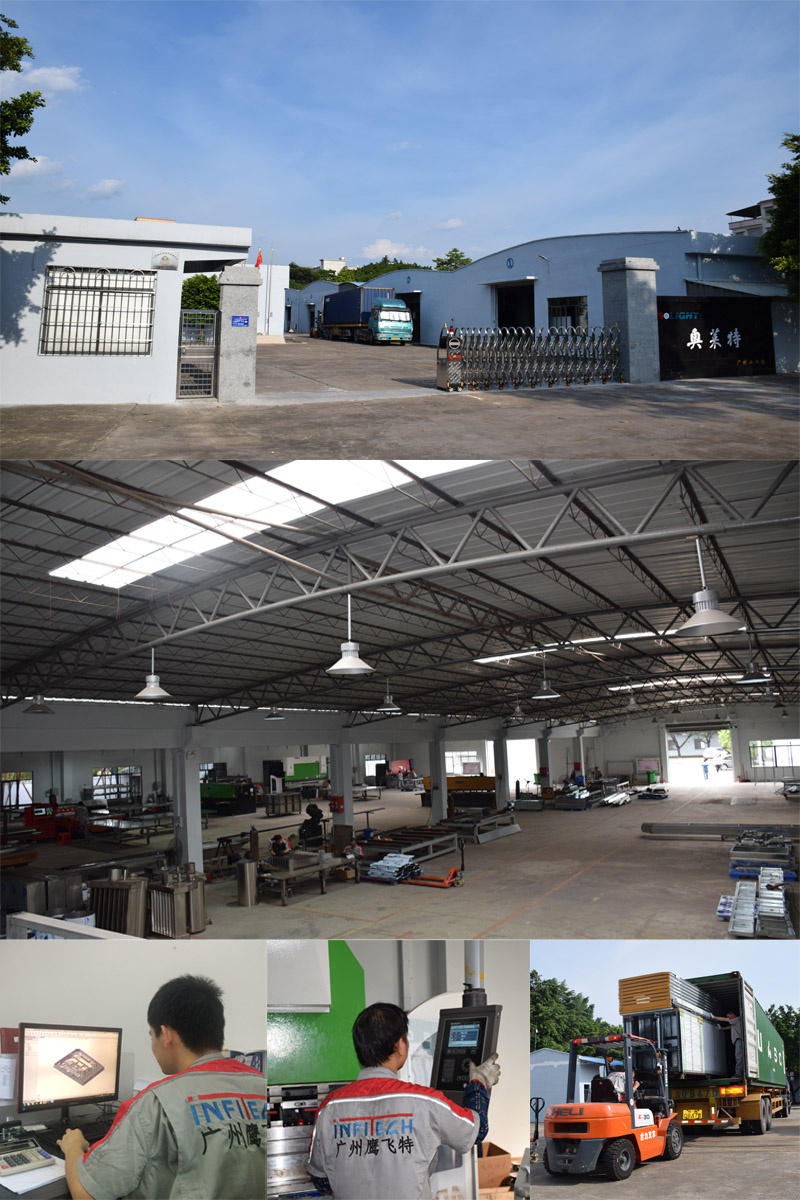

4. Factory photos

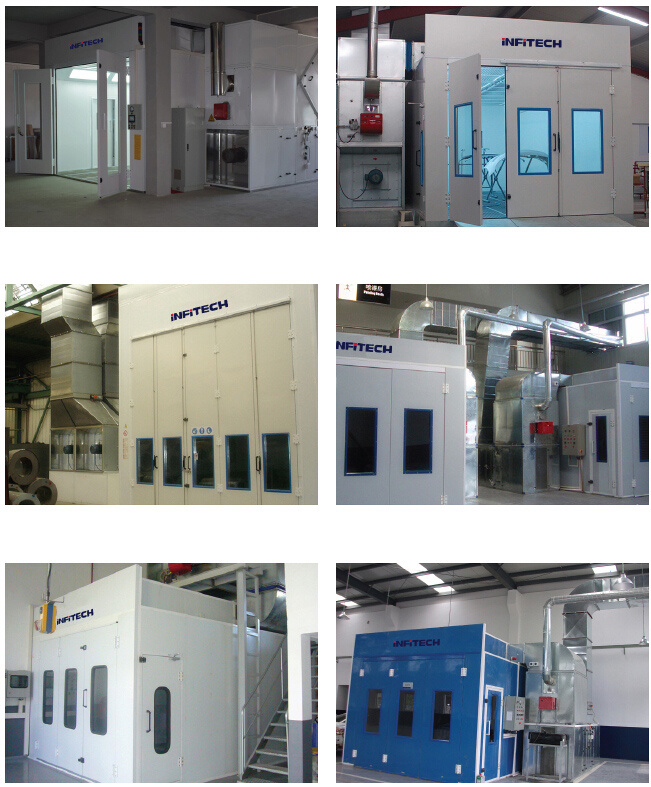

5. Sussessful Story
Please feel free to contact us if you have any queires/inquiries/comments. Thanks for your kind attention.
| Prod Model: |
YFT-101 |
| Total Fan Capacity: |
18000m3/H |
| Empty Loaded: |
+/- 0.18m/S |
| Inlet Fan: |
5.5kw |
| Internal Dimension: |
6900X4000X2650mm |
| Warranty: |
2 Years |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Infrared Ray |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is a focus on industrial coating equipment research and development, design, manufacturing, technical consulting, sales, installation of high and new technology enterprise. We have a professional and experienced technical team, perennial exchanges and cooperation with design institutes, universities, undertake pretreatment, sandblasting, electrophoresis equipment; Grinding, drying equipment, dust removal, paint on the surface andDust-free spray and automatic spraying production line.
Products used in cars, buses, trucks, special automobile and auto parts production, elevator manufacturing, locomotives, construction machinery, military industry, machine tool, plastic spraying, and many other industries. Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. Adhering to the "continuous learning, continuous innovation, the pursuit of excellence, Shared success" business philosophy, to comply with the needs of modern industry of coating equipment products, carefully committed to the new technology, new material, the use of new technology, research and development and innovation, to ensure that provide customers with competitive solutions and high quality service.
