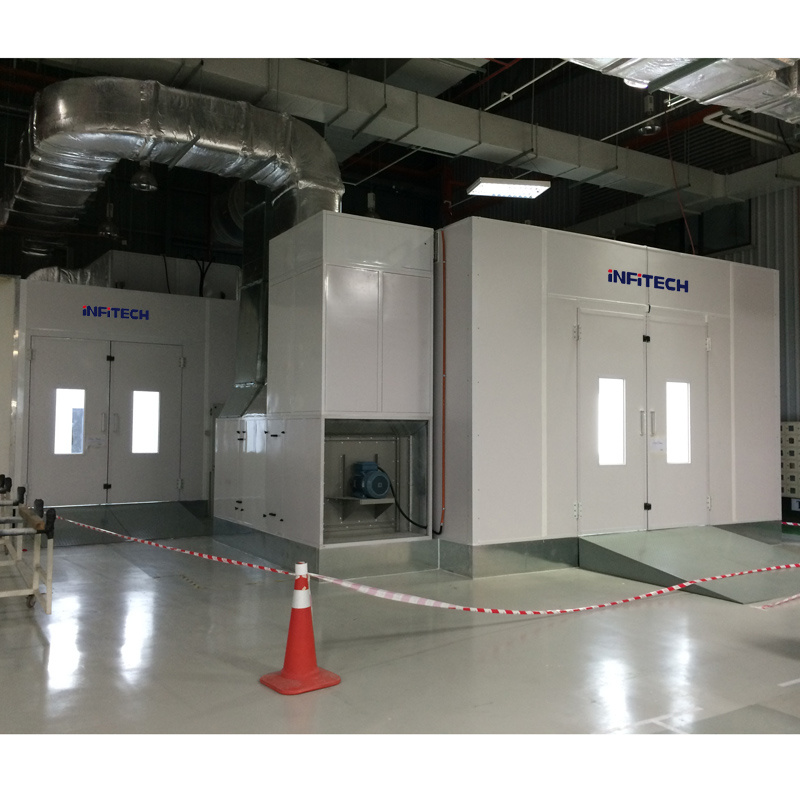

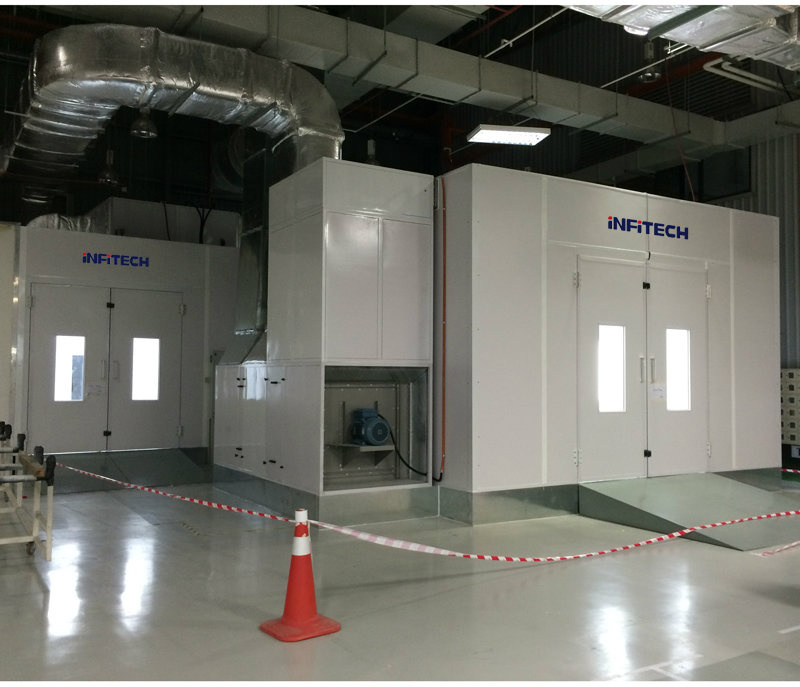

Customized Spray Booth for Aircraft Parts

Name: Customized Spray Booth for Aircraft Parts
Brand: ibuyautoparts.com
SKU: 715091062
Availability: InStock
Rating: 5 (82 reviews)

Price:	US $ 10000-35000/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Customized spray booth for Aircraft Parts

Certification: CE
Management Certification: ISO9001:2000
Warranty: 2 Years
Parameter:

A.PAINTING BOOTH

Airflow	Internal Size(mm)	External Size(mm)	Heating Modes	Inlet/Exhaust fan	Ceiling Lights (LED)	Side lights (LED)	Empty Loaded Air Speed
Full downdraft	7000X5480X3250	7050X7230X4060	/	2X11KW	8 sets/4X24W	10sets/4X24W	0.25 m/s

B.WARM ROOM

Airflow	Internal Size(mm)	External Size(mm)	Heating Modes	Inlet/Exhaust fan	Ceiling Lights (LED)	Side lights (LED)	Empty Loaded Air Speed
Oblique flow	4520X9400X3250	4620X10960X4060	Electric	3.5KW	12set/4X24W	/	0.13 m/s

Airflow
1.Downdraft for spray.
2.Innovative high efficient big impeller fan ,sparkproof design.

Entrance door
1.1+1 structure, 2 observation windows with armoured glass.
2.Safe door, observation windows with armoured glass, emergency lamp, door closer.

Cabin structure
1.Full grids, 900kg/wheel.
2.60mm heat-resistant rock wool panel, base plate thickness:0.6mm.
3.600mm height plenum chamber.
4.European bulge roof design.

Electric heating system
1. 60KW
2. Cabin pressure self-adjusting
3. Double protection with over temperature

Control system
1. Inverter energy saving system.
2. Water-based paint high efficient model.
3. Painting, warm painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication.

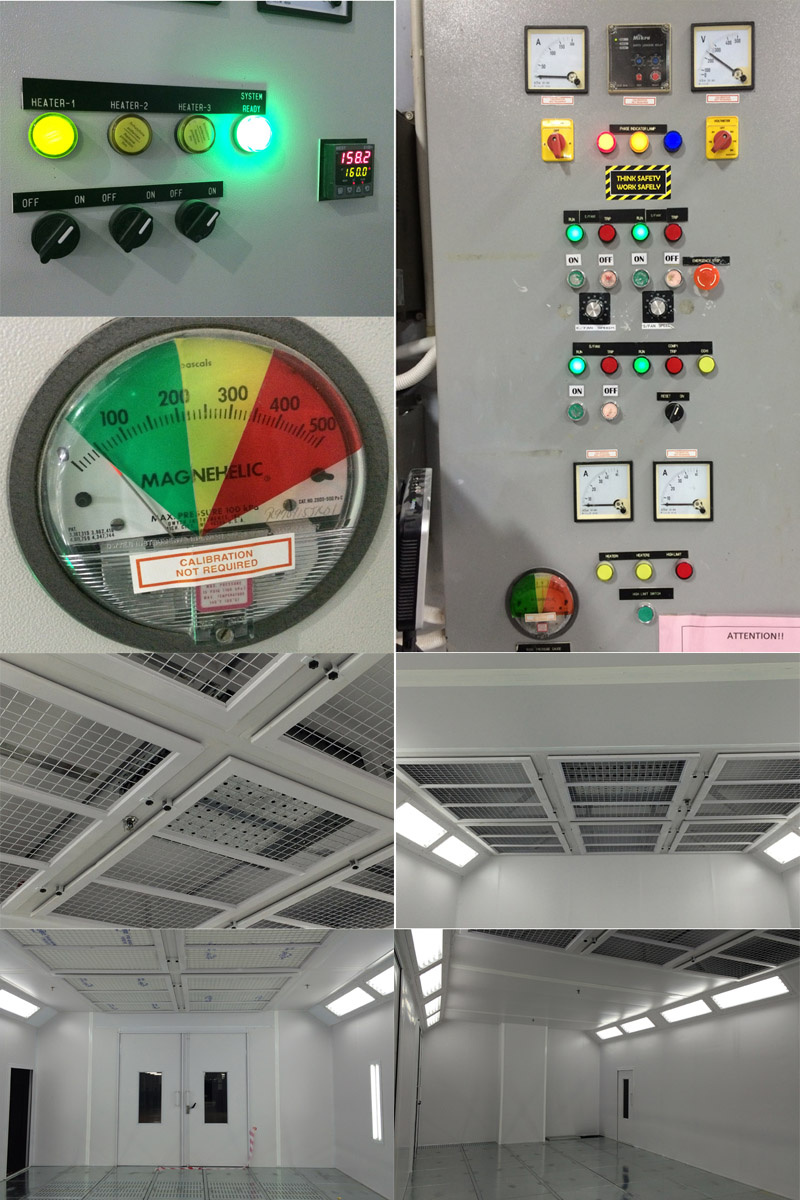

Product details

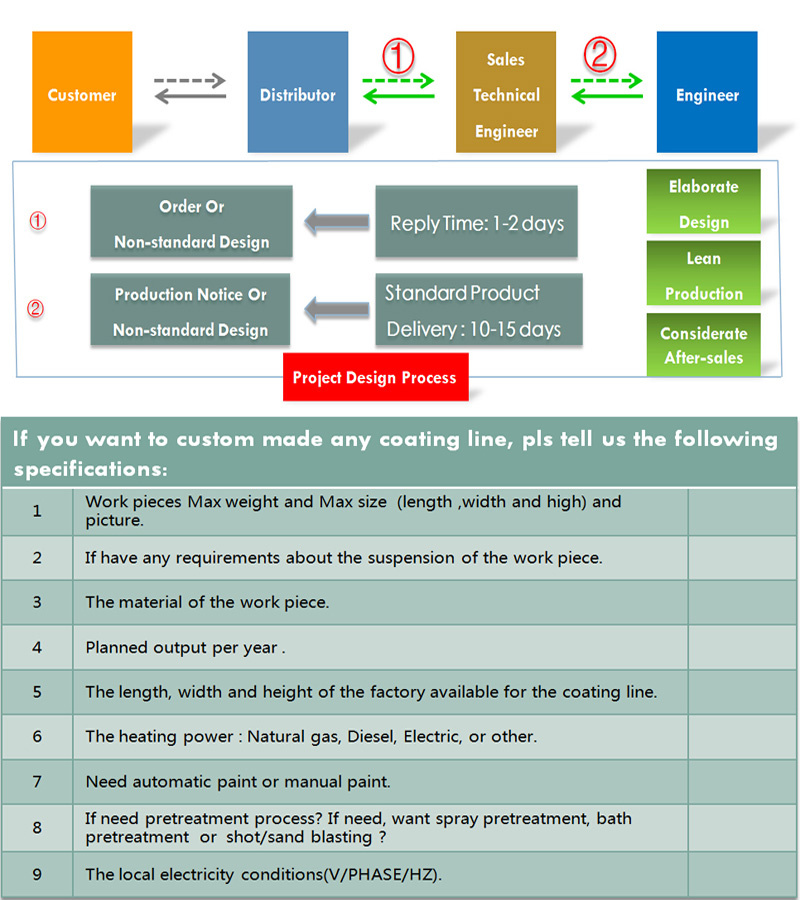

Project Design Process

Company Information

Prod Model:	Customized
Optional Colour:	White, Blue, Orange and Red
Total Fan Capacity:	35000m3/H
Brightness:	>1500 Lux
Empty Loaded:	+/- 0.25m/S
Service Time:	Lifelong Maintenance
Motor Brand:	ABB
Air Exhaust:	Optional
Voltage:	415V, Your Special Voltage Is Accepted.
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Electric
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Infitech

Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is a focus on industrial coating equipment research and development, design, manufacturing, technical consulting, sales, installation of high and new technology enterprise. We have a professional and experienced technical team, perennial exchanges and cooperation with design institutes, universities, undertake pretreatment, sandblasting, electrophoresis equipment; Grinding, drying equipment, dust removal, paint on the surface andDust-free spray and automatic spraying production line.

Products used in cars, buses, trucks, special automobile and auto parts production, elevator manufacturing, locomotives, construction machinery, military industry, machine tool, plastic spraying, and many other industries. Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. Adhering to the "continuous learning, continuous innovation, the pursuit of excellence, Shared success" business philosophy, to comply with the needs of modern industry of coating equipment products, carefully committed to the new technology, new material, the use of new technology, research and development and innovation, to ensure that provide customers with competitive solutions and high quality service.
