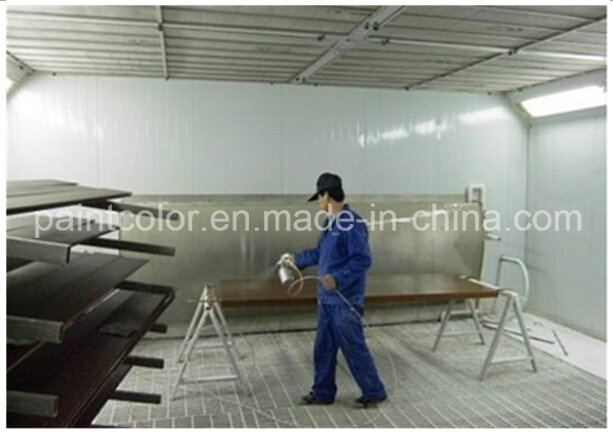

Water Curtain for Furniture Used Paint Booth
| Price: |
US $ 5000-7000/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Paintcolor customized funiture wet type paint booth 5-3-2.75m with water curtain systemAny booth size request can be met!!!Paintcolor company quantifies the production of standard spray booth; at the same time, "one-to-one" service is our important and special sale method and service. For different countries and the special requirements of different customers, we make the design and produce the booth based on the size of the site, the workpiece, the type of paint and the budget level. It really 100% stands on your point to solve all the problems. Paintcolor is the one specialty spray booth manufacturer you can not miss.
| Specification in detail |
| Body structure | Outside dimension: 5106*4556*3500mm (L*W*H) |
| Inside dimension: 5000*3000*2750mm (L*W*H) |
| 3) Basement: galvanized steel assemble, 300mm high with quadrate steel support. All twisted stell grills; |
| Main door: 2-fold( 2 leaf), 2400*2600mm (W*H);1pcs; |
| Working door: 650*1800mm (W*H), 1pcs; |
| Wall Panels: thickness is 50 mm, and insulation is flame-resistant and heat-preserving EPS panel 0.426mm double skinned sheet;galvanized sheet roof plate; |
| Generator: back upper intake air, back upper extract air, quadrate steel frame, powder coating steel; |
| Lighting system | Lighting: Ceiling Lights: 6Groups*4Pcs=24Pcs *36W;Philips lamps |
| Lighting: Side Lights: 6Groups*2Pcs=12Pcs *36W;Philips lamps |
| Glass: all glass is toughened glass; |
| Air ventilation system | Air ventilation system: |
| Intake fan: 1set centrifugal fan, 4KW motor, air capacity: 12500m3/h |
| Exhaust fan: 1set centrifugal fan, 3KW motor, air capacity: 10700m3/h |
| Air exhaust pipe: 4m from the cabin and 1 elbow; |
| Filtering system | Filtering system: Pre-filter, high efficiency filter (ceiling filter), exhaust filter; |
| Electric control system | Control box: Schneider electric components; spraying, time setting, lighting switch, hour meter, emergency stop, failure indicator; |
| Water curtain system | Water pump model: ISW-50-125
Water volume: 22m3/h
Water lift: 12m
Pump power: 1.5KW
Pump quantity: 1set |
| Prod Model: |
PC-CMB (5-3-2.75m with water curtain paint booth) |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Warranty Time: |
2 Years |
| Service Time: |
Lifelong Maintenance |
| Color: |
White, Blue, Red or Orange |
| Voltage Requires: |
380V/3p, 220V/3p Or220V/1p |
| Intake Fan Air Volume: |
12500m3/H |
| Inside Unloaded Air Speed: |
0.5m/S |
| Luminance: |
More Than 800lux |
| Noise: |
Less Than 80dB |
| Tsp (Mg/ M3): |
Less Than 1.4 |
| Heating System: |
Diesel or Infrared Lamp |
| Certification: |
CE |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Painting Booth |
| Brand: |
Paintcolor |
Guangzhou Paintcolor Mechanical Equipment Co., Ltd. Started in 1999 and was established in 2005. It's an enterprises engaged in the field of surface treatment technology and focused on painting and coating equipment research, development, production and sales. The company is located in China's most developed industrial areas Guangzhou City, Guangdong Province. It takes 20mins to Guangzhou Baiyun International Airport. The new company Foshan Paintcolor Trade Co., Ltd was established in 2017. It's an independent sale center; Elaborate product promotion for better customer experience and service support.
Our main products includes paint booth, car spray booth, industrial paint booth, powder spray booth, auto shower testing booth, sheet metal machines, reciprocating machine, cyclone powder recovery system, powder gun, and powder coating line. Products have SGS and CE certificate.
The company has consistently adhered to the excellent staff, advanced technology and sophisticated equipment, and strict implementation of quality management system ISO900I. With "accurate, reliable, professional" the spirit of the production and service faith, the company has grown in strength and won the customers trust in the past ten years. Currently our products are sold throughout the country 34 provinces, autonomous regions and municipalities, and exported to the United States, Russia, Germany, Ghana, Indonesia and other countries.
We actively participate in industry exchanges and outreach activities. In the long process of development, we have established long-term good relations of cooperation with many large domestic manufacturers, based on our perfect product quality, good performance, and leading technology.
We have confidence to face the future challenge as we do 'customer first, service first'. If you are finding the cooperator-reducing costs, improving quality and persistent service, 'Paintcolor' is one of the best choose you can't miss.
