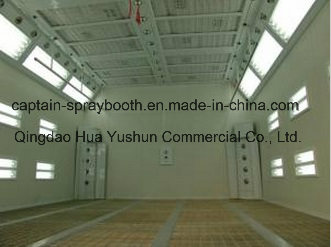

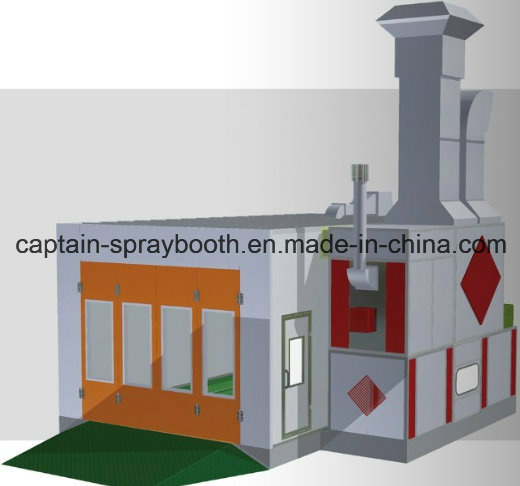

Water-Based Spray Booth with High Quality
Price: |
US $ 10800/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Outside Dimension (mm) | 7000 * 5400 * 3250(L*W*H) | Inside Dimension(mm) | 6900 * 3900 * 2600(L*W*H) |
Front Door(mm) | 2800*2500(W*H) | Service door (mm) | 1800*650(W*H) |
Total Power | 42KW |
Cabin system | Wall panel | 50mm rock-wool panel, double face steel sheet thickness: 0.6mm |
| Ceiling panel | Galvanized steel sheet. |
| Basement | 300mm depth, patented circumferential diamond plate design, middle with grids. |
| Ramp | three 2000*900mm ramps |
| Glass | 6mm safety tempered glass |
| Windows | Square glass Windows |
Air Make-up System | Air Inlet fan system | 2 * 4 kw double-intake belt centrifugal fan, air capacity for each fan: 14500m3/h. |
| Exhausted fan system | 1 * 5.5 kw double-intake belt centrifugal fan, air capacity 18000m3/h. |
| Air Flowing speed | 0.45 m/s in empty booth, 0.35 m/s when painting. |
| Exhausted ducting | 5meters air duct, one flop damper, one weather hood, one anti-bird mesh |

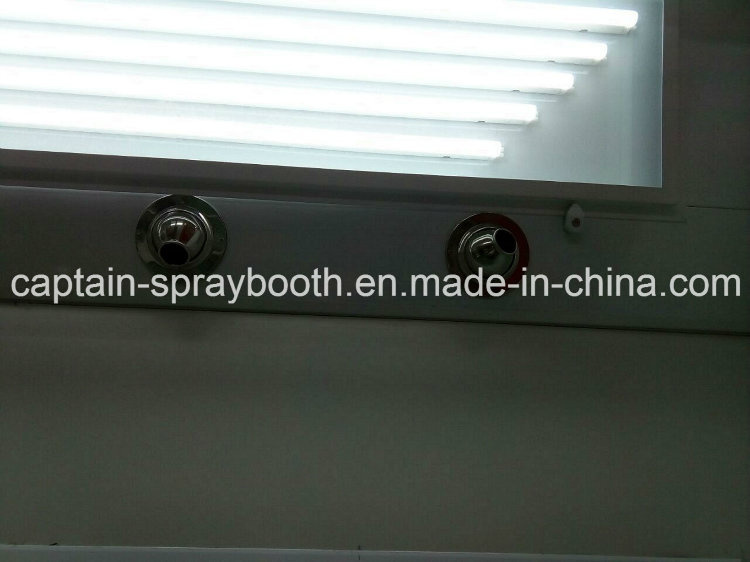

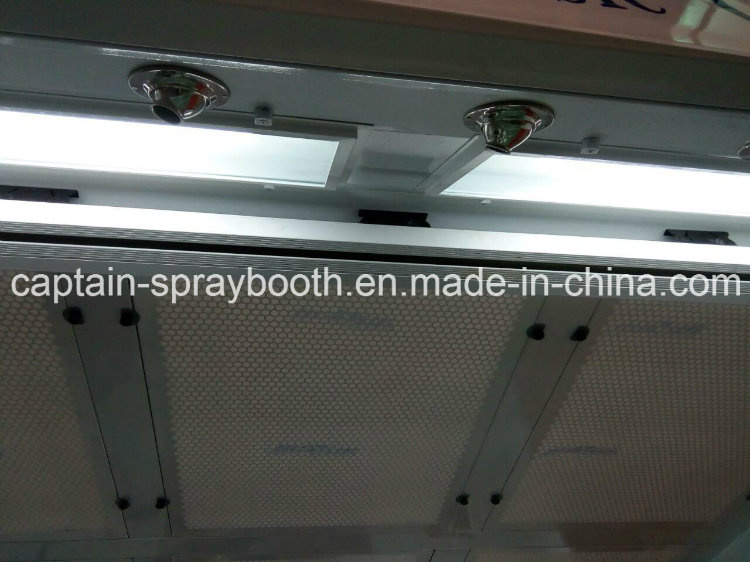

| Water based paint drying system | 60 units ceiling nozzles with 3 sets of centrifugal fans for drying the Water Based Paint. |
Purification System | Pre-filter | G3 grade, Air Inlet filter |
| Ceiling filter | EU5 / F5 |
| Floor filter | green fiber glass filter / G3 grade |
| Exhausted fan Filters | M green fiber glass filter. |
| Heating | With 9 units high energy short wave infra-red lamps for heating. 3 pcs/ unit, each lamp 1 KW, total power of infra-red lamp:27KW |
| Spray to baking switch | One manual damper |
| Max heating temperature Heating time | 80 degree centigrade 4-6min(20-60 degree centigrade) |
Lighting System | Ceiling lights | 8 Units, each 4 x 36W Philips lamps, Total 1152 W |
| Illumination | 960LUX |
Controlling system | Switched control panel | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm |
Prod Model: |
W-UP1006 B |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Outside Dimension: |
7000 * 5400 * 3250(L*W*H) |
Inside Dimension: |
6900 * 3900 * 2600mm |
Front Door(mm): |
2800*2500(W*H) |
Service Door (mm: |
1800*650(W*H) |
Total Power: |
42kw |
Wall Panel: |
50mm Rock-Wool Panel, 0.6 Steel |
Basemen: |
300mm Depth with Grids |
Certification: |
CE |
Airflow Direction: |
Fully Undershot-type |
Heating Mode: |
Electric |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Brand: |
Captain |
