Hot Sales Spray Booth/Painting Booth with Electric
| Price: |
US $ 6000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Excellent spray booth
1, CE approvel, ISO9000 safety control
2, Easy to operate and environmental type
3, Can remake the design according to your request
4, We have the best after-sales service
5, Italy RIELLO diesel burner
Can remake the design according to your requestDetailed Specifications| Items | Spec |
| Outside Dimension | 7000×5000×3200mm(L×W×H) |
| Inside Dimension | 6900×3900×2600mm(L×W×H) |

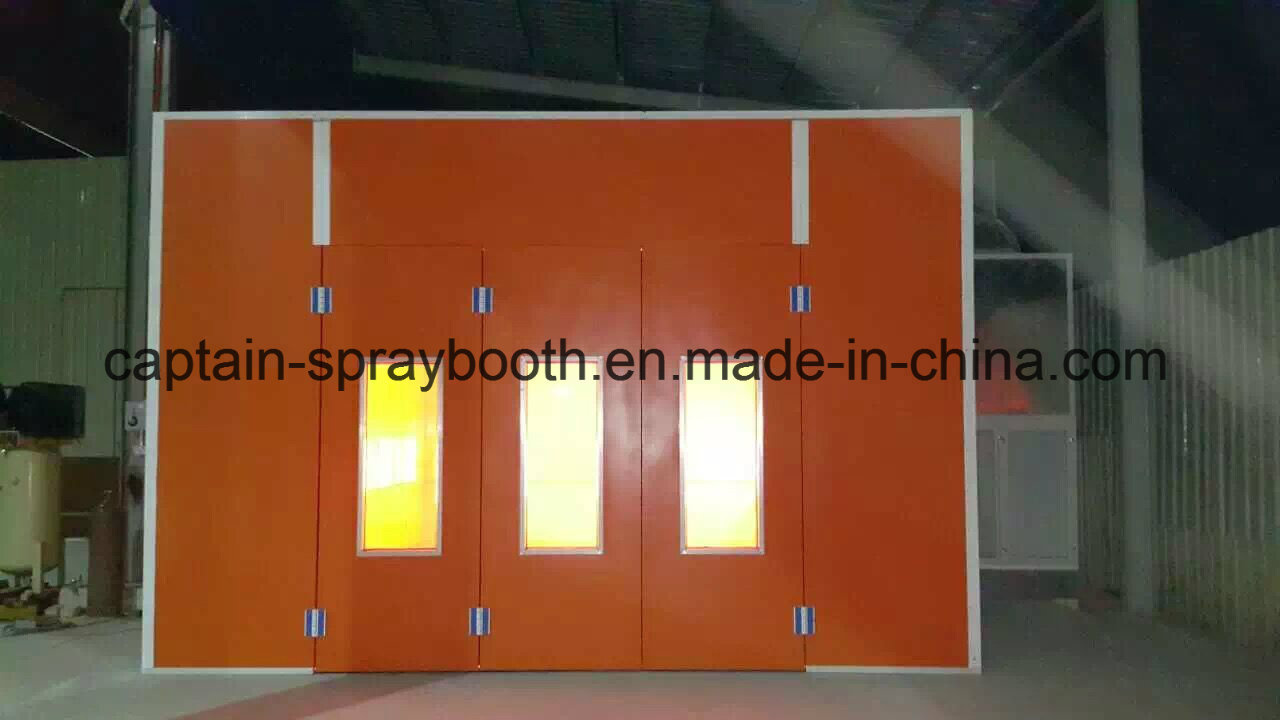

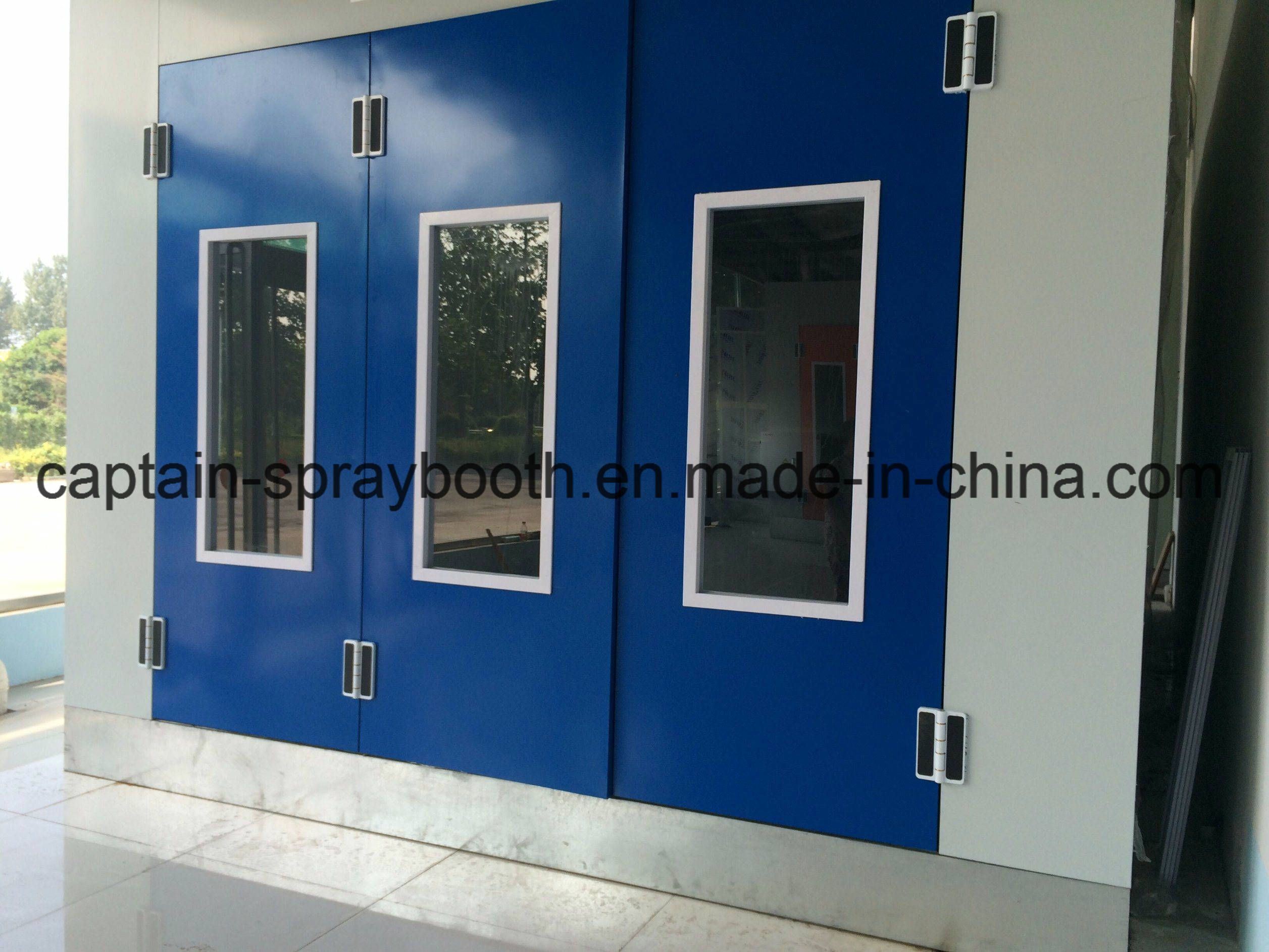

| Main Door | 3-folds: 2800×2500mm (W×H), aluminium alloy door frame |
| Personal Door | 1-fold: 650×1800mm (W×H),aluminium alloy door frame |
| Wallboard | 50mm double skinned EPS heat preservation wall panel with tongue and groove joints,steel 0.3mm thick |
| Basement & Floor | Complete steel assemble, height is 300mm, pave 2rows indented plates and 3rows grilles on the metal basement,
2Pcs ramps: 520×2000mm (W×L)/pc
|

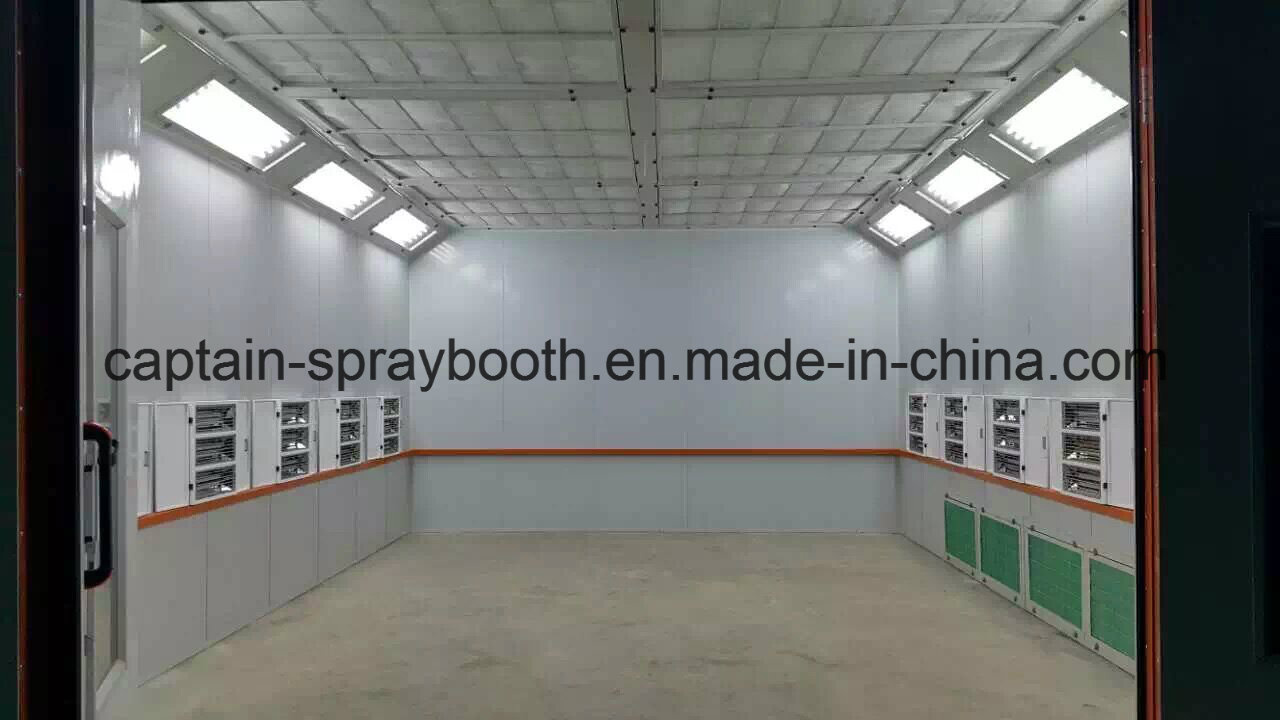

| Lighting System | Inclined ceiling lights: 24Pcs of 40W lamps |
| Generator Setting | Intake air from side back direction, quadrate steel frame, colourful coated steel plate |
| Intake Fan | 2set 3 Kw centrifugal fan, direct drive, air capacity is 30000m³/h |
| Extract Fan | Optional |
| Number Of Air Changes (times/hour) | 290 |
| Wind Velocity At Full Load Inside The Room(M/S) | 0.30m/s |
| Heating System | Infrared heat lamp heating: roast lamp is fixed on the wall, each roast lamp 1 kw, 3 teams in each group, total 24 kw power.
(Infrared heat lamp number can change according to customer requirements) |
| Maximum Working Temperature | 80 |
| Heating Rate(/min 20--60) | 4-6 |
| Filtering System | Primary filter, high efficiency filter, |
| Control Panel | Spraying, heat spraying, baking temperature, time setting, failure indicator, lighting switch |
| Filter Efficiency | ≥98% |
| Noise(db) | ≤75 |
| Colour | Blue,red,white |
| Total power(Kw) | 33KW |
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional leading factory in China, who is specializing in manufacture kinds of paint spray room system. And also offering full garage equipments, such as
Car care equipment.
Car spray&baking room system
Bus spray&baking room system
Furnitue spray&baking room system
Industrial painting&baking room system
High temperature baking room system
Customized spray&bake booth and Offer car spray baking booth accossories
Services We Supply
Customized service
More Than 90% Of Our Spraying Booth Is Customized.
1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.
2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.
After-sales service
1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. We provide 2 years warranty.
| Prod Model: |
D-BZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inside Dimension: |
6900*3900*2600mm(L*W*H) |
| Outside Dimension: |
7000*5000*3200mm(L*W*H) |
| Main Door: |
3-Folds: 2800*2500mm(W*H) |
| Personal Door: |
1-Fold:650*1800mm(W*H) |
| Wallboard: |
50mm Double Skinned EPS,0.3mm Steel |
| Basement: |
Complete Steel Assemble |
| Lighting System: |
Inclined Ceiling Lights: 24PCS of 40W Lamps |
| Intake Fan: |
2*3kw |
| Extract Fan: |
Optional |
| Heating System: |
Infrared Heat Lamp Heating |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Substrate: |
Sandwich Panel |
| Brand: |
Captain |
Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
