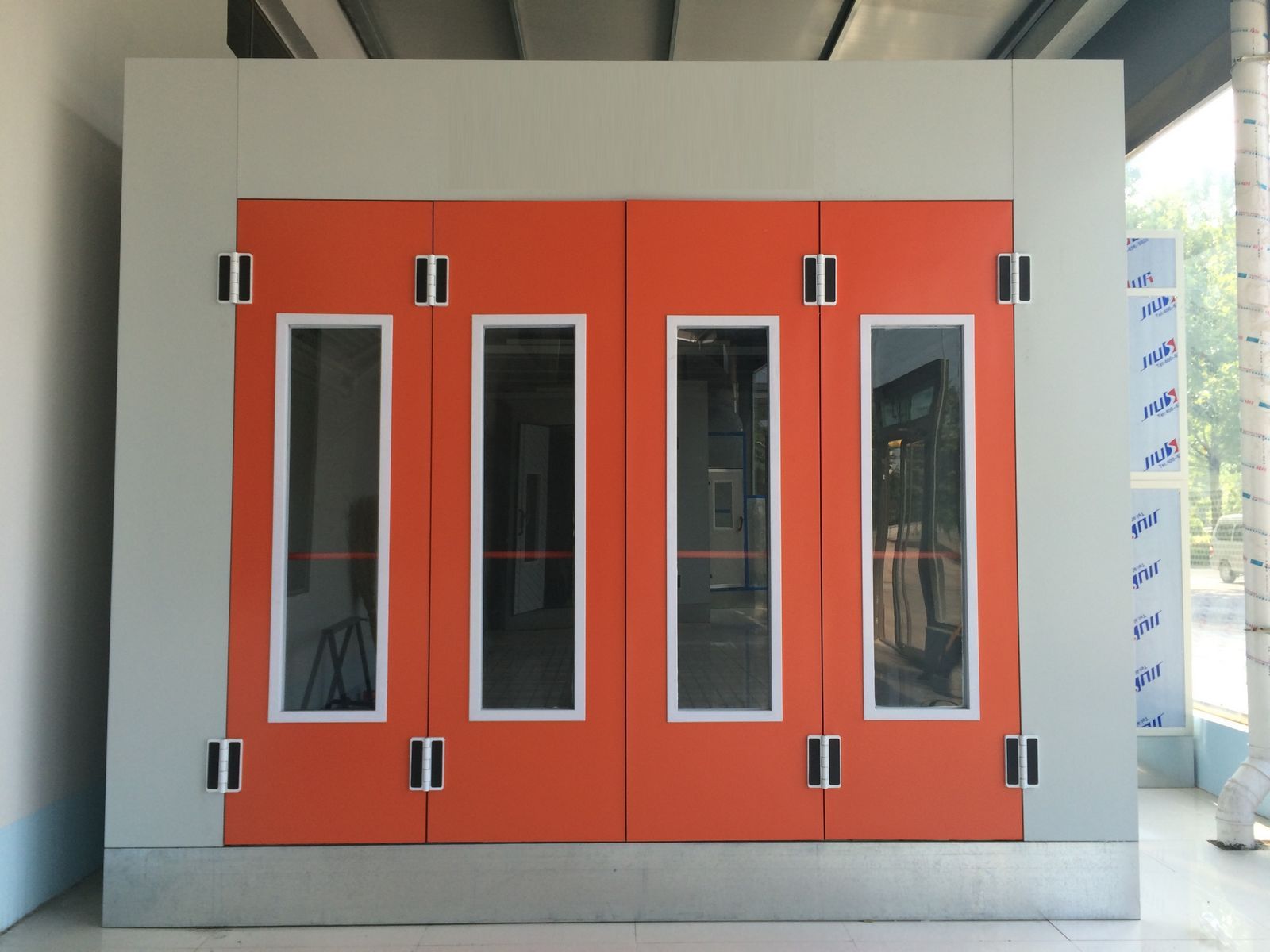

Spray Booth/Paint Box for Cars
| Price: |
US $ 8260/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Detailed Product Description

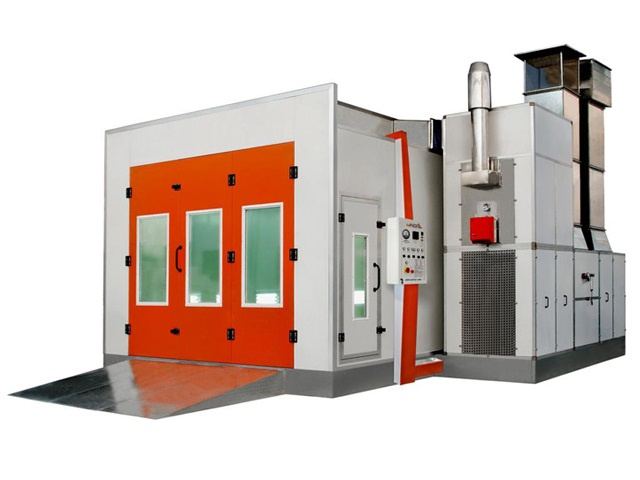

Turbo Fan Electrical Heat Downdraft Auto Spray Booths For Automobile Painting, Maintenance | Item | Detailed specification |
| Inside dimension |
6900×4000×2800 mm(L×W×H) |
| Outside dimension |
7050×5500×3500 mm(L×W×H) |
| Front door |
Folding door, 4 folds, 3200×2600 mm(W×H), without frame cover, color : blue. |
| Emergency door |
1 unit, 650×2000mm(W×H), color: white |
| Basement | Galvanized steel assemble, 300mm high, quadrate steel support,
2 rows grilles made by flat bar and twisted steel, galvanized,
3 rows diamond plate , galvanized; 3ramps, 900×2000mm/pc. |
| Wall panel |
Thickness: 75mm, width:950mm, tongue and groove structure, 0.6mm color steel
with rock wool inside, color: white. |
| Light |
Ceiling Lights: 8Units×4Pcs=32Pcs×36W, Side Lights: 12Units×4Pcs=48Pcs×18W,
with electronic ballasts, lighting boxes open outside, illumination≥1200Lux |
| Generator cabinet |
Intake from back upper, exhaust from back upper, white coated steel outside covered,
galvanized steel inside, filled with heat preservation material inside. |
| Intake and Exhaust system |
Inlet: 2×4 KW Double-intake belt centrifugal fan, power: 4 KW,
air capacity: 29000m3/h. |
Outlet: 1×7.5 KW turbo fan, power: 7.5KW, air capacity: 25000m3/h. |
| Heating system |
Italy Riello FS20 LPG gas burner, 260000Kcal/h,
stainless steel heat exchanger,
Max. heating productivity: 260000Kcal/h. |
| Chimney ducting | 304 Stainless ducting and one safe fireproof chimney elbow. |
| Purification system |
Pre-filter, ceiling filter, fiberglass filter, activated carbon filter |
| Roof |
Powder coating filter frame. |
| Control system |
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator,
thermostat, power supply switch,emergency stop, hour meter,
temperature limit controller, pressure gauge. |
| Total power | 18.0 KW |
| UNIT PRICE (FOB QINGDAO) | $8260 |
Detailed Product Description
Turbo Fan Electrical Heat Downdraft Auto Spray Booths For Automobile Painting, Maintenance
1) For car painting and baking
2) maintains a high level of safety and performance together with top quality construction and materials
3) Various systems of environmental protection are optional for customers
4) A wide range of colors available: white, red, marine blue, gray, orange
5) Trustworthy durability of each parts
6) Good after-sales servicePackaging & DeliveryPackaging Detail:Export professional packages.Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish
Delivery Detail:To effect shipment within 7 days after deposit
Spray Booth Specifications
1.German Technology
2.spray booth professional manufacturer
3.competitive price and assure quality
4.CE approved
| Prod Model: |
UP1006 GAS A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inside Dimension: |
6900X4000X2800mm(Lxwxh) |
| Outside Dimension: |
7050X5500X3500mm(Lxwxh) |
| Front Door: |
4 Folds, 3200X2600mm(Wxh) |
| Emergency Door: |
1 Unit, 650X2000mm(Wxh) |
| Basement: |
2 Rows Grilles, 3 Rows Diamond Plate |
| Wall Panel: |
75mm Rock Wool with 0.6mm Steel |
| Light: |
32PCS Ceiling Lights, 48PCS Side Lights |
| Intake And Exhaust System: |
2X4kw Inletting, 1X7.5kw Outleting |
| Heating System: |
Italy Riello Fs20 LPG Gas Burner |
| Total Power: |
18.0 Kw |
| Certification: |
SGS |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Paint Booth |
| Brand: |
Captain |

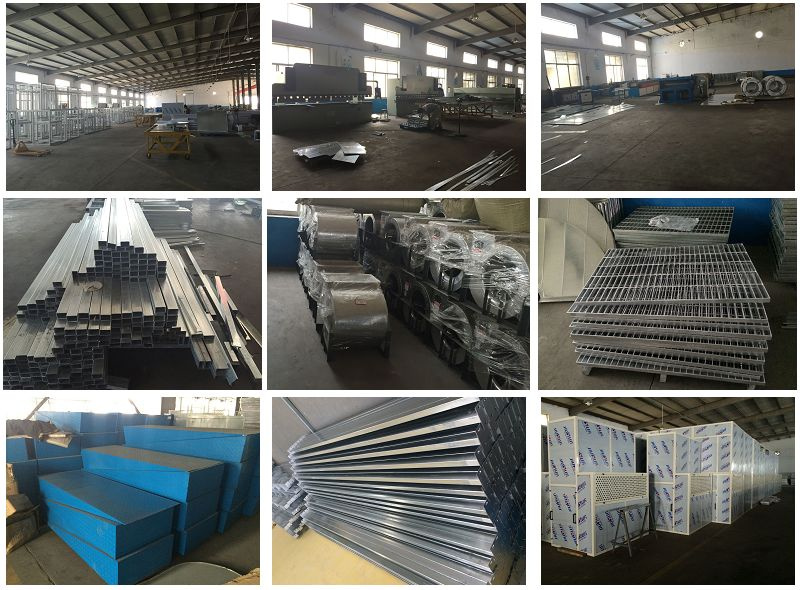

Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
