Ce Standard Spray Booth with High Quality
| Price: |
US $ 4800-6900/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.| Items | Spec |
| Outside Dimension | 7050×5050×3500mm(L×W×H) |
| Inside Dimension | 6900×3900×2800mm(L×W×H) |
| Main Door | 3-folds: 3000×2750mm (W×H), aluminium alloy door frame |
| Personal Door | 1-fold: 800×1900mm (W×H),aluminium alloy door frame |
| Wallboard | EPS colorful steel skin panel,75mm thick,steel 0.476mm thick,tongue groove style,compound construction,anti-flame and heat-insulation, aluminium roof panel. |
| Basement & Floor | Complete steel assemble, height is 300mm, pave 3rows indented plates and 2rows grilles on the metal basement, 2Pcs ramps: 800×2000mm (W×L)/pc |

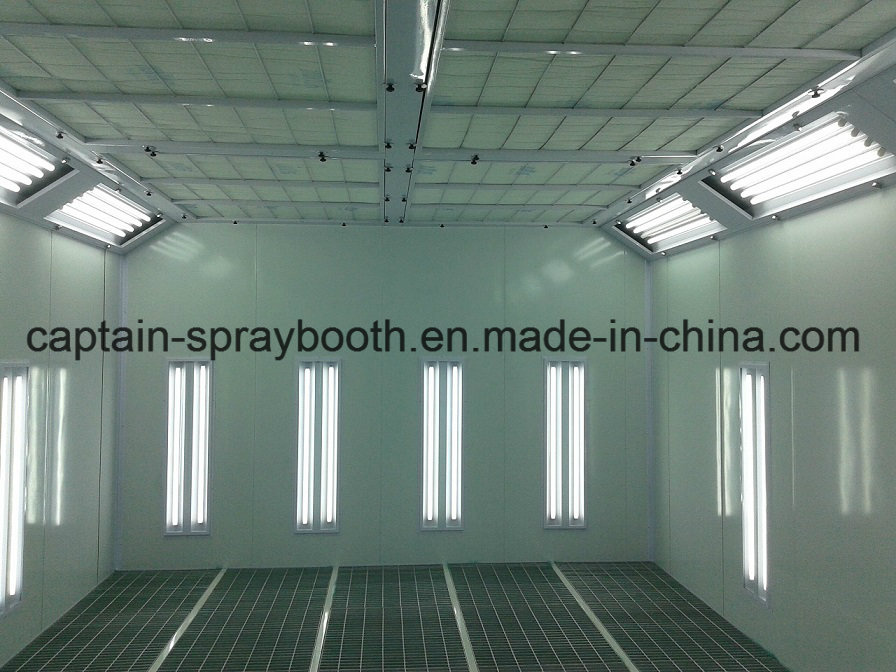

| Lighting System | Ceiling Lights: 8Units×3Pcs=24Pcs×40W, with electronic ballasts,power-coated light box.Side Lights: 6Units×3Pcs=18Pcs×36W, with electronic ballasts, vertically set,power-coated light box. |
| Generator Setting | Intake air from side back direction, quadrate steel frame, colourful coated steel plate |
| Intake Fan | 2 sets of double-intake centrifugal fans for intake air, direct drive,5.5kw each,air capacity 30000m3/h in total. |
| Extract Fan | 1 set of double-intake centrifugal fan for exhaust air, direct drive,7.5kw, air flow 20000m3/h in . |
| Number Of Air Changes (times/hour) | 290 |
| Wind Velocity At Full Load Inside The Room(M/S) | 0.3m/s |
| Heating System | 1set Riello RG5S brand diesel oil burner, maximum heat productivity is 260,000Kcal/h, stainless steel heat exchanger, highest temperature is 80oC, electric damper executes from spraying to baking cycle .
|
| Maximum Working Temperature | 80 |
| Heating Rate(/min 20--60) | 4-6 |

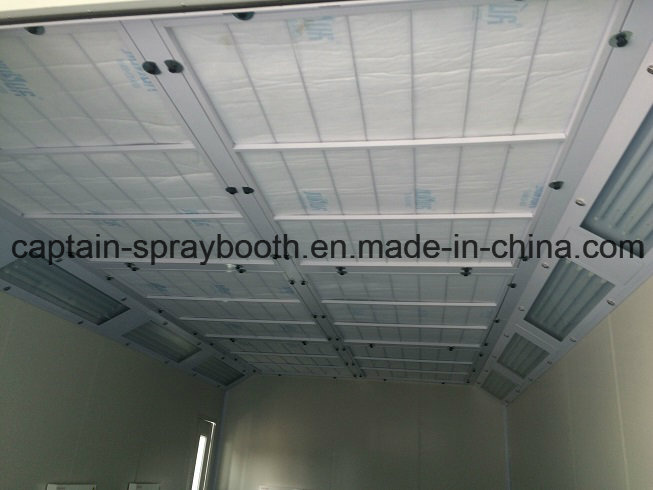

| Filtering System | Pre-filter,600G high efficiency filter(ceiling filter),floor filter(fiberglass filter),activated carbon filter. |
| Control Panel | Spraying, heat spraying, baking temperature, time setting, failure indicator, lighting switch |
| Filter Efficiency | ≥98% |
| Noise(db) | ≤75 |
| Colour | Blue,red,white |
| Total power(Kw) | 21KW |
Also we can design the spray booth according to your need,so just tell me your needs,we can give you the best solution.
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
| Prod Model: |
Captain Y-BZ Spray Booth |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outside Dimension: |
7050X5050X3500mm(Lxwxh) |
| Inside Dimension: |
6900X3900X2800mm(Lxwxh) |
| Main Door: |
3-Folds: 3000-2750mm (Wxh), Aluminium Alloy Door |
| Personal Door: |
1-Fold: 800-1900mm (Wxh),Aluminium Alloy Door Fram |
| Wallboard: |
EPS Colorful Steel Skin Panel,75mm Thick,Steel 0.4 |
| Basement & Floor: |
300mm Height, 2 Grills |
| Lighting System: |
Ceiling: 8unitsx3, Side: 6unitsx3 |
| Intake Fan: |
2X5.5kw |
| Extract Fan: |
1X7.5kw |
| Filtering System: |
600g High Efficiency Filter,Activated Carbon Filte |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Captain |
