Water Based Paint Spray Booth with Nozzles
| Price: |
US $ 6900/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Outside size | 7000*5300*3500mm(L*W*H) |
| Inside size | 6900*4000*2800 |
| Front Door(Mm) | 2800(W)*2600(H) |

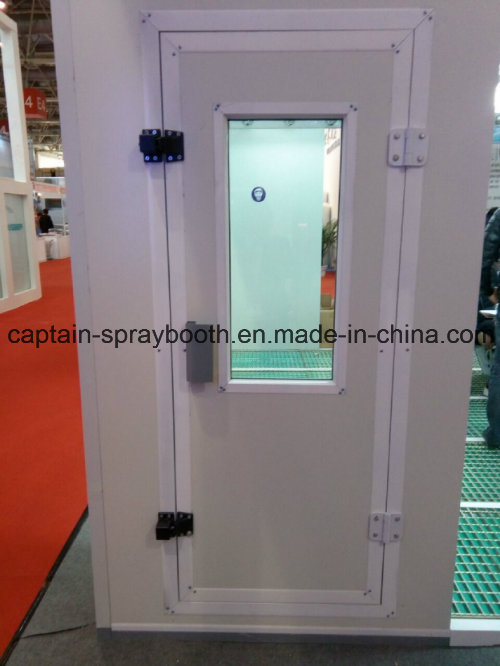

| Service Door(Mm) | 650*1800mm |
| Total Power | 12 Kw |
| Wallboard | 50mm EPS Panel, 0.3mm Steel |
| Basement | 2 PCS Ramps, Each Size: 750X2000mm(Wxl) |
| Heating System | Italy Baltut Bt14 Diesel Burner |
FUNCTION
Provides auto painting and drying operation in accordance with health and security norms. Conformity to TSEK quality factor and conformity values is determined with Quality conformity certificate no. 35 -14.02/1557 of 2001. In accordance with the Law no. 132 and TSE legislation, "Production Compliance Certificate " had been consigned. Analysis result executed by TUBITAK ENERGY SYSTEMS and ENVIRONMENT RESEARCH INSTITUTE ENVIRONMENT DIVISION, approved through the report no. B. 02.1BAK. 5.01.52.00/2015 and Project no. 51H2402, that FIRAT Auto Painting Spray Booths does not constitute any environment pollution.
DESCRIPTION

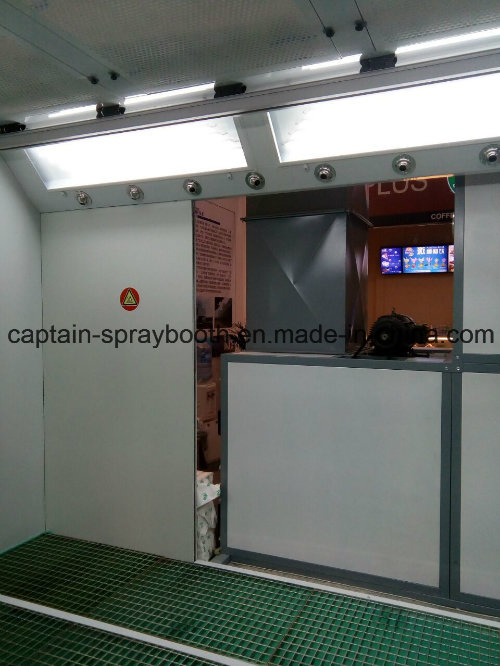

A Painting and Drying Spraybooth is the place in which the vehicle is painted via a spray gun with air channel working under the low pressure and followed by drying. Air derived outside of the facility through the ceiling filter system. Paint particules holded by paint stop filters and decomposed from air. Spray booth is equiped with diesel burner and fan-motor units. In front of the booth entrance, beside the entrance ramp, a metal basement or excavation work, a channel connection to units for air circulation is executed and installed on the facility floor.
| Prod Model: |
Captain-water based |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outside Size(Mm): |
7000*5300*3500mm(L*W*H) |
| Inside Size(Mm): |
6900*4000*2800 |
| Front Door(Mm): |
2800(W)*2600(H) |
| Service Door(Mm): |
650*1800 |
| Total Power: |
12 Kw |
| Wallboard: |
50mm EPS Panel, 0.3mm Steel |
| Basement: |
2 PCS Ramps, Each Size: 750X2000mm(Wxl) |
| Inlet Fan: |
2X3kw Centrifugal Fan |
| Outlet Fan: |
1X4kw Centrifugal Fan |
| Heating System: |
Italy Baltut Bt14 Diesel Burner |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Captain |
Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
