Water Based Paint/Infrared Heating Drying Booth
| Price: |
US $ 8000-20000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Detailed Specifications| Outside Dimension (mm) | 7000 * 5400 * 3250(L*W*H) | Inside Dimension(mm) | 6900 * 3900 * 2600(L*W*H) |
| Front Door(mm) | 2800*2500(W*H) | Service door (mm) | 1800*650(W*H) |
| Total Power | 42KW |
| Cabin system | Wall panel | 50mm rock-wool panel, double face steel sheet thickness: 0.6mm |
| | Ceiling panel | Galvanized steel sheet. |
| | Basement | 300mm depth, patented circumferential diamond plate design, middle with grids. |
| | Ramp | three 2000*900mm ramps |
| | Glass | 6mm safety tempered glass |
| | Windows | Square glass Windows |
| Air Make-up System | Air Inlet fan system | 2 * 4 kw double-intake belt centrifugal fan, air capacity for each fan: 14500m3/h. |
| | Exhausted fan system | 1 * 5.5 kw double-intake belt centrifugal fan, air capacity 18000m3/h. |
| | Air Flowing speed | 0.45 m/s in empty booth, 0.35 m/s when painting. |
| | Exhausted ducting | 5meters air duct, one flop damper, one weather hood, one anti-bird mesh |
| | Water based paint drying system | 60 units ceiling nozzles with 3 sets of centrifugal fans for drying the Water Based Paint. |
| Purification System | Pre-filter | G3 grade, Air Inlet filter |
| | Ceiling filter | EU5 / F5 |
| | Floor filter | green fiber glass filter / G3 grade |
| | Exhausted fan Filters | M green fiber glass filter. |
| | Heating | With 9 units high energy short wave infra-red lamps for heating. 3 pcs/ unit, each lamp 1 KW, total power of infra-red lamp:27KW |
| | Spray to baking switch | One manual damper |
| | Max heating temperature
Heating time | 80 degree centigrade
4-6min(20-60 degree centigrade) |
| Lighting System | Ceiling lights | 8 Units, each 4 x 36W Philips lamps, Total 1152 W |
| | Illumination | 960LUX |
| Controlling system | Switched control panel | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm |

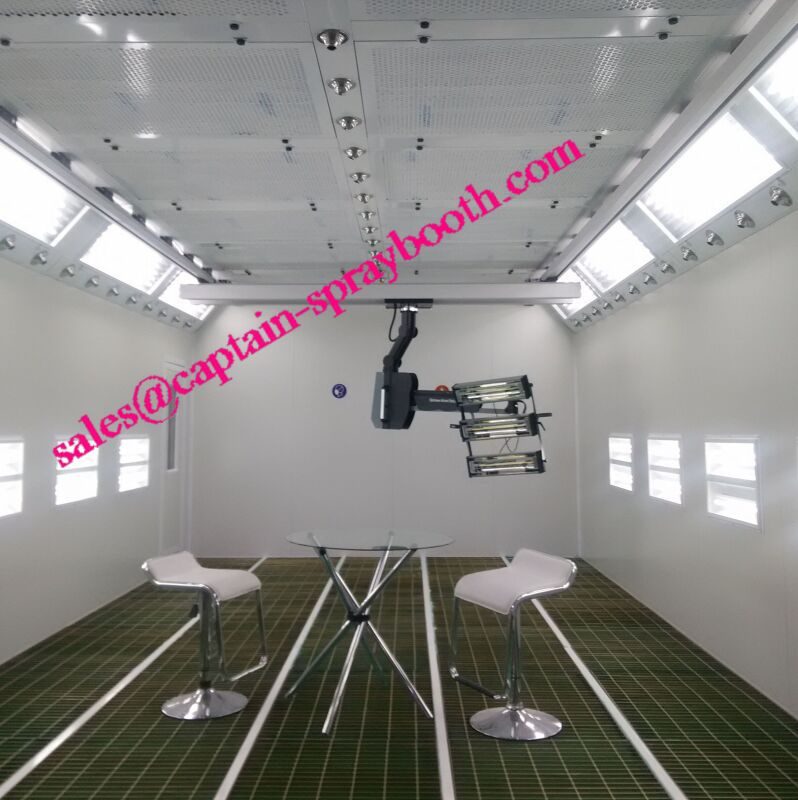

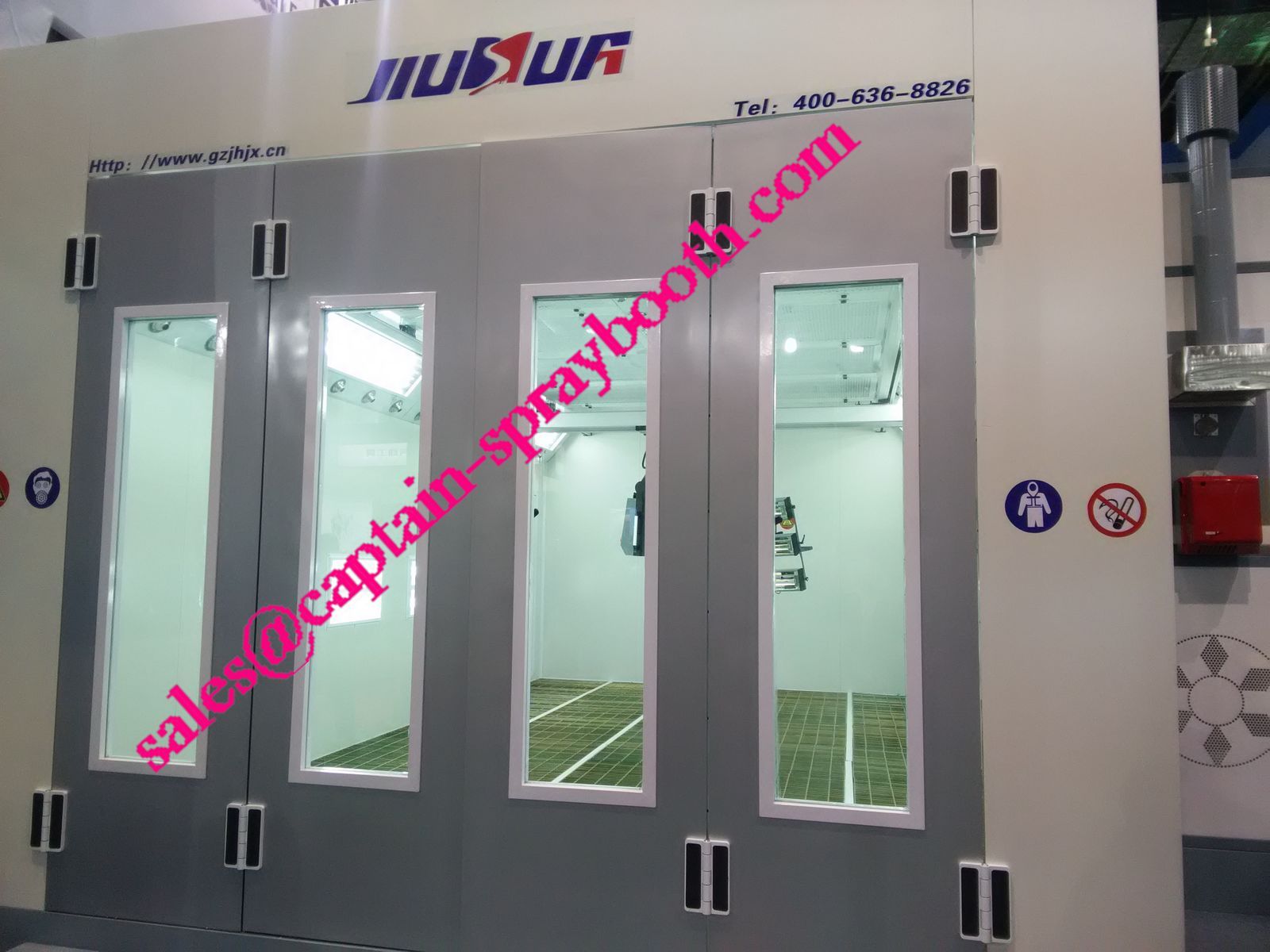

Products DescriptionThis automatic paint spraying/baking booth is used for air purification during auto paint coating operation and drying operation after painting spray. Paint spraying and drying are performed in the same booth. This paint spraying/baking booth is typical of paint spraying and baking functions, provided with automatic thermostat paint spraying, ventilation, air purification, paint mist treatment, and winter hot-air supply functions during paint spraying, and automatic heating, thermostat timing, and timed shutdown function during paint baking. The equipment is reliable in running, simple for operation, and easy for maintenance.Our Modes on Automechanika
Captain Advantages*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
| Prod Model: |
AUG-WD 1001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outside Dimension: |
7000 * 5400 * 3250(L*W*H) |
| Inside Dimension: |
6900 * 3900 * 2600mm |
| Front Door(Mm): |
2800*2500(W*H) |
| Service Door (Mm): |
1800*650(W*H) |
| Total Power: |
42kw |
| Wall Panel: |
50mm Rock-Wool Panel, 0.6 Steel |
| Basement: |
300mm Depth with Grids |
| Ramp: |
Three 2000*900mm Ramps |
| Heating Burner: |
3*9 Units High Energy Infra-Red Lamp |
| Water Based Paint Drying System: |
60 Ceiling Nozzles with 3 Centrifugal Fan |
| Certification: |
ISO |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Electric |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Substrate: |
Sandwich Panel |
| Brand: |
Captain |

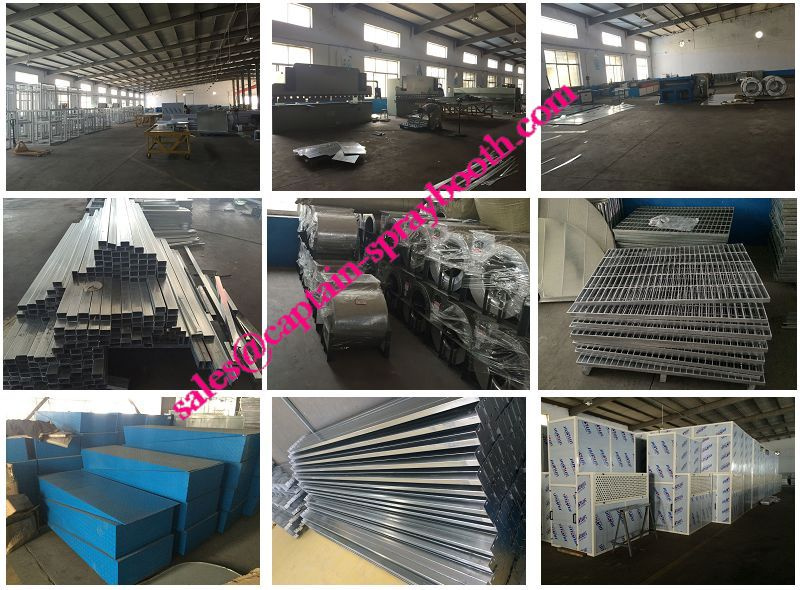

Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.

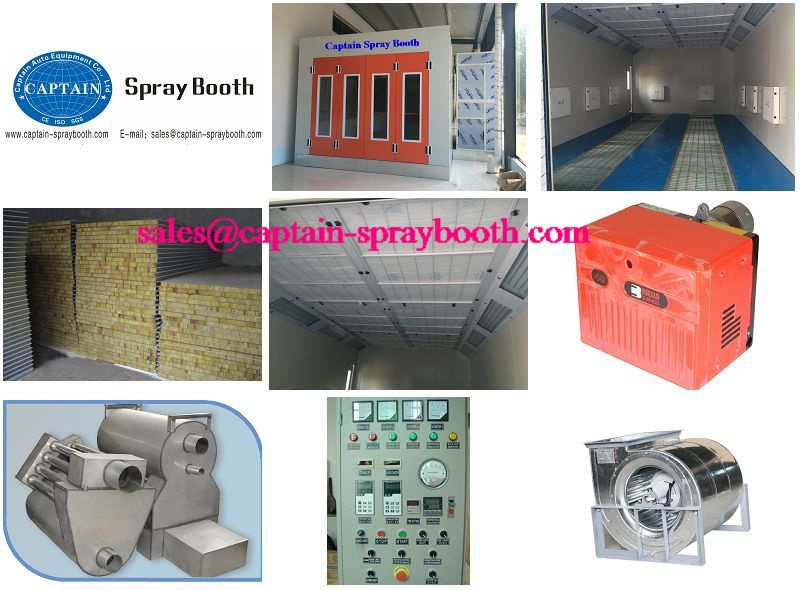

· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
