| Inside dimension | 6300×3450×2800mm(L×W×H) |
| Outside dimension | 7550×3550×2880mm(L×W×H) |
| Basement & Floor | Without basement |
| Ceiling System | Dimension:6400×3550×80mm (L×W×H), roof frame made by 40×80 quadrate steel, back side of roof made by air-proof seal plate. |
| Generator Setting | Back exhaust air,with quadrate steel frame, blue coated steel, |
| Intake & Exhaust air system | Generator dimension: 2290×1200×1800 mm (L×W×H); with 1set 5.5KW fan for exhaust air,belt-drive motor set outside,;Air capacity:16000M3/H, with electric damper control the air capacity. |
| Sealed Type | Back side set 50mm EPS heat preservation panel,other 3 sides with PVC soft curtain ,curtain color: upper part: white,
middle part:transparent,
LOWER part: blue |
| Ceiling Installation | Steel rope hanging or steel pole supporting the roof(Option). |
| Filtering System | Pre-filter pocket,floor filter(fibreglass). |
| Lighting System | Not supply |
| Control System | Control the operation of fan and electric damper |
| Voltage frequency | As request |
| Total Power | 6KW |

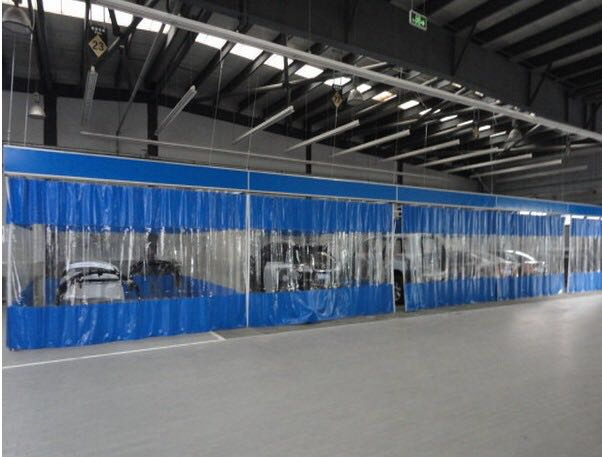

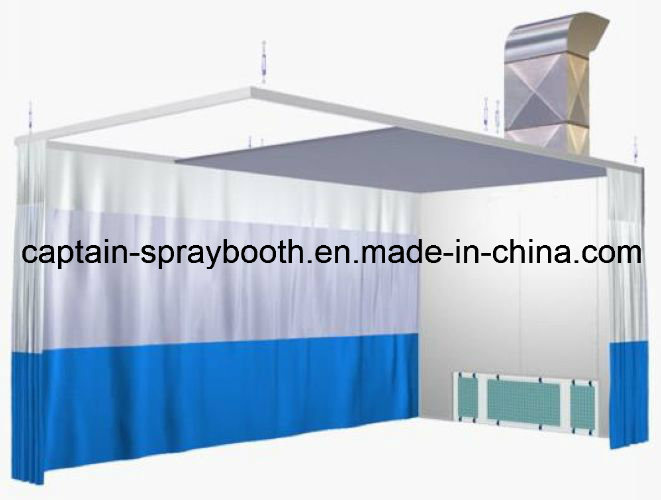

A. Prep stations make it possible for users to prep and perform minor paint work in one area without moving the vehicle.
B. Prep stations speed up the drying process and improve the overall quality of your finished product.
C. Two airflow choice, above ground exhaust box and pit style downdraft, allow easy integration into new or existing body shop layouts.
D. Optional heat units are available for high production needs.
Standard Prep Stations optional
L Semi-Downdraft or Pit-Style Downdraft or Full Downdraft
L With or without overhead plenum
L With or without heater & intake system
L Free-standing with structural steel support or suspended from the shop ceiling
Optional
L Cupboards in the rear of Prep Stations to store painting materials and equipments
L Roll-Up Curtains(motorized controls/manual operation)
Other features
L Overspray and dust control by 95% filter efficiency
L PHILIPS lamps, BELIMO damper and RIELLO burner
L Main electric components are CE listed
L All hardware, fasteners, sealants
L 24 months warranty
L Delivery time of standard prep station can reach 10 business days
L Bubble film packaging for sea transportation in bulk, special steel tray packages are accepted
