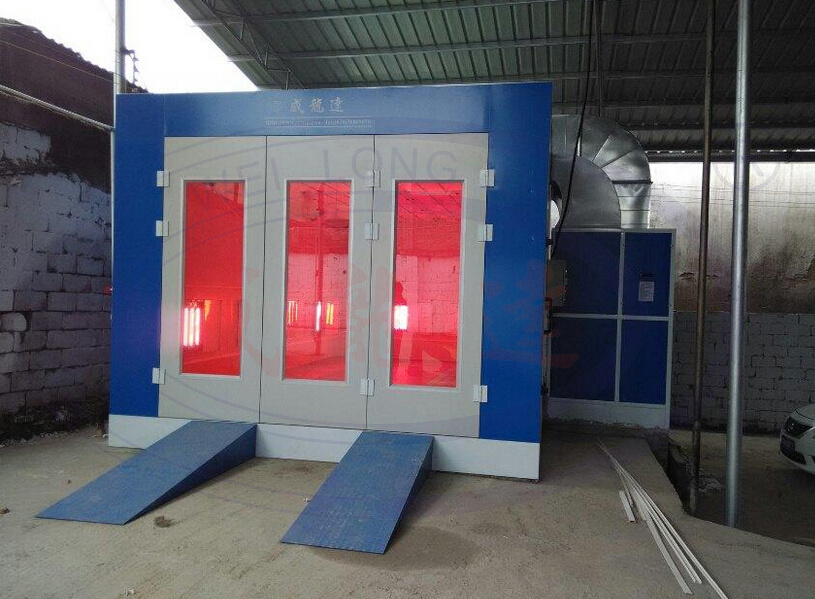

Spray Paint Booth Wld6100 with Infrared Lamp Heating System

Name: Spray Paint Booth Wld6100 with Infrared Lamp Heating System
Brand: ibuyautoparts.com
SKU: 783226085
Availability: InStock
Rating: 4.7 (47 reviews)

Price:	US $ 7000-20000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

1. welcome to visit our factory
2. professional spray booth manufacturer
3. more than 15 years experience.
4.famous for high quality with competitive price

Economic Type Spray Booth WLD6100

External Size	L7000×W5450×H3250(mm)	Air Flow	24000m³/h
Internal Size	L6900×W3900×H2600(mm)	Air Speed	0.3~0.5m/s
Main Door Size	W3000×H2600(mm)	Fuel Consumption	4~5kg/vehicle
Total Power	10KW	Application	Saloon Car/Jeep/Wooden/Furniture
Wallboard	50mm EPS, foam density is 14kg/m³. 0.326mm colorful steel skin board with hot dip galvanizing, life-span can reach 20 years without rusting. It keeps a high insulation performance with a low weight.
Basement	Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plated, 2pcs of ramps.
Door	3 folders of front door, made of 0.8mm colorful steel skin board, with aluminum view window, size: W3000×H2600(mm). 1pc of service door, size: W800×H2000 (mm).
Fan	2×4KW centrifugal intake fans, introduced from Siemens technology, supply large air flow to the working environment at low noise.
Air Pipe	Made of galvanized steel sheet, consist of 4pcs of straight pipes 7507501000 and 1pc of elbow.
Air Purification	Dual filtering structure, the primary filter can capture granules larger than 10μm. Ceiling filter captures granules larger than 5μm. The air cleanliness in the working environment can reach 98%.
Infrared Lamp Heating System	Consist of 10 sets of infrared lamp cases; each set has a cover and 3 tubes, totally 30 tubes. There is a stainless steel mirror reflector for maximum heat projection efficiency. Infrared heat radiation has a feature of high penetration, efficient, no noise, and pollution free etc. Max. temperature at 80ºC.
Control Box	Micro-soft computer control box, use high quality electronic component, the temperature and the drying time is accurately shown. Equipped with overheat, overload & short-circuited protected, safe and reliable.
Damper	Manual damper.
Ceiling Light	8 units × 3pcs=24pcs of LED lamps.

Prod Model:	WLD6100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
External Size:	7000X5430X3250mm
Internal Size:	6900X3900X2600mm
Voltage:	3phase 380V/240V/415V 50Hz/60Hz
Power:	12kw
Air Flow:	24000m3/H.
Air Speed:	0.3-0.5m/S.
Certification:	CE
Airflow Direction:	Cross-flow Type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Substrate:	EPS
Brand:	Weilongda

Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.

Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.

After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.

Please feel free to contact members of Weilongda and start a happy and win-win cooperation.

With your join, the future is better.
