Auto Painting Booth/Paint Box/Spray Booth
Price: |
US $ 4950-6000/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement Inside Dimension | 6900X4000X2600MM(LXWXH) |
Outside Dimension | 7000X5550X3250MM(LXWXH) |

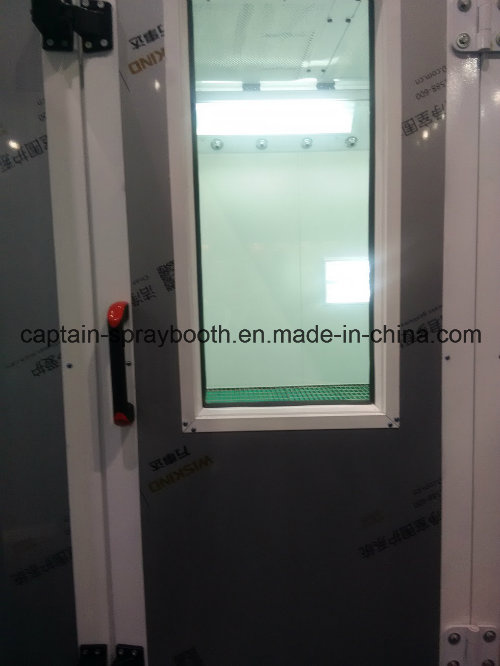

Main door | 3-fold, 2700X2500MM(WXH) with heat insulation glass window, aluminum alloy door frame |
Personal door | 1-fold, 650X1800MM(WXH) with one step. There is two sets of pressure lock which will automatically open when the pressure inside is over the limit |
Booth System | Wall panel :Rock Wool material, tongue and groove interlock construction, hickness: 50mm, 0.6mm steel plate |

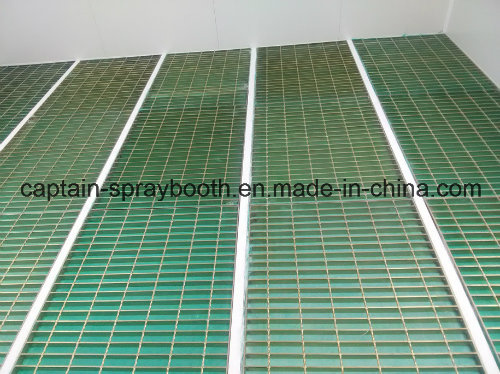

Basement and floor:complete steel assemble, 2 rows of grids, 2 rows of indented plates, galvanized. 2pcs of galvanized ramps, loading capacity of galvanized grating is 650 kg/wheel |

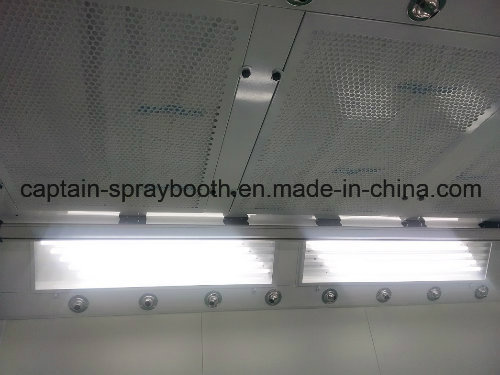

Lighting System | Ceiling light: 4Pcs X8units=32PcsX36W, OSRAM Lamp, with electronic ballasts |
Glass | All window and light cover by ovenproof toughened glass |
Generator setting type | Back upper intake air, back upper exhaust air, aluminum alloy frame, coated steel |
Ventilation System | Intake fan:1Pc turbo fan, 7.5KW motor, Siemens Motor, C.E, direct drive, air capacity:25000m3/h |
Heating system | Italian RielloG20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 4~6 min.(Gas burner as optional) |
SUS304 Stainless steel heat exchanger, anti-explosion hole for protection, highest temperature 80C, 1pc pneumatic damper from spraying to baking cycle. Reasonable structure, safe and reliable, big heat exchanging area, high heat utilization, more than 90% heat exchanging rate |
Filter system | Prefilter, high efficiency filter EU5 Fine Filters, 6pieces (ceiling filter), floor filter, exhaust active carbon filter |
Control system | Spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, time accumulator, pressure gauge, emergency stop, failure alarm, limited-temperature device, most of electrical spare part is import, C.E standard |
Total power | 12KW |
Prod Model: |
Captain-100 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Inside Dimension: |
6900X4000X2600mm(Lxwxh) |
Outside Dimension: |
7000X5550X3250mm(Lxwxh) |
Main Door: |
3-Folded, 2700X2500mm(Wxh) |
Personal Door: |
1-Fold, 650X1800mm(Wxh) |
Wall Panel: |
50mm Rock Wool, 0.6 Steel |
Basement: |
Complete Steel Assemble |
Lighting System: |
32PCS Ceiling Lights, Osram Lights |
Heating System: |
Italy Diesel Burner |
Total Power: |
12kw |
Color: |
Optional |
Certification: |
CE |
Airflow Direction: |
Cross-flow Type |
Heating Mode: |
Diesel |
Paint Mist Treatment: |
Wet-type |
Condition: |
New |
Brand: |
Captain |
