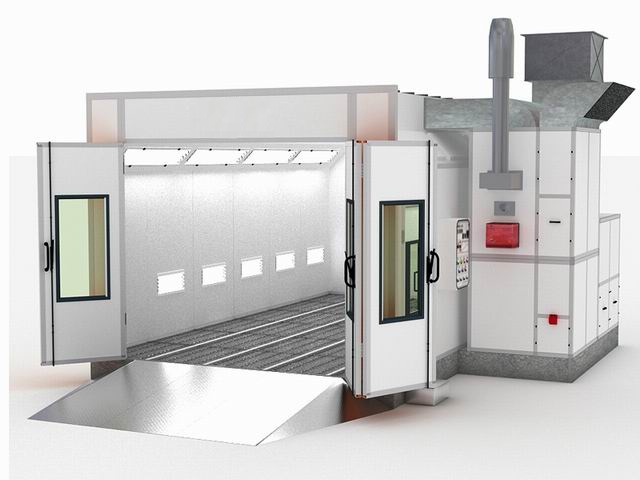

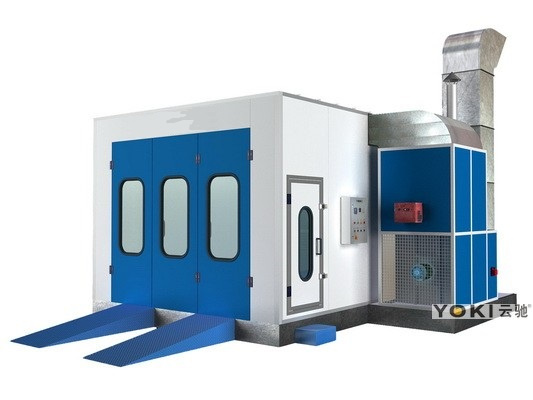

Spray Booth on Australian Standard
| Price: |
US $ 3000-11800/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Detailed Product Description| Items | Spec |

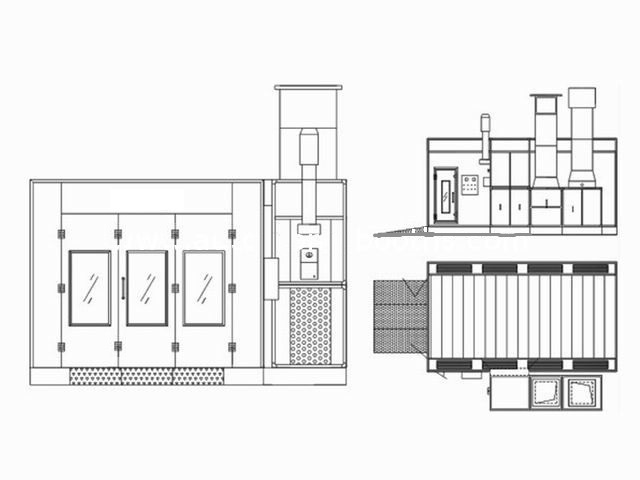

| Sketch |
|
| Items | Spec |
| Outside Dimension | 7050×5050×3500mm(L×W×H) |
| Inside Dimension | 6900×3900×2800mm(L×W×H) |
| Main Door | 3-folds: 3000×2750mm (W×H), aluminium alloy door frame |
| Personal Door | 1-fold: 800×1900mm (W×H),aluminium alloy door frame |
| Wallboard | EPS colorful steel skin panel,75mm thick,steel 0.476mm thick,tongue groove style,compound construction,anti-flame and heat-insulation, aluminium roof panel. |
| Basement & Floor | Complete steel assemble, height is 300mm, pave 3rows indented plates and 2rows grilles on the metal basement, 2Pcs ramps: 800×2000mm (W×L)/pc |
| Lighting System | Ceiling Lights: 8Units×3Pcs=24Pcs×40W, with electronic ballasts,power-coated light box.Side Lights: 6Units×3Pcs=18Pcs×36W, with electronic ballasts, vertically set,power-coated light box. |
| Generator Setting | Intake air from side back direction, quadrate steel frame, colourful coated steel plate |
| Intake Fan | 2×4 KW double-intake centrifugal fans for intake air, model YDW4.5L1, air capacity for each fan: 12500.3 /h. |
| Extract Fan | 1×5.5 KW double-intake centrifugal fan for exhaust air, model YDW4.5S, air capacity: 16000.3 /h, with manual damper for exhaust air. |
| Wind Velocity At Full Load Inside The Room(M/S) | 0.3m/s |
| Heating System | 1set Riello RG5S brand diesel oil burner, maximum heat productivity is 260,000Kcal/h, stainless steel heat exchanger, highest temperature is 80oC, electric damper executes from spraying to baking cycle . |
| Filtering System | Pre-filter,600G high efficiency filter(ceiling filter),floor filter(fiberglass filter),activated carbon filter. |
| Control Panel | Spraying, heat spraying, baking temperature, time setting, failure indicator, lighting switch |
| Filter Efficiency | ≥98% |
| Noise(db) | ≤75 |
| Colour | Blue,red,white |
| Total power(Kw) | 16KW |
Car painting, Automobile Baking, Portable Auto Spray Booths with Ceiling light Detailed Product Description
Car painting, Automobile Baking, Portable Auto Spray Booths
1.Italian Riello RG5S diesel burner
2.SUS304 Stainless steel heat exchanger
3.Anti-flame and Heat-Insulation
Turbo Fan Electrical Heat Downdraft Auto Spray Booths For Automobile Painting, Maintenance
1) For car painting and baking
2) maintains a high level of safety and performance together with top quality construction and materials
3) Various systems of environmental protection are optional for customers
4) A wide range of colors available: white, red, marine blue, gray, orange
5) Trustworthy durability of each parts
6) Good after-sales servicePackaging & DeliveryPackaging Detail:Export professional packages.Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish
Delivery Detail:To effect shipment within 7 days after deposit
Spray Booth Specifications
1.German Technology
2.spray booth professional manufacturer
3.competitive price and assure quality
4.CE approved
Sincerely hope we can get your inquiry and warmly welcome to our factory!
I'm just here waiting for you!
| Prod Model: |
CPCEY2006 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outside Dimension: |
7050X5050X3500mm(Lxwxh) |
| Inside Dimension: |
6900X3900X2800mm(Lxwxh) |
| Main Door: |
3-Folds: 3000X2750mm (Wxh) |
| Personal Door: |
1-Fold: 800X1900mm (Wxh) |
| Wallboard: |
75mm EPS Panel with 0.476 Steel |
| Lighting System: |
24PCS Ceiling Lights 18PCS Side Lights |
| Intake Fan: |
2X4kw |
| Outlet Fan: |
1X5.5kw |
| Heating System: |
Italian Riello G20 Burner |
| Total Power(Kw): |
16kw |
| Certification: |
SGS |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Captain |
