| Prod Model: |
PC-EC06-3S |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
| Configuration Level: |
Economic Type Spray Booth |
| Warranty Time: |
1 Year |
| Service Time: |
Lifelong Maintenance |
| Color: |
White, Blue, Red or Orange |
| Exhaust Fan Air Volume: |
15000m3/H |
| Inside Unloaded Air Speed: |
0.2m/S |
| Max Working Temperature: |
80 Degree Centigrade |
| Noise: |
Less Than 80dB |
| Tsp (Mg/ M3): |
Less Than 1.4 |
| The Voltage Require: |
380V/3p, 220V/3p, 220V/1p |
| Certification: |
CE |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Auto Paint Booth |
| Brand: |
Paintcolor |
| Airflow Direction: |
Semi Downdraft Airflow Way |
Product Description

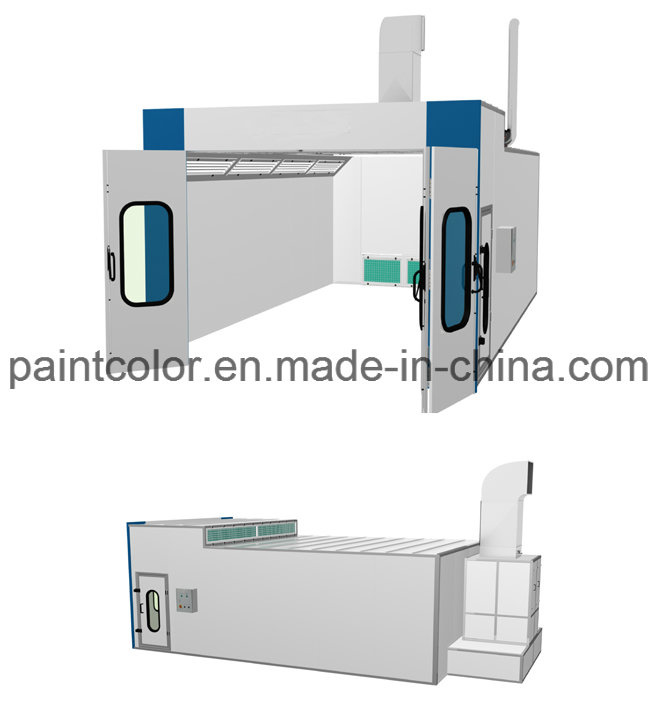

Paintcolor economical type Semi down draft car paint booth
Model: PC-EC06-3S
Specification in details:
Outside dimension:7000×5560×3430mm (L×W×H); Inside dimension: 6900×4000×2650mm (L×W×H);
Working door dimension: 650×1800mm (W×H)
Front door dimension: 3000×2600mm (W×H);
Cabin system:
1) Wall panel: 50mm thickness flame-resistant and heat-preserving EPS panel; 0.4mm thickness double-face colored steel sheet;
Roof panel: 0.8mm galvanized steel sheet;
2) Basement: without, exhaust from back wall;
Lighting system: ≥800Lux;
Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W; Philips lamp;
Glass: all glass is clear tempered glass.
Generator: back side exhaust air; quadrate steel frame, galvanized steel sheet without powder coated;
Air purification system: Primary filter, half ceiling filter;
Air exhaust system:
| Exhaust Ventilator | Model: YDW-5.6S |
| Blower Capacity: 15000m3/h |
| Pressure: 810Pa |
| Rolling Speed: 900rpm |
| Power: 5.5kw |
| Quantity: 1 set |
Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, emergency stop, temperature controller, temperature limit controller, emergency stop, breakdown alarm;
Total power: 16KW
Voltage require: 380V, 3P, 50Hz
EC series Paintcolor spray booth is our new batch production to meet different area customer groups. Its feature is the lower price, the more simple installation work and the more effective container space utilization. One 40' container would be full in 4 sets such spray booth. To get the latest price, please contact me by:
MB: 86-(0) 183 1681 9815 .
